Sony ss lb 355 service manual

This is the 2 pages manual for sony ss lb 355 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
sony ss lb 355 service manual

Extracted text from sony ss lb 355 service manual (Ocr-read)

Page 1

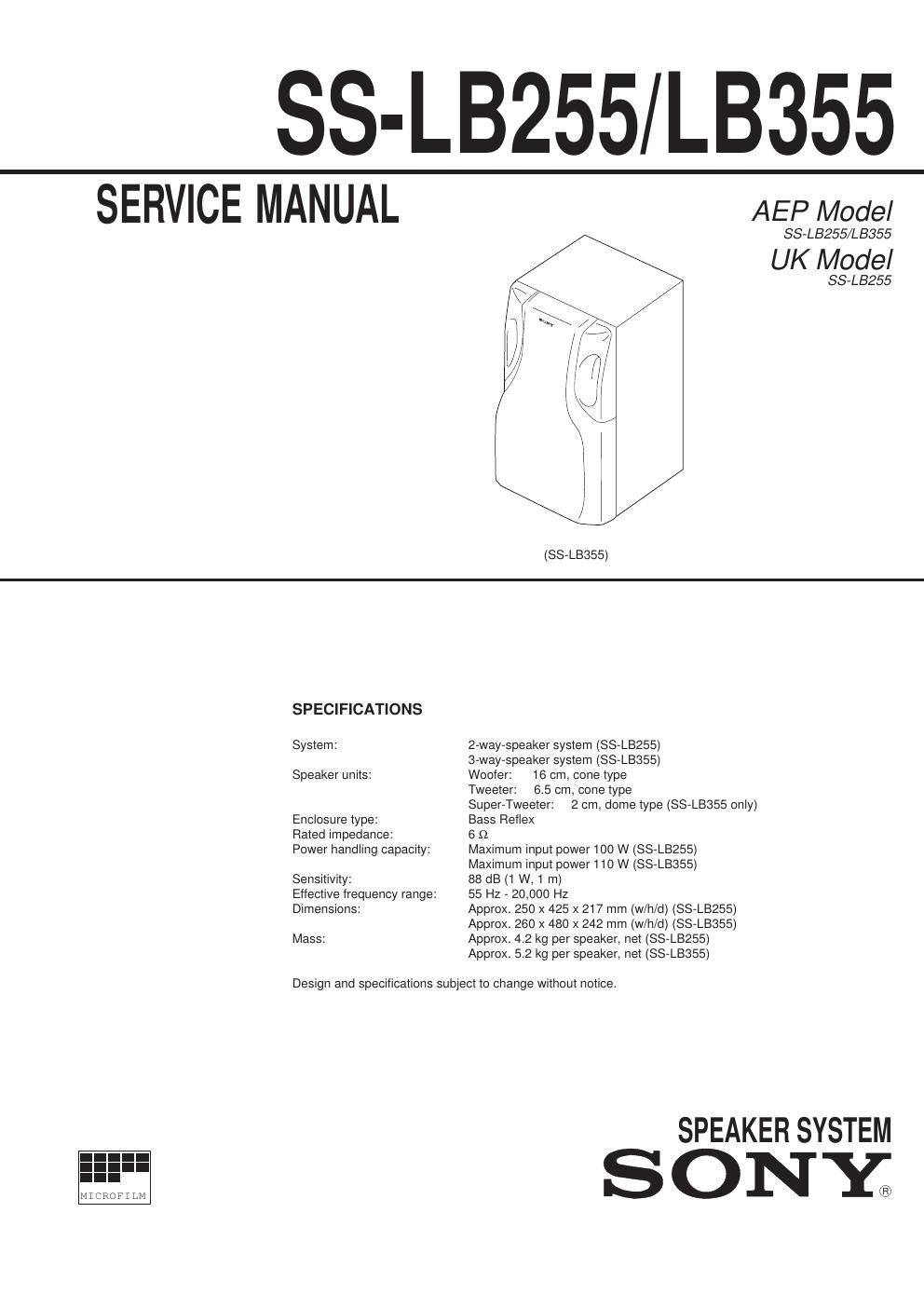

- 2 - SS-LB255/LB355 1. EXPLODED VIEW AND PARTS LIST NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark *4-981-242-01 CARTON (SS-LB255) *4-981-250-01 CARTON (SS-LB355) *4-981-240-01 CUSHION (T) (SS-LB255) *4-981-248-01 CUSHION (T) (SS-LB355) *4-981-241-01 CUSHION (B) (SS-LB255) *4-981-249-01 CUSHION (B) (SS-LB355) 3-810-890-11 INSTRUCTION MANUAL (SS-LB255) 3-810-891-11 INSTRUCTION MANUAL (SS-LB355) Ref. No. Part No. Description Remark 1 X-4946-992-1 SPEAKER CABINET ASSY (SS-LB255) 1 X-4946-994-1 SPEAKER CABINET ASSY (SS-LB355) 2 X-4946-993-1 GRILLE FRAME ASSY (SS-LB255) 2 X-4946-995-1 GRILLE FRAME ASSY (SS-LB355) 3 4-981-238-01 DUCT (L) 4 4-981-239-01 DUCT (R) 5 4-960-363-01 SCREW +P 3.5 X 16 SP1 X-4947-085-1 SPEAKER (2Way) ASSY (SS-LB255) SP1 X-4947-086-1 SPEAKER (3Way) ASSY (SS-LB355) 9-960-693-11 English 96D7554-1 Printed in Germany © 1996.4 Published by Home A&V Products Div. Quality Engineering Dept. SS-LB355 1 2 3 4 SP1 5 Sony Corporation Consumer A&V Products Company Home A&V Products Div.
