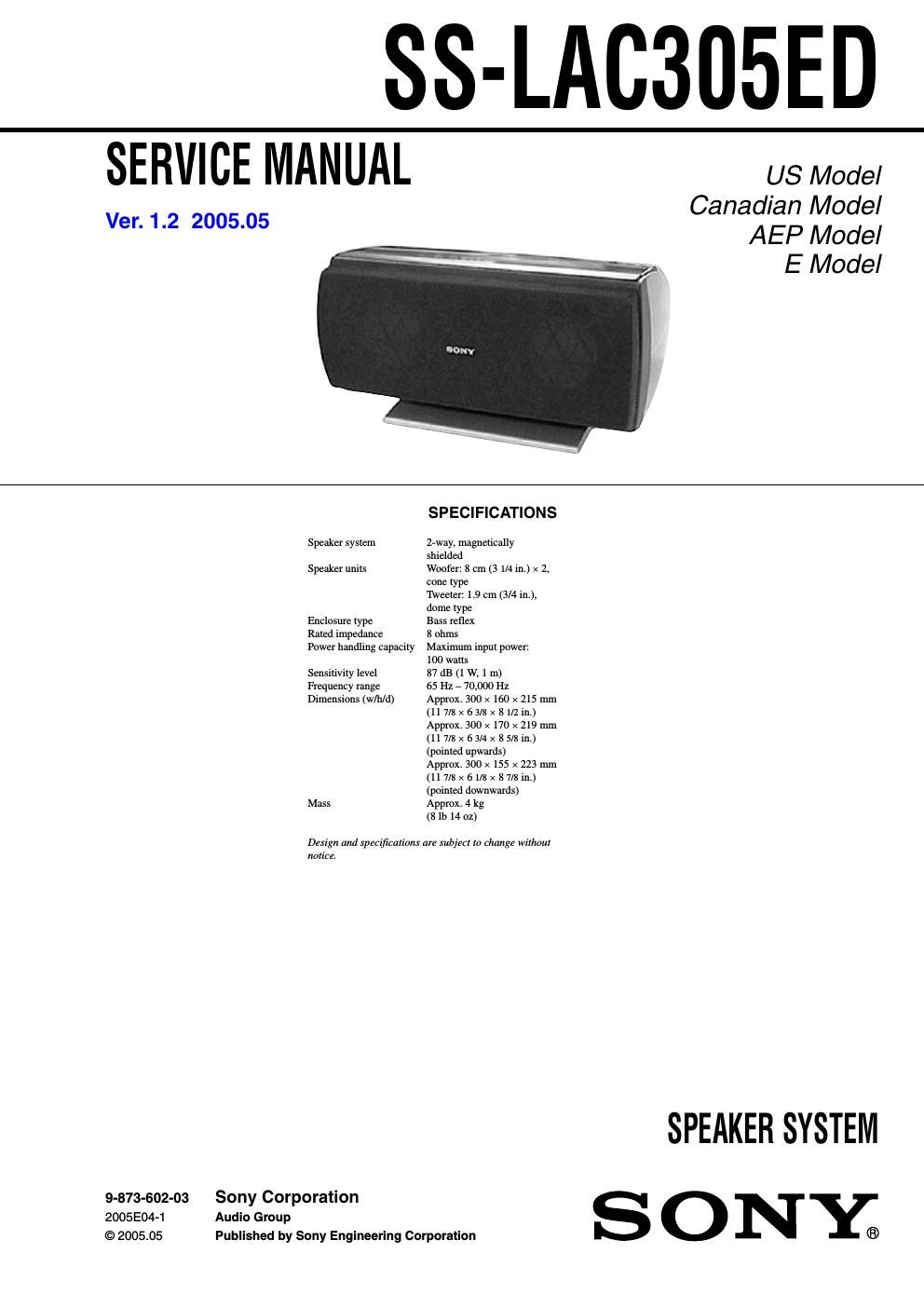

Sony ss lac 305 service manual
This is the 4 pages manual for sony ss lac 305 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss lac 305 service manual (Ocr-read)
Page 1
2 SS-LAC305ED EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: - Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinets Color RR 1. FRONT PANEL SECTION 1 not supplied not supplied not supplied SP1 SP2 SP3 not supplied not supplied 23 3 45 55 5 56 10 10 7 7 78 9 1 4-238-959-01 DUCT 2 X-4954-541-1 FRAME ASSY, GRILLE (GRAY)...(SILVER,WHITE,PINK,BLUE) 2 X-4954-767-1 FRAME ASSY, GRILLE (BLACK)...(BLACK) 3 4-231-872-01 SCREW, ORNAMENTAL 4 4-238-954-01 PANEL, FRONT (SILVER) 4 4-238-954-11 PANEL, FRONT (WHITE) 4 4-238-954-21 PANEL, FRONT (PINK) 4 4-238-954-31 PANEL, FRONT (BLUE) 4 4-238-954-41 PANEL, FRONT (BLACK) 5 7-685-660-79 SCREW +P 4X10 TYPE2 NON-SLIT 6 1-761-521-11 MAIN BOARD 7 4-874-614-81 SCREW 8 7-682-662-09 SCREW +PS 4X10 9 4-239-575-01 CAP 10 7-682-149-04 SCREW +P 3X10 SP1 1-825-045-11 SPEAKER (1.9cm) (TWEETER) SP2 1-825-046-11 SPEAKER (8cm) (WOOFER) Ver. 1.2
