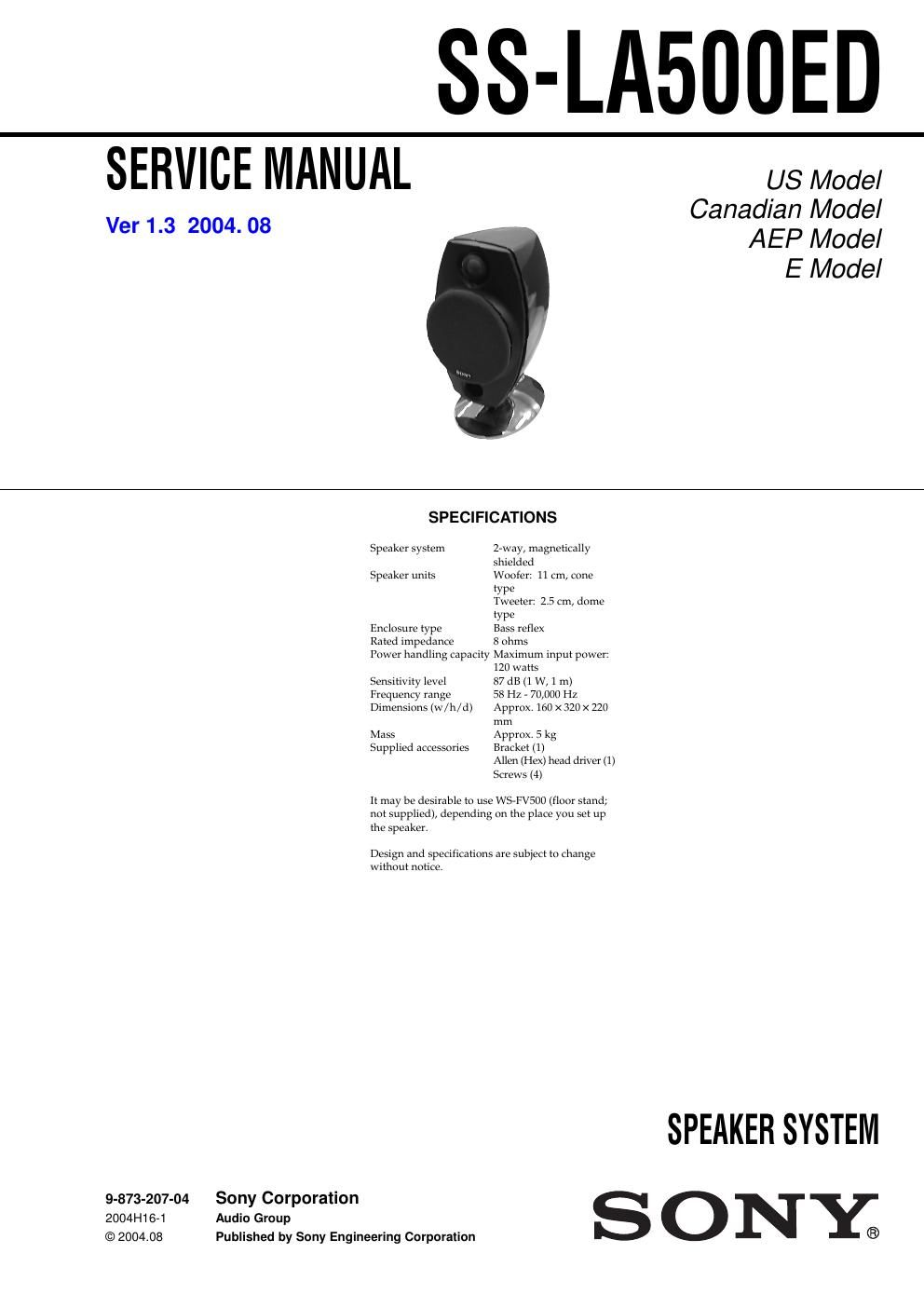

Sony ss la 500 ed service manual
This is the 4 pages manual for sony ss la 500 ed service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss la 500 ed service manual (Ocr-read)
Page 1
2 SS-LA500ED EXPLODED VIEW AND PARTS LIST NOTE: -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not supplied. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 A-4735-427-A FRAME ASSY, GRILLE (GRAY)...(BLACK, VIOLET, RED) 1 A-4735-430-A FRAME ASSY, GRILLE (WHITE)...(ORANGE, BLUE, WHITE,SILVER) 2 4-220-784-01 SCREW, ORNAMENTAL 3 4-235-834-01 PANEL, FRONT (BLACK)...(BLACK, RED) 3 4-235-834-11 PANEL, FRONT (BROWN)...(VIOLET) 3 4-235-834-21 PANEL, FRONT (SILVER)...(ORANGE, BLUE,SILVER) 3 4-235-834-31 PANEL, FRONT (WHITE)...(WHITE) 4 1-761-440-11 MOUNTED PC BOARD 5 4-235-833-01 CABINET, SPEAKER (BLACK) 5 4-235-833-11 CABINET, SPEAKER (VIOLET) 5 4-235-833-21 CABINET, SPEAKER (ORANGE) 5 4-235-833-31 CABINET, SPEAKER (BLUE) 5 4-235-833-41 CABINET, SPEAKER (WHITE) 5 4-235-833-51 CABINET, SPEAKER (SILVER) 5 4-235-833-61 CABINET, SPEAKER (RED) 6 1-694-849-11 TERMINAL (RED) 7 1-694-849-21 TERMINAL (BLACK) 9 4-235-837-01 COVER (BLACK) 9 4-235-837-11 COVER (VIOLET) 9 4-235-837-21 COVER (ORANGE) 9 4-235-837-31 COVER (BLUE) 9 4-235-837-41 COVER (WHITE) 9 4-235-837-51 COVER (SILVER) 9 4-235-837-61 COVER (RED) 10 4-235-836-01 FLANGE 11 4-222-421-01 SCREW (5X18), HEXAGON SOCKET 12 4-235-838-01 POLE 13 4-235-845-01 CAP (C) 14 4-235-839-01 BASE 15 4-236-571-01 SPACER 16 4-985-287-01 WASHER, TOOTH 17 4-236-575-01 NUT, HEXAGON 18 4-235-844-01 CAP (B) 19 4-235-843-01 CAP (A) 20 1-544-917-11 SPEAKER (2.5cm) 21 1-544-918-11 SPEAKER (11cm) (SILVER)...(BLACK, VIOLET, RED) 21 1-544-918-21 SPEAKER (11cm) (BLACK)...(ORANGE, BLUE, WHITE,SILVER) 22 4-235-842-01 DUCT 23 4-236-572-01 PLATE #1 7-682-580-04 SCREW +P 5X25 #2 7-682-163-01 SCREW +P 4X12 #3 7-682-589-04 SCREW +P 6X14 1 2 2 3 19 22 18 13 6 7 12 14 4 15 15 15 16 17 21 205 23 10 11 9 including Ref. No.7 including Ref. No.6 not supplied notsupplied notsupplied not supplie d notsupplied not supplied #1 #2 #2 #3 Ver 1.2
Page 2
3 SS-LA500ED Ver 1.3 ACCESSORIES ************ 4-236-372-11 MANUAL,INSTRUCTION 4-236-768-01 BRACKET 4-237-681-01 SCREW (M6X25), SOCKET PLATE * 4-985-459-01 WRENCH, HEXAGON SHAFT (ALLEN HEX HEAD DRIVER) Ref. No. Part No. Description Remarks
