Extracted text from sony ss la 300 ed service manual (Ocr-read)

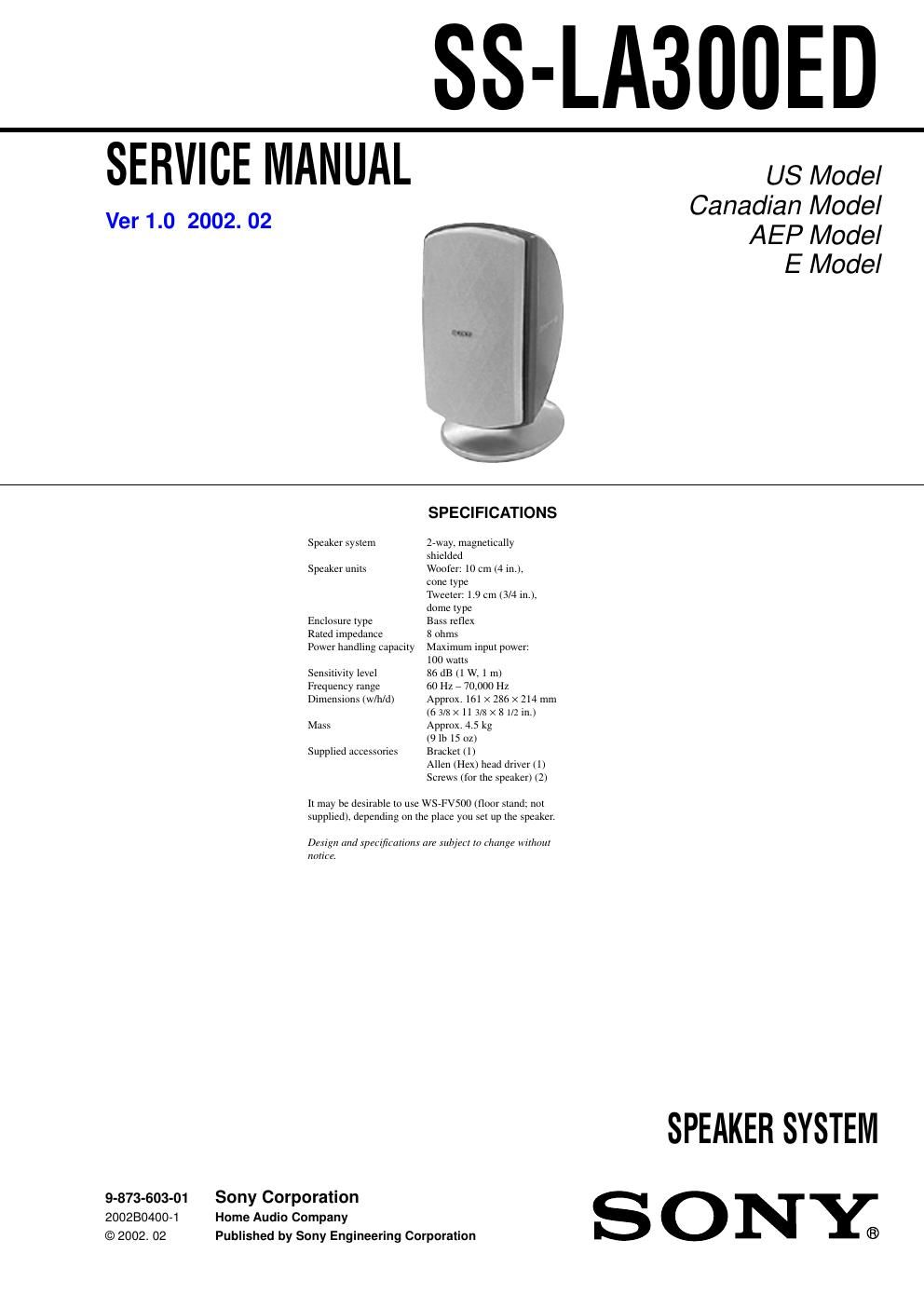

Page 1
2 SS-LA300ED EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: - The mechanical parts with no reference number in the exploded views are not supplied. - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.- Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinets ColorRR 1. FRONT PANEL SECTION 1 23 3456 7 7 7 78910 11 5 5 SP1 SP2not supplied not supplied not supplied not supplied zA zA (including zA, vB) (including zA, zB) zBvB 1 4-238-950-01 DUCT 2 X-4954-540-1 FRAME ASSY, GRILLE 3 4-231-872-01 SCREW, ORNAMENTAL 4 4-238-945-01 PANEL, FRONT (SILVER) 4 4-238-945-11 PANEL, FRONT (WHITE) 4 4-238-945-21 PANEL, FRONT (PINK) 5 7-685-660-79 SCREW +P 4X10 TYPE2 NON-SLIT 6 1-761-520-11 MAIN BOARD7 4-874-614-81 SCREW 8 7-682-162-01 SCREW +P 4X10 9 4-239-575-01 CAP 10 1-694-849-11 TERMINAL (+) (RED) 11 1-694-849-21 TERMINAL (–) (BLACK) SP1 1-825-044-11 SPEAKER (10cm) (WOOFER) SP2 1-825-045-11 SPEAKER (1.9cm) (TWEETER)
Page 2
3 SS-LA300ED 2. BASE SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-238-949-01 BASE 52 4-239-576-01 COVER, BASE 53 4-238-944-01 CABINET, SPEAKER (SILVER) 53 4-238-944-11 CABINET, SPEAKER (WHITE) 53 4-238-944-21 CABINET, SPEAKER (PINK) 54 7-683-436-04 BOLT, HEXAGON SOCKET 5X12 55 4-237-676-01 FOOT 56 4-236-575-01 NUT, HEXAGON 57 7-682-588-09 +B 6X12 58 4-985-287-01 WASHER, TOOTH 59 4-239-578-01 BRACKET 60 7-682-161-09 SCREW +P 4X8ACCESSORIES ************ 4-239-723-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, GERMAN,SPANISH,DUTCH,SWEDISH, ITALIAN,PORTUGUESE,CZECH, HUNGARIAN,RUSSIAN,SLOVAKIAN, FINNISH,DANISH,GREEK) 4-239-577-01 BRACKET (A) *4-985-459-01 WRENCH, HEXAGON SHAFT 7-623-212-22 SW5, TYPE2 7-683-434-04 BOLT, HEXAGON SOCKET 5X8 not supplied not supplied 51 525354 55 55 57 58 56 59 60
