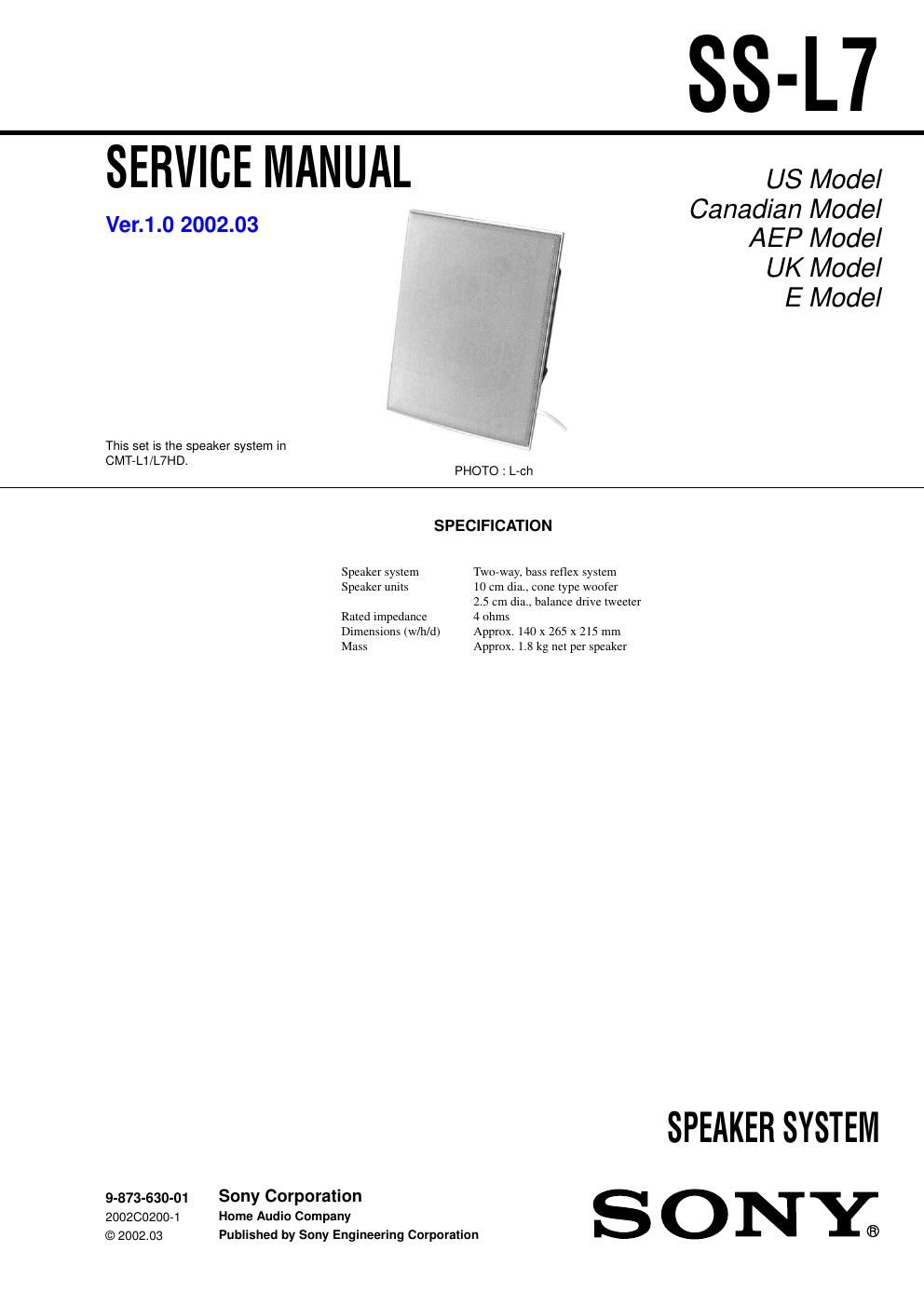

Sony ss l 7 service manual
This is the 4 pages manual for sony ss l 7 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss l 7 service manual (Ocr-read)
Page 1
2 Ref. No. Part No. Description Remark ––––––– ––––––– ––––––––– –––––– EXPLODED VIEW AND PARTS LIST SS-L7 L-ch SP2 1232 22 32 7 6 5 4 8 SP1 NOTE: - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. 1 A-4735-749-B FRAME ASSY, GRILLE 2 4-874-614-11 SCREW (1) (3.5X14), TAPPING 3 4-912-253-01 CATCHER 4 A-4735-746-A PANEL (L) ASSY, FRONT 4 A-4735-747-A PANEL (R) ASSY, FRONT 5 1-761-533-11 MOUNTED PC BOARD 6 4-986-971-01 SCREW (3.5) 7 A-4735-744-A CABINET (L) ASSY, SPEAKER 7 A-4735-745-A CABINET (R) ASSY, SPEAKER 8 9-831-273-36 WIRE KIT SP1 1-825-066-11 SPEAKER (2.5cm) SP2 1-825-065-11 SPEAKER (10cm)
