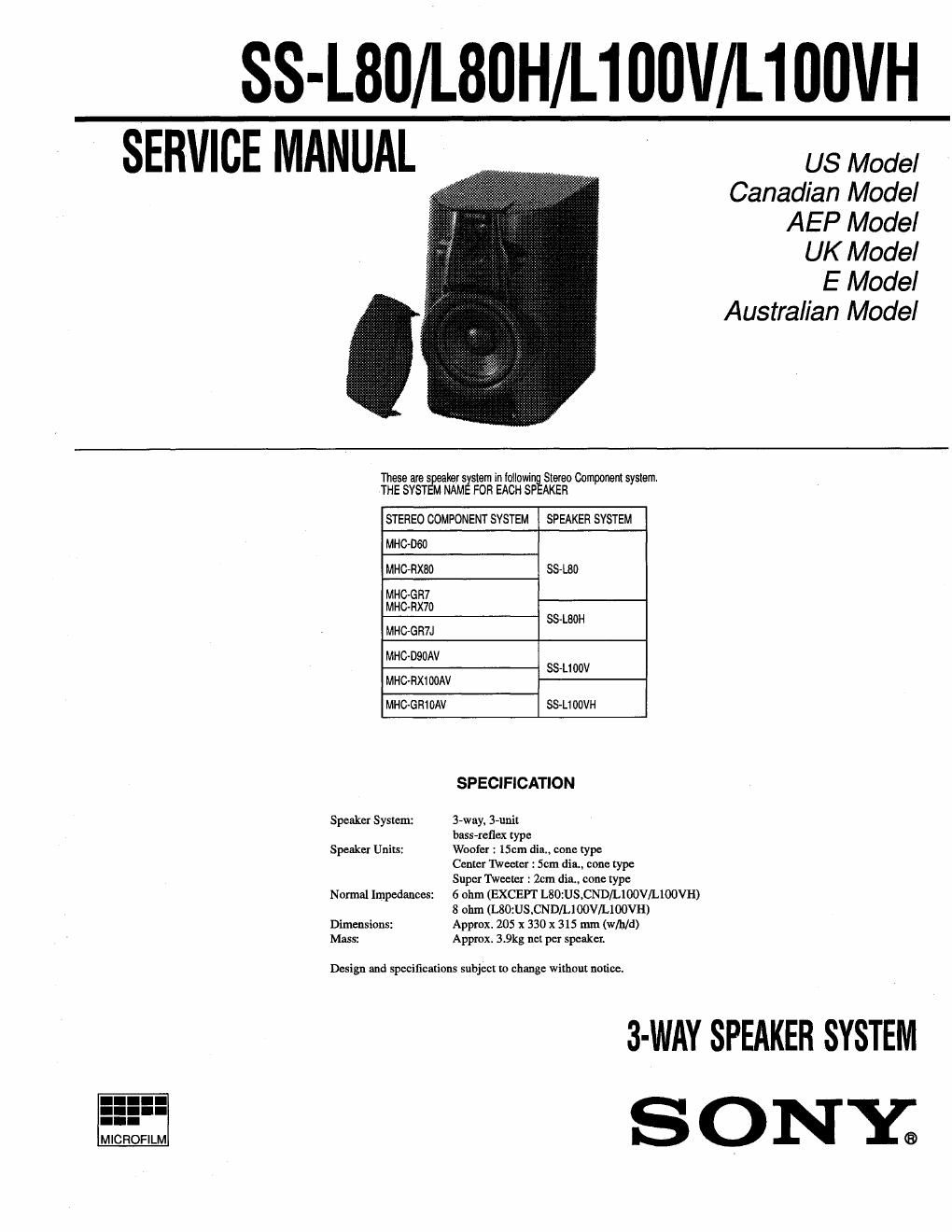

Sony ss l 100 vh service manual

Page 2

EXPLODED VIEW AND PARTS LIST

NOTE:

- -XX, -X menu standardized puns. so diey may
have some difference from the orignnl one

- The construction parts of In Assembled part
are indicated with a collation number in the re-
mark column.

- Itemsmurknd " urenmstoried sincethey are
seldom required for routine service. Some delny
should be anticipated when ordering these items.

. The mechanic-.1 pans with no reference number
in the exploded views are not supplied.

- Abbreviation
G : German
AED : Finland.Norway,Denruark.Swedeu

Rafi No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-991-133-01 SCREW (4) (3.5X18), +BVTP * 8 4-988-096-01 PACKING '
2 4-991-132-01 SCREW (4) (3.5X12), +BVTP SP1 1-505-520-11 SPEAKER (150M) (L100V/L100VH)
' 3 4-963-075-01 CATCHER SP1 1-505-595-11 SPEAKER (150M) (LEO/LBOH)
4 X4947-972-1 FRAME ASSV, GRILLE (EXCEPT L80H/L100VH) SP2 1505-51841 SPEAKER (50M)
4 X-494B-156-1 FRAME ASSY. GRILLE (L80H/L100VH) SP3 1-505-563-11 SPEAKER (20M)
1 tflififiilitfi Ink!!! til
5 X-494ii-152-1 PANEL ASSY, FRONT (L60H/L100VH)
5 X4947-971-1 PANEL ASSV, FRONT (EXCEPT LBCH/L100VH) ACCESSORIES & PACKING MATERIALS
3 9.911.340. PACKING unnuutttnuntuuuuw
* 7V A4384-384-A CABINET ASSY, SPEAKER
(LEO/L1OOV:EXCEPT GAED) 1-769-306-11 CORD, SPEAKER (LED/LBOH)
7 A-ASB4-385-A CABINET ASSY, SPEAKER (LBO:G,AED) 1-769-317-11 CORD. SPEAKER (L100VlL100VH)
* 4-989-373-01 CUSHION (L80/L80H)
* 7 A4384-43D-A CABINET ASSY, SPEAKER (L80H/L100VH) " 4-989-390-01 CUSHION (L100V/L100VH)
7 A-4384-435-A CABINET ASSY. SPEAKER (L100V:G,AED)
Sony Corporation P mad I muggy:
n n n .
9-960-854-1 1 Home A&V Products Company mm by SENSE. 5m
_ 2 _ Englnslrlng Dopl.(shlblura)
