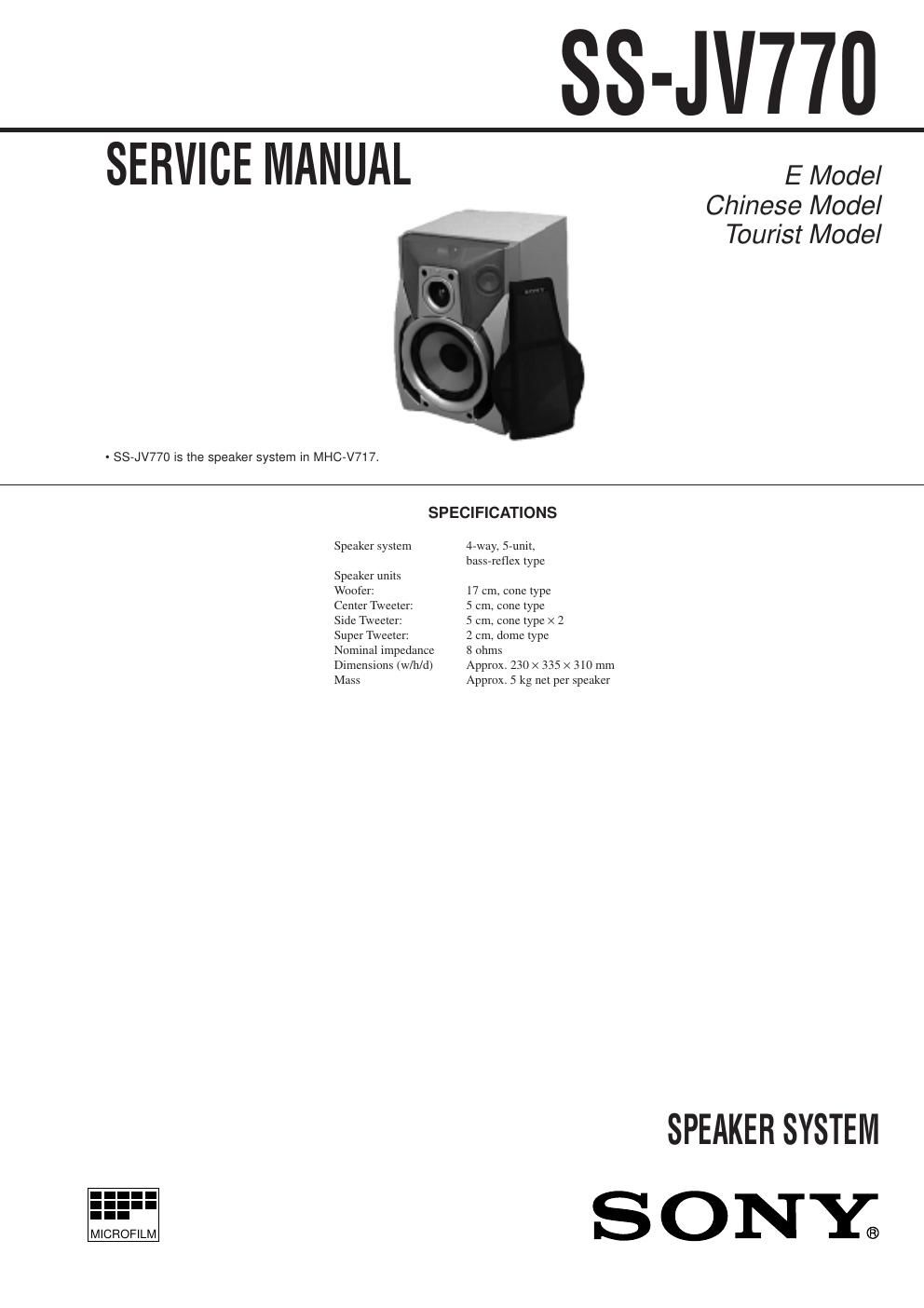

Sony ss jv 770 service manual

Page 1

Ð 2 Ð Sony Corporation Home A&V Products Company 9-922-872-11 NOTE: ¥ -XX and -X mean standardized parts, so they may have some difference from the original one. ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ The mechanical parts with no reference num- ber in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4949-420-1 FRAME ASSY, GRILLE 2 X-4949-419-1 PANEL ASSY, FRONT *3 4-963-075-01 CATCHER 4 4-874-614-21 SCREW (4) (3.5X14), TAPPING 5 4-997-169-01 PACKING 6 4-942-029-01 PACKING *7 A-4384-932-A CABINET ASSY, SPEAKER 8 4-997-067-01 PACKING SP1 1-505-859-11 SPEAKER (16cm) (EXCEPT Thai) SP1 1-505-896-11 SPEAKER (16cm) (Thai)SP2 1-505-518-11 SPEAKER (5cm) (Thai) SP2 1-505-860-11 SPEAKER (5cm) (EXCEPT Thai) SP3 1-505-510-11 SPEAKER (5cm) (EXCEPT Thai) SP3 1-505-583-11 SPEAKER (5cm) (Thai) SP4 1-505-841-11 SPEAKER (2cm) ACCESSORIES & PACKING MATERIALS ******************************** 1-769-306-11 CORD, SPEAKER 4-210-254-01 CUSHION (FOOT) EXPLODED VIEW AND PARTS LIST 98F051625-1D Printed in Japan © 1998. 6 Published by Quality Assurance Dept. (Shibaura) 2 3 3445 4 1 4 8 8 SP1 not supplied SP3 SP2 SP3 SP4 6 7
