Sony ss j 50 service manual

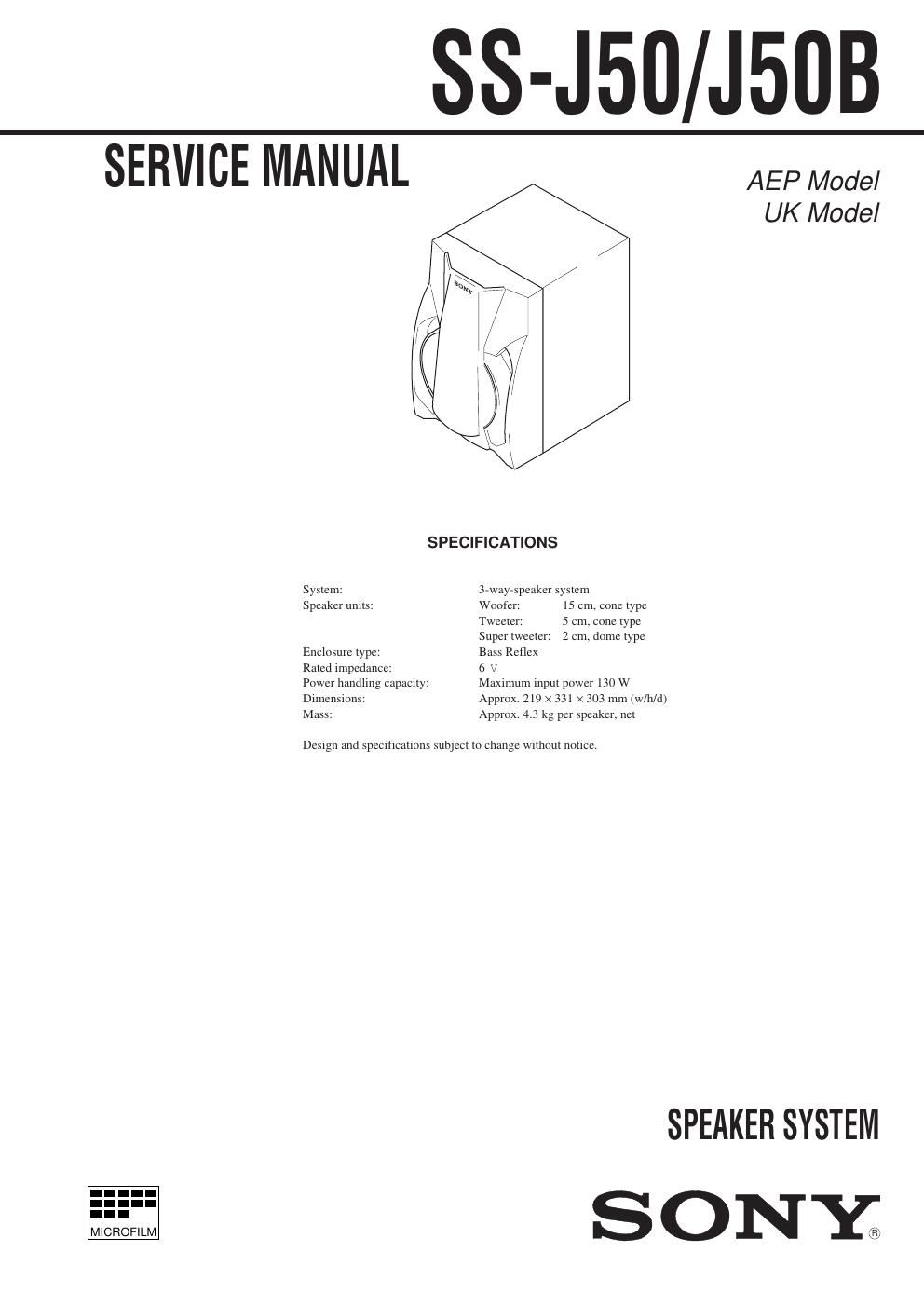

Page 1

SS-J50/J50B Ñ 2 Ñ Sony Corporation Home A&V Products Company 98F7549-1 Printed in Germany © 1998. 6 Published by Quality Assurance Dept. (Shibaura) 9-922-892-11 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SP1 1-505-637-12 SPEAKER (5cm) SP2 1-505-617-11 SPEAKER (2cm) SP3 1-505-909-11 SPEAKER (15cm) 1-777-149-11 CORD, SPEAKER 1 X-4949-591-1 FRAME ASSY, GRILLE 2 4-998-367-01 PANEL FRONT (J50) 4-998-367-11 PANEL FRONT (J50B) 3 4-990-505-01 CATCHER 4 4-998-362-01 PACKING (A) 5 4-993-215-01 SCREW +P 3.5 x 16 6 4-993-217-01 PACKING * 7 X-4949-590-1 CABINET ASSY, SPEAKER (J50) X-4950-185-1 CABINET ASSY, SPEAKER (J50B) 8 1-694-299-11 TERMINAL BOARD NOTE:¥Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥The mechanical parts with no reference number in the exploded views are not supplied. 78 5 4 5 5 4 6 2 3 3 1 SP2 SP1 SP3 not supplied
