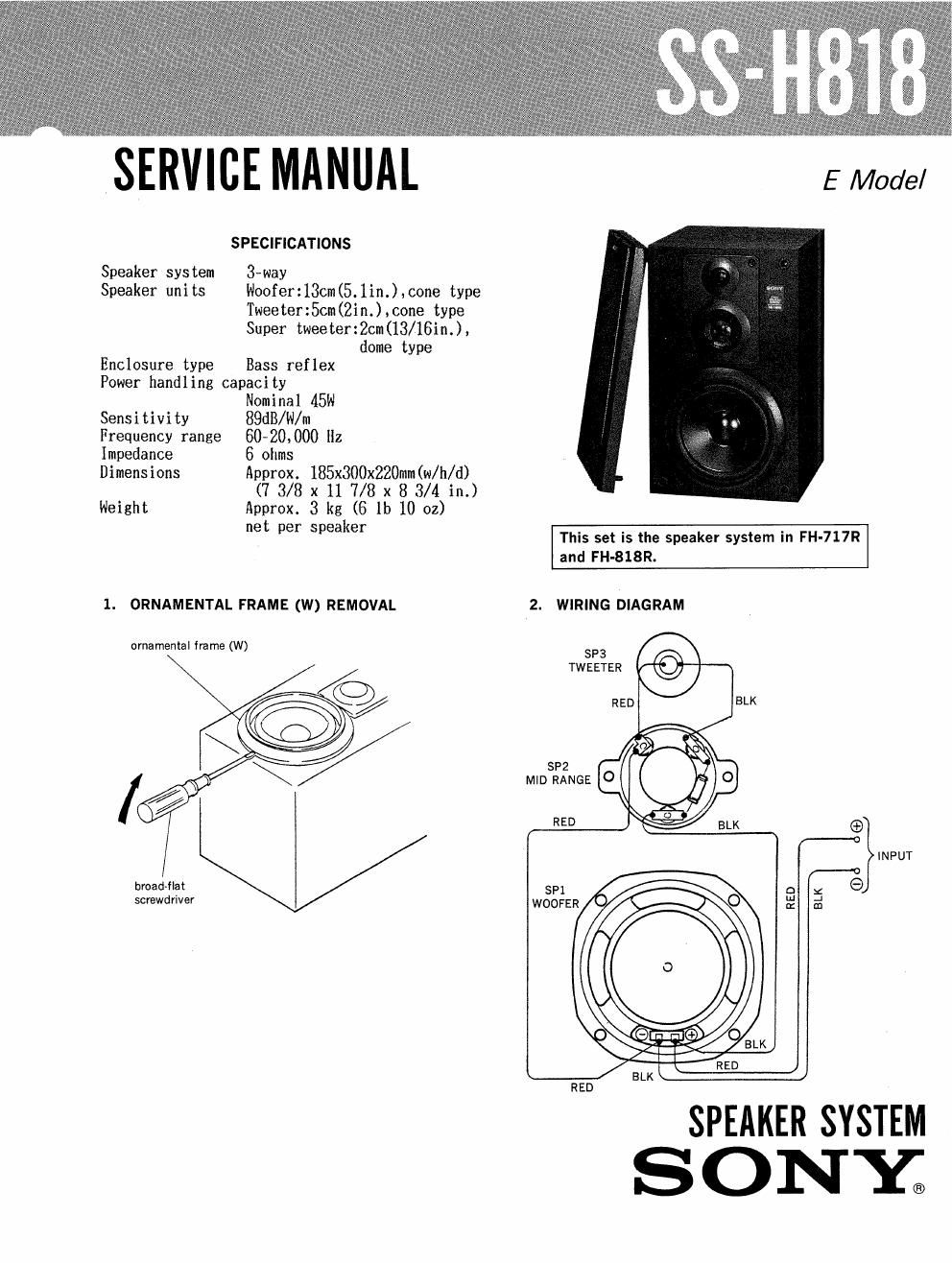

Page 1
SERVICE MANUAL
SPECIFICATIONS
Speaker system 3-way
Speaker units Woofer:130m(5.lin.),cone type
Tweeter:50m(2in.),cone type
Super tweeter:20m(l3/16in.),
dome type
Enclosure type Bass reflex
Power handling capacity
Nominal 45W
Sensitivity BQdB/W/m
Frequency range 60-20.000 Hz
Impedance 6 ohms
Dimensions Approx. 185x300x220mm(w/h/d)
(7 3/8 X 11 7/8 x 8 3/4 in.)
Weight Approx. 3 kg (6 1b 10 oz)
net per speaker
1. ORNAMENTAL FRAME (W) REMOVAL
ornamental frame (W)
broad»f lat
screwd river
This set is the speaker system in FH-717R
and FH-818R.
SP2
MID RANGE
2. WIRING DIAGRAM
SP3
TWEETER
SPEAKER SYSTEM
SONYE
