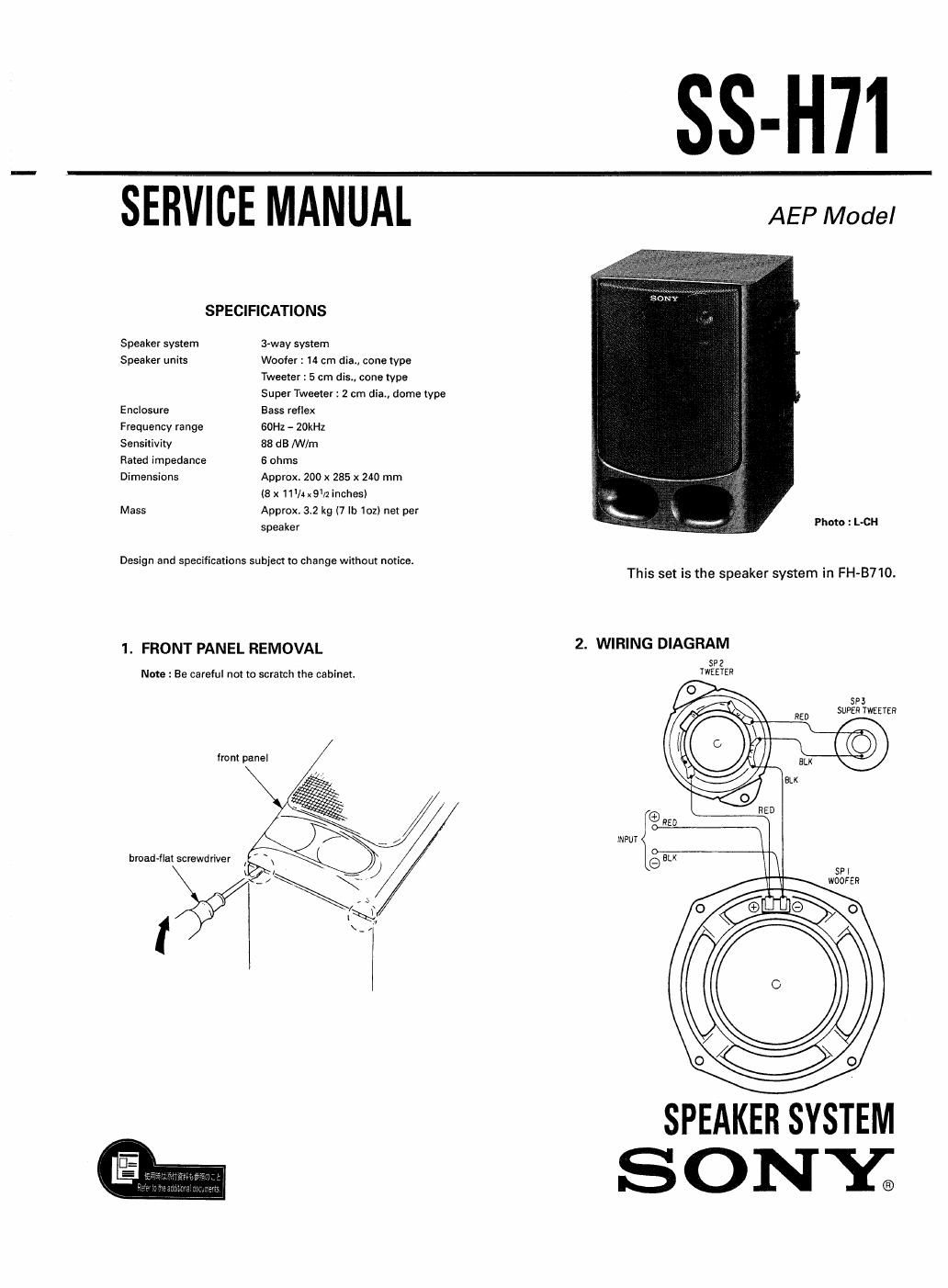

Page 1
S-H71
SERVICE MANUAL
SPECIFICATIONS
Speaker system 3-way system
Speaker units Woofer : 14 cm dia., cone type
Tweeter: 5 cm dis.. cone type
Super Tweeter : 2 cm dia., dome type
Enclosure Bass reflex
Frequency range GOHz - ZOkHz
Sensitivity 88 dB NV/m
Rated impedance 6 ohms
Dimensions Approx. 200 x 285 x 240 mm
(8 x 11/4 x 9/2 inches)
Mass Approx. 3.2 kg (7 lb 10:) net per
speaker
Design and specifications subject to change without notice.
1. FRONT PANEL REMOVAL
Note 2 Be careful not to scratch the cabinet.
Iron: panel
broad-flat screwdriver h /
1%) v /
_ / \ \
t t .,
\_,
AEP Model
Photo : L-CH
This set is the speaker system in FH-B710.
2. WIRING DIAGRAM
SP 2
TWEETER
S? l
woorsw
0 (9 G 0
\
\
/
O O
SPEAKER SYSTEM
SONE
