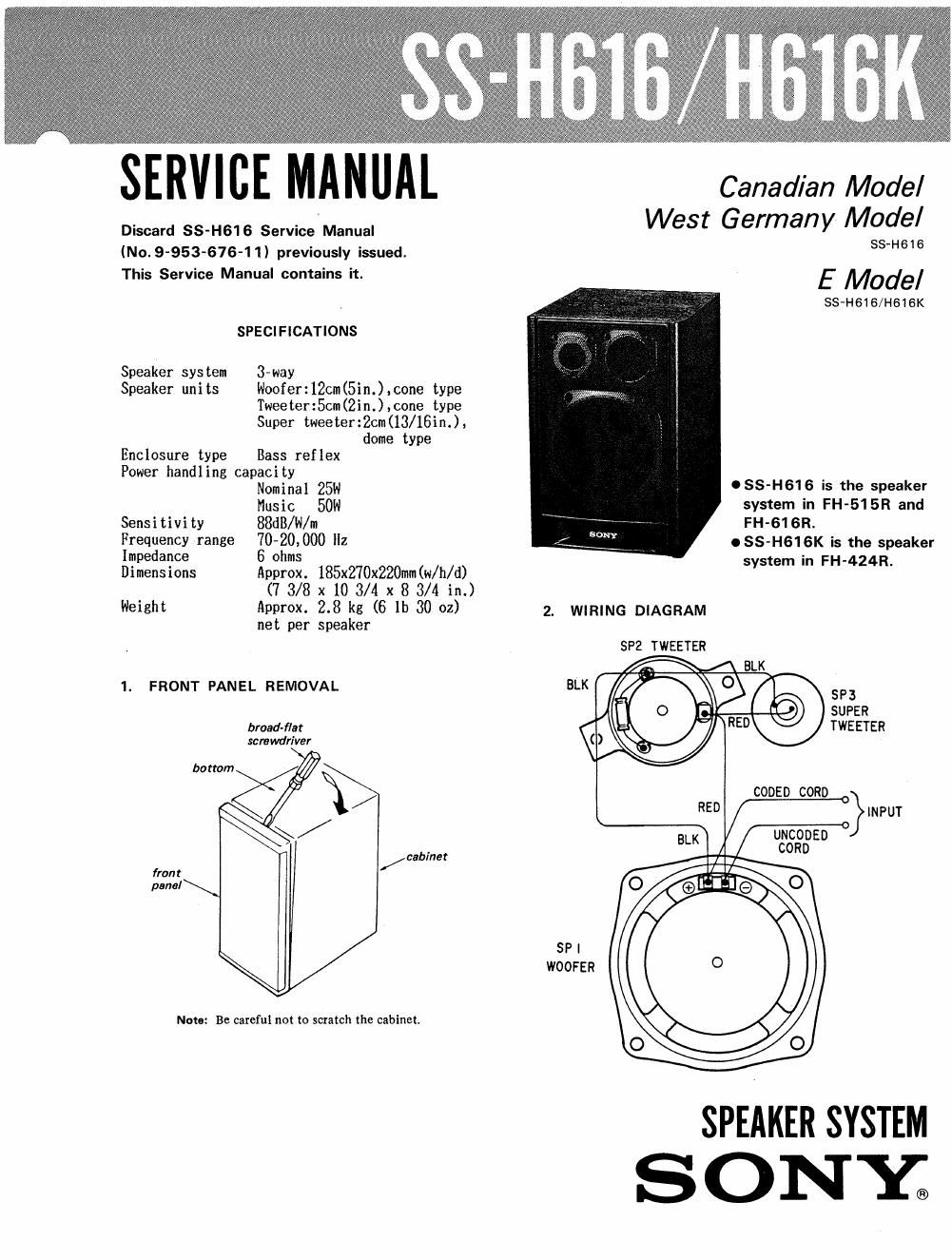

Page 1
SERVICE MANUAL
Discard SS-H616 Service Manual
(No. 9-953-676-11) previously issued.
This Service Manual contains it.
SPECIFICATIONS
Speaker system 3-way
Speaker units Wooferzl2cm(5in.),cone type
Tweeter:5cm(2in.) ,cone type
Super tweeter:20m(13/16in.),
dome type
Enclosure type Bass reflex
Power handling capacity
Nominal 25
Music 50
Sensitivity 88dB/Il/ m
Frequency range 70-20,000 Ilz
Impedance 6 ohms
Dimensions Approx. 185x270x220mm(w/h/d)
(7 3/8 x10 3/4 x 8 3/4 in.)
Weight Approx. 2.8 kg (6 1b 30 oz)
net per speaker
1. FRONT PANEL REMOVAL
broad-flat
screwdriver
botmmg/ \/
\/
cabinet
/
Iran t
panel
Note: Be careful not to scratch the cabinet.
Canadian Mode/
West Germany Model
SS-H616
E Model
SS-H616/H616K
OSS-H616 is the speaker
system in FH-515R and
FH-616R.
eSS-H616K is the speaker
system in FH-424R.
2. WIRING DIAGRAM
SP2 TWEETER
SP 3
SUPER
TWEETER
CODED CORD
/ INPUT
UNCODED
CORD
O (9 e O
SP |
woom 0
O O
SPEAKER SYSTEM
SONY;
