Page 1

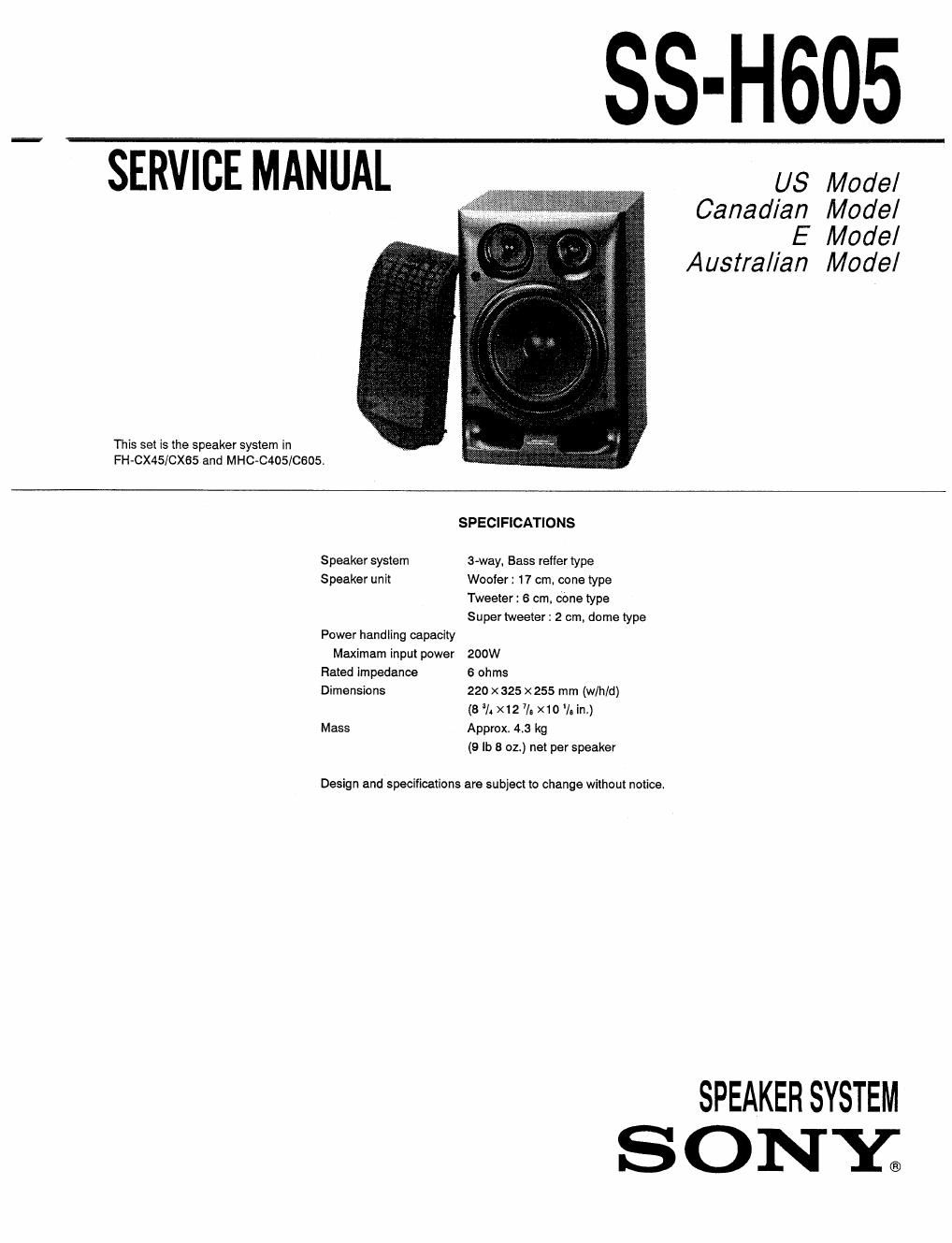

SS-H605

SERVICE MANUAL ( us Model

Canadian Model
E Model
Australian Model

This set is (he speaker system in
FH-CX45/CX65 and MHC-C405/0605.

SPECIFICATIONS
Speaker system 3vway, Bass reffer type
Speaker unit Woofer: 17 cm, cone type

Tweeter : 6 cm. cbne type
Super Meeter: 2 cm. dome type
Power handling capacin
Maximam input power 200W

Rated impedance 6 ohms

Dimensions 220 X 325 X 255 mm (w/h/d)
(8 l. X12 7/. X10 l. in.)

Mass Approx 4.3 kg

(9 lb 5 02.) net per speaker

Design and specifications are subject to change wilhouI noIice.

SPEAKER SYSTEM

SONY;

Page 2

EXPLODED VIEW AND PARTS LIST

NOTE:

0 Items marked * are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items

no! supplide
.23

___________________________4

___________________\

\
x .
\
\
\
\\ . r
x \ Fllg ht Channel Unit
\\ v
\ __________
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-4945-772-1 PANEL (L) ASSY, FRONT 9 1~769-599-Il CORD
I X-4945-773-1 PANEL (R) ASSY. FRONT SP1 1-504-820-11 SPEAKER (16cm)
2 X-4945-775-1 FRAME ASSY, GRILLE SPZ 1-504-544-11 SPEAKER (60m)
3 9-911-844-XX PACKING SP3 1-504-898-11 SPEAKER (20m)
* 4 A-4361-401-A CABINET (L) ASSY, SPEAKER uuttnzmtuuuMHuxxxwunnnwr*wmtuwmuun
* 4 A-4361-402-A CABINET (R) ASSY, SPEAKER ACCESSORIES & PACKING MATERIALS
5 1-537-798-11 TERMINAL BOARD *rtxxunnnnuu*xxuxwuu
6 4-973-095-01 PACKING
7 3-703-564-01 SCREW. TAPPING 1-769-306~11 CORD, SPEAKER
8 4-874-614-11 SCREW, +BVTP 3.5X14 * 4-973-675-01 CUSHION (US. Canadian)
Engllah
Sony Corporation . 959°25le
Printed In JaDan
Consumer A&V Products Company @9953
9-960-154-11 Home A&V Products Dlv. Published by Home A&V Products Dlv.

Quallry Englneering Dept.

_2_.
