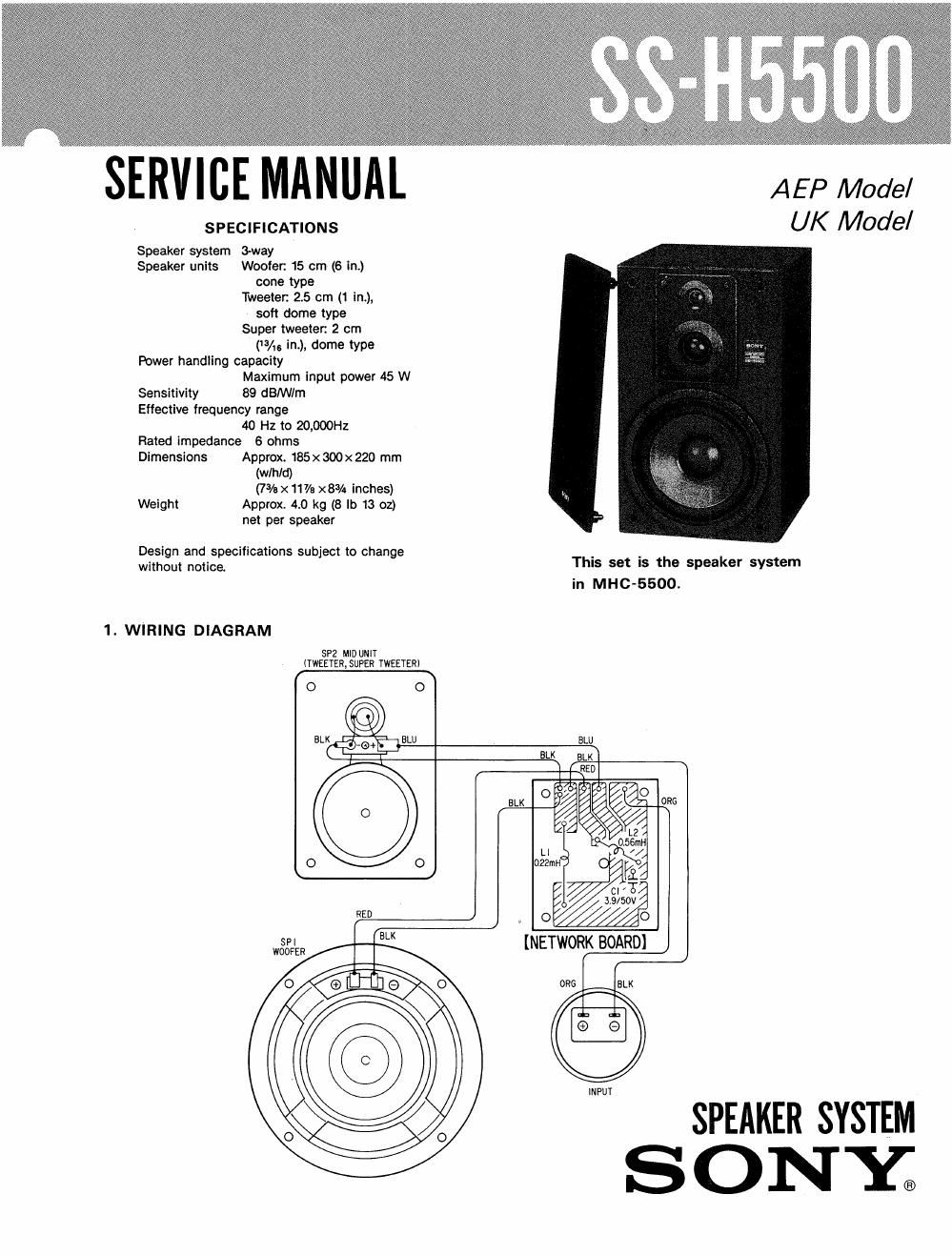

SERVICE MANUAL
SPECIFICATIONS
Speaker system 3~way
Speaker units Woofer: 15 cm (6 in.)
cone type
Tweeter: 2.5 cm (1 in),
soft dome type
Super tweeter: 2 cm
(13/16 in.), dome type
Power handllng capacity
Maximum input power 45 W
Sensitivity 89 dBNV/m
Effective frequency range
40 Hz to 20,000Hz
Rated impedance 6 ohms
Dlmenslons Approx. 185x 300x 220 mm
(w/h/d)
(7% x117/s x83/4 inches)
Weight Approx 4.0 kg (8 lb 13 02)
net per speaker
Design and specifications subject to change
without notice
1. WIRING DIAGRAM
SP2 MID UNIT
[TWEETER, SUPER TWEETERI
A E P Model
UK Model
This set is the speaker system
in MHC-5500.
SPEAKER SYSTEM
S ONY;
Page 2
SS-H5500
2. EXPLODED VIEW AND PARTS LIST
NOTE:
0 Items marked it" are not stobked since
they are seldom required for routine
service. Some delay should be antici-
pared when ordering these items.
902
L Part No. Descrlgtlon Remarks Refillo Part No. Description
I X-4929-630-1 FRAME ASSY, GRILLE 901 *1-635-350-H PC BOARD, NETHORK
902 1-537-1 45-1] TERMINAL BOARD (SPEAKER)
2 X-4929-634-I (AEP,UK) . . . . . . . . .CAEINET ASSY, SPEAKER
X-4929-635-2 (Nest Germany).'..CABINET ASSV, SPEAKER CI 1.123.547-00 CAP, ELECT (NONPOLAR) 3.9MF
3 4.932.425.01 SCREW (3.5)(20), TAPPING L1 *1-459-176-00 COIL, NETWORK (CHLS TYPE)(0.22MH)
4 4874-61441 SCREW (4) (3.5)(12), TAPPING L2 1-459-866-11 COIL, NETWORK (0.56MH)
SP1 1-544-273-11 NOOFER
SP2 1-544-274-H MID UNIT (TWEETER,SUPER TNEETER)
ACCESSORY & PACKING MATERIAL
1575-49541 CORD, SPEAKER
3-751-693-11 MANUAL, INSTRUCTION
*4-857-I 37-01 CUSHION
*4-938-404-01 INDIVIDUAL CARTON
English
. 90D0460-1
Sony Corporation Printed in Japan
9955'87311 Audio Group © 1990. 4
_2_ Published by Customer Relatlons and Service Group
