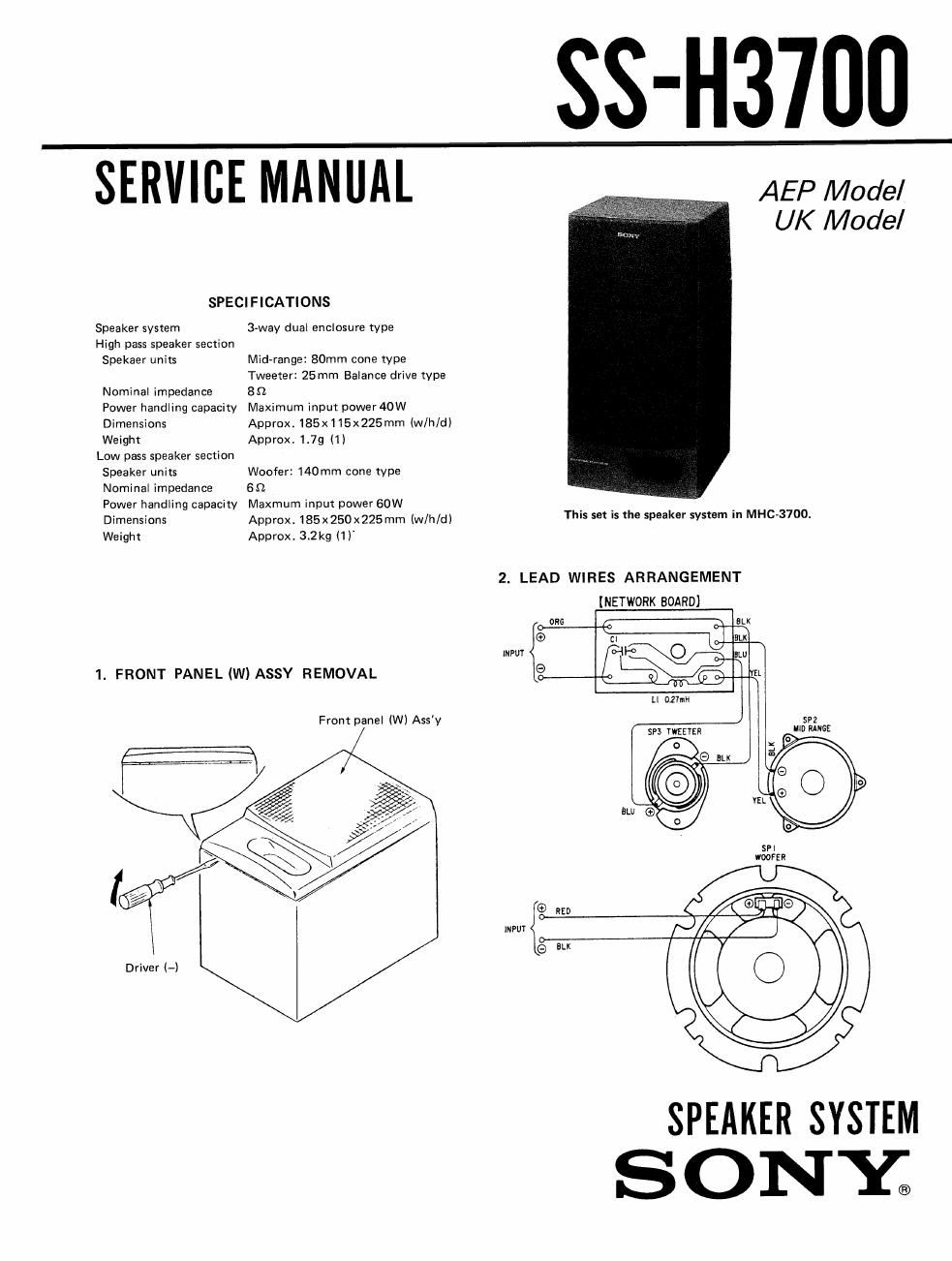

Page 1

SS-H3700

SERVICE MANUAL

SPECIFICATIONS

Speaker system
High pass speaker section
Spekaer units

Nominal impedance
Power handling capacity
Dimensions
Weight

Low pass speaker section
Speaker units
Nominal impedance
Power handling capacity
Dimensions
Weight

3-way dual enclosure type

Midwange: 80mm cone type
Tweeter: 25mm Balance drive type
Sn

Maximum input power40W
Approxt185x115x225mm (w/h/dl
Approx. 1.7g (1)

Woofer: 140mm cone type

an

Maxmum input power 60W
Approx. 185x250x225mm (w/h/d)
Approx. 3.2k9 (1)

1. FRONT PANEL (WiASSY REMOVAL

Front panel (W) Assy

Driver (4

AEP Model
UK Model

This set is the speaker system in MHC-3700.

2. LEAD WIRES ARRANGEMENT

INPUT

Wm

Willing

[NETWORK BOARD)

c1

Ll 027m»

SP2
5?! "IEEYER MID RANGE

SPEAKER SYSTEM

SONXC

Page 2

SS-H3700

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 -XX. -X mean standardized parts, so '
they may have some differences from

the original one.

1 K-4942-200*1

2 3-701-437-21

, 4 X494Z201-1
* 5 1-589-388-11
6 X-4942-202-1

8 4-928~613-21
9 l-537~337-31
IO 1-537-332-12
11 X~4942-392-1
11 K-4942-396-I

11 X-4942-393-1
11 X-4942-397>1
t 12 4-949-397-01
13 4*874-61401
l4 X-4942-211-Z

14 X-4942~215-2
15 K~4942-2031

9-956-991-1 1

service.

not supplied

FRAME (S) ASSY. GRILLE
WASHER

PANEL (S) ASSY, FRONT
MOUNTED PC BOARD (NETWORK)
CABINET (S) ASSY, SPEAKER

NUT, STAND FIXED

TERMINAL BOARD (ZP~SP)

TERMINAL BOARD

CABINET (W) (R) ASSY, SPEAKER (AEP,UK,IT)
CABINET (W) (R) ASSY, SPEAKER (GERMANY)

CABINET (W) (L) ASSY, SPEAKER (AEP.UK, IT)
CABINET (W) (L) ASSY, SPEAKER (GERMANY)
PACKING (1))

SCREW (4) (3.5x14) , TAPPING

PANEL (W) (R) ASSY, FRONT

PANEL (W) (L) ASSY, FRONT
FRAME (W) ASSY. GRILLE

Sony Corporation

Items marked " * " are not stocked since
they are seldom required for routine
Some delav should be antici-
pated when ordering these items.

I
» K: W/ (Including
; \/

#1
#2
#3
#4
#5

Audio Group
__ 2 __

o The mechanical parts with no reference
number in the exploded views are not
supplied.

Description

SPEAKER (13cm)
SPEAKER (8cm)
SPEKAER (2.50m)

1-544-724-21
1-544-723-11
1-544-722-11

ACCESSORY Ki PACKING MATERIAL

8-694-922-01 SEET, PROTECTION
3-755-033-11 MANUAL, INSTRUCTION (ENGLISH,FRANCH,
SPANISH, PORTUGUESE, GERMAN. DUTCH, SWEDISH,
ITALIAN)
4*945-080-01 CUSHION
1-590-855431 CORD, SPEAKER
HARDWARE LIST
*************
7-624-200-11 NUT, PUSH Z
74385-165411 SCREW +P'1'P 4x25 TYPE 1
7-685-647-19 SCREW +BVTP 3x10 TYPE 2 N-S
7'685-660-79 SCREW +BVTP 4x10 TYPE 2 ITS
7-685-653-79 SCREW +BVTP 4x16 TYPE 2 IT'S
English
92006604
Printed in Japan
©199213'
Published by Customer Relations and Service Group
