sony ss h 3600 service manual

Extracted text from sony ss h 3600 service manual (Ocr-read)

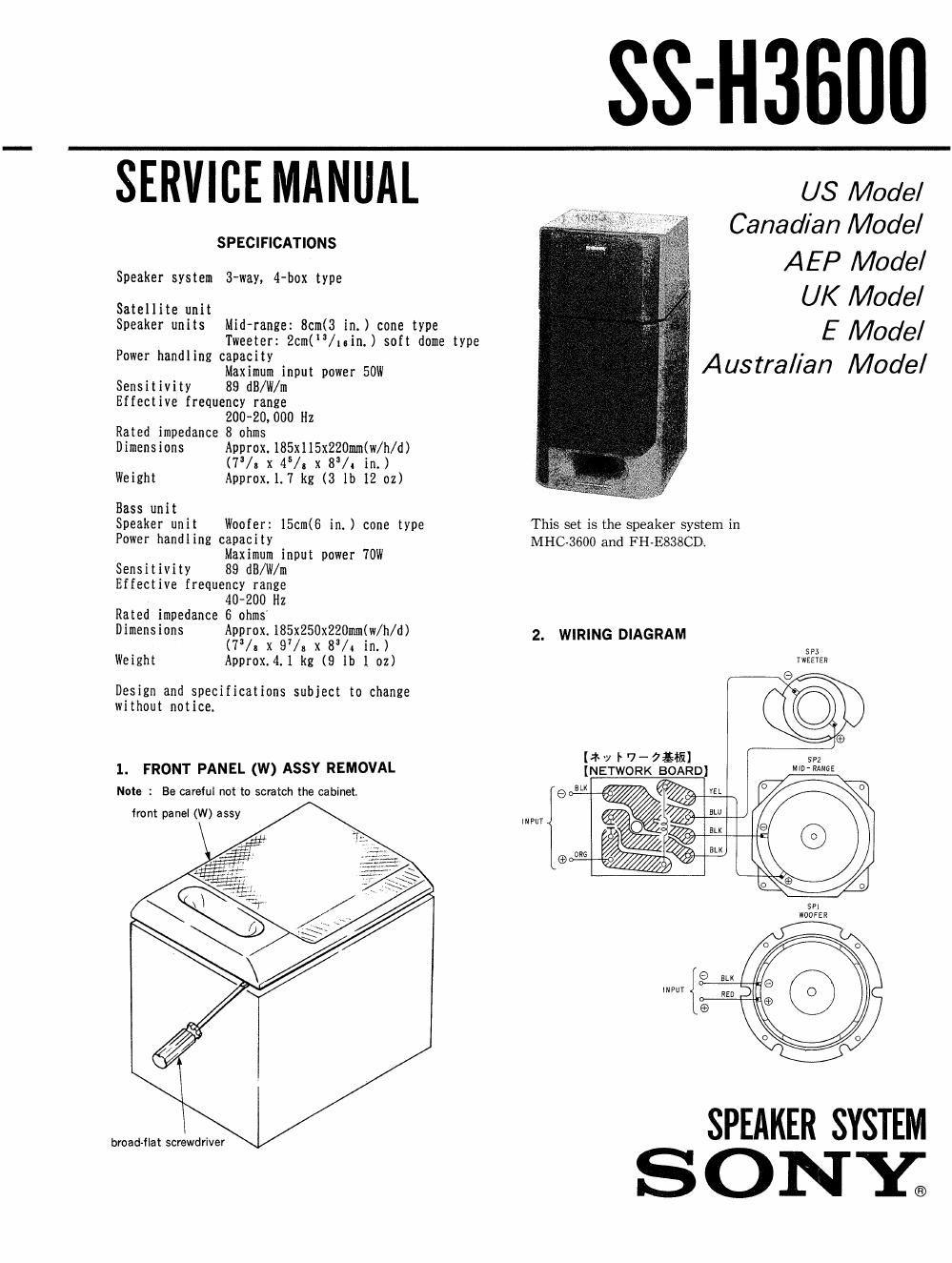

Page 1

S-H3600

SERVICE MANUAL

SPECIFICATIONS
Speaker system 3~way, 4-box type

Satellite unit
Speaker units Mid-range: 8cm(3 in.) cone type
Tweeter: 20m(/.oin.) soft dome type
Power handling capacity

Maximum input power 50W
Sensitivity 89 dB/W/m
Effective frequency range

ZOO-20,000 Hz
Rated impedance 8 ohms

Dimensions Approx.185x115x220mm(w/h/d)

(7/; x 45/. x 83/. in.)
Weight Approx.l.7 kg (3 lb 12 02)
Bass unit

Speaker unit Woofer: 15cm(6 in.) cone type
Power handling capacity
Maximum input power 70W

Sensitivity 89 dB/W/m
Effective frequency range
40-200 Hz
Rated impedance 6 ohms
Dimensions Approx.185x250x220mm(w/h/d)
(7/. x 9/. x 89/. in.)
Weight Approx.4.l kg (9 lb 1 02)

Design and specifications subject to change
without notice

1. FRONT PANEL (W) ASSY REMOVAL

Note : Be careful not to scratch the cabinet,

front panel (W) assy

broad-flat screwdriver

U8 Model
Canadian Model
AEP Model

UK Model

E Model
Austral/an Model

This set is the speaker system in
MHC-3600 and FH-E838CD.

2.

Input

WIRING DIAGRAM

(*VI7-7&WI
[NETWORK BOARD

e BLK

n
@476

sea
Twcevze

0

SP2
MID-RANGE

@

SPI
WOOFER

SPEAKER svsnm
S O NYE

Page 2

SS-H3600

3. EXPLODED VIEW AND PARTS LIST

NOTE:

o The mechanical parts with no reference
number in the exploded views are not
supplied)

0 Items marked "# " are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

not supplied

5

O -XX, -X mean standardized parts, so
they may have some differences from
the original one.

0 Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE).H(RED)

1
Parts Color

6 8

T
Cabinet's Color

not supplied

_.______________________/

_2_

not supplied J
/
/
/
/
/
Ref.No Part No. Descrigtion Remarks RetNo Part No. Description Remarks
1 X-494l~269-I FRAME (S) ASSY, GRILLE 11 X-4941-271-1 FRAME (W) ASSY, GRILLE
2 *4-912-253-01 CATCHER 12 X-494lr439-2 PANEL (W) ASSY, FRONT
3 X-4941~463-1 PANEL (S) ASSY, FRONT 13 4-874-614-11 SCREW (4) (3.5)(14), TAPPING
4 7-685-660-79 SCREW +BVTP 4X10 TYPE2 lT-3 14 1-537-145-11 TERMINAL BOARD (SPEAKER)
5 *1-589-324-11 MOUNTED PC BOARD (NETWORK) 15 X-4941-401-1 CABINET (W) ASSY, SPEAKER (AEP)
6 7*685-878-01 SCREW +BVTT 3X25 (S) 15 X-4941-402-1 CABINET (W) ASSY, SPEAKER (Germany)
7 X-4941273rl CABINET (S) ASSY, SPEAKER (US, Canadian, UK, 15 X-4941-464-1 CABINET (W) ASSV, SPEAKER (US, Canadian, UK,
Australian E) Australian E)
7 X4941-514-1 CABINET (S) ASSY, SPEAKER (AEP, Germany) SP1 1-544-434-21 SPEAKER (150M)
8 7685-66349 SCREW +BVTP 4X16 TYPEZ lT-3 SP2 1~544-433-ll SPEAKER (86M)
9 1-537-337-31 TERMINAL BOARD (2P SP) SP3 1-544-42911 SPEAKER (2.50M)
10 7*685-647-79 SCREW +BVTP 3X10 TIPEZ N-S
ACCESSORY&PACKING MATERIAL
*****$***$**t**t**$***t
1-590-855-11 CORD, SPEAKER (AEP, Germany)
3'753-188-11 MANUAL. INSTRUCTION (AEP, Germany) En I
g ish
- 9160495-1
Sony Corporatlon printed in Japan
9-956-319-11 Audio Group © 1991. 3

Publlshed by Customer Relations and Service Group
