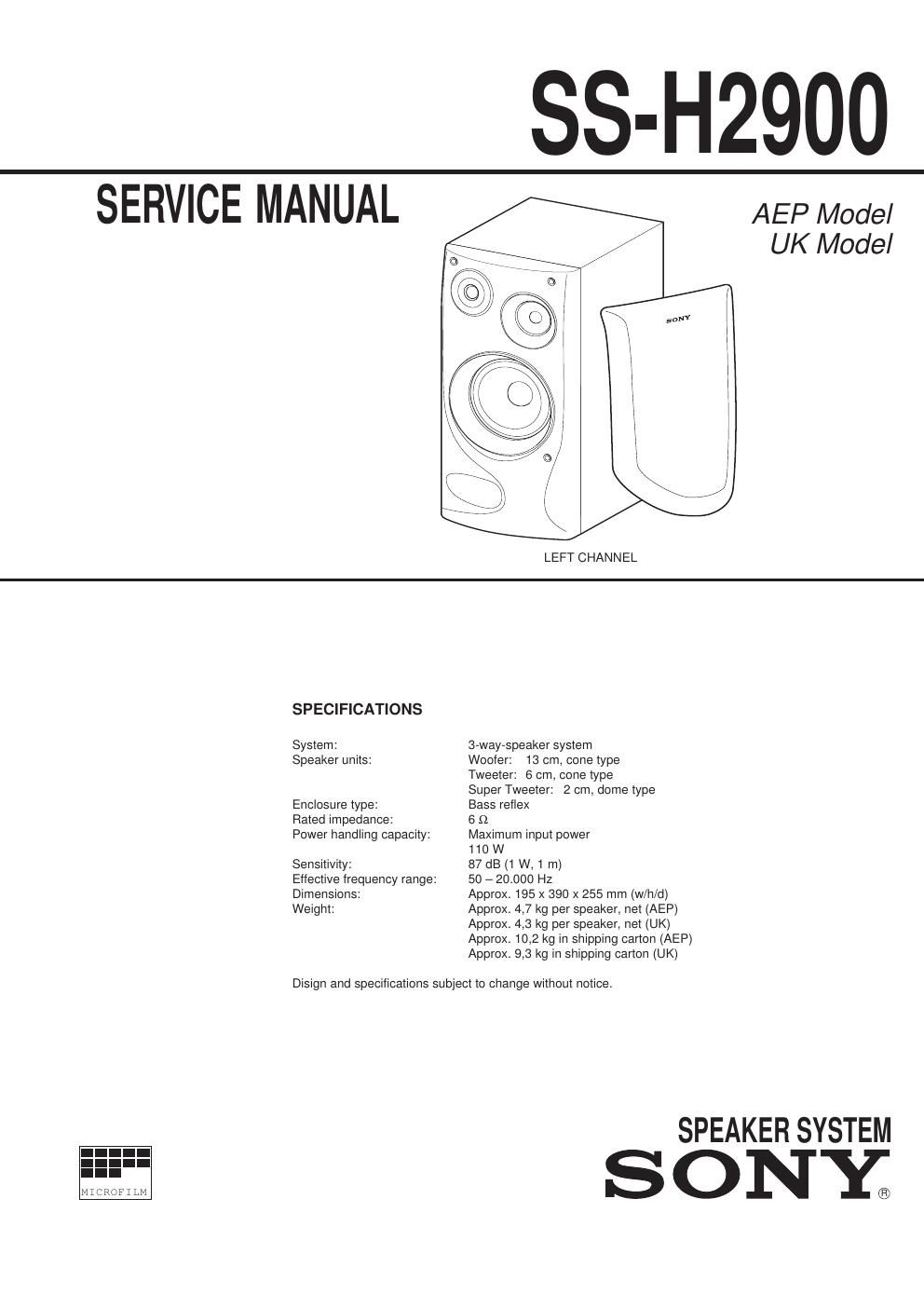

Sony ss h 2900 service manual

Page 1

- 2 - SS-H2900 SP2 Tweeter Left channel unit 1. SCHEMATIC DIAGRAM 2. EXPLODED VIEW AND PARTS LIST NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 9-959-704-11 Ref. No. Part No. Description Remark 9 4-969-428-01 CUSHION (AEP) 9 4-969-560-01 CUSHION (UK) SP1 1-504-491-11 SPEAKER (12 cm CONE) SP2 1-504-544-11 SPEAKER (6 cm CONE) SP3 1-544-293-51 SPEAKER (2 cm DOME) *4-965-609-01 CARTON (AEP) *4-965-796-01 CARTON (UK) 4-965-608-01 CUSHION *4-957-996-01 POLYETHYLENE BAG (AEP) *4-962-908-01 POLYETHYLENE BAG (UK) 3-758-429-11 INSTRUCTION MANUAL (AEP) 3-758-472-11 INSTRUCTION MANUAL (UK) 1-751-495-11 SPEAKER CORD (AEP) 1-751-496-11 SPEAKER CORD (UK) Ref. No. Part No. Description Remark 1 X-4944-780-1 SPEAKER CABINET ASSY (AEP) 1 X-4944-803-1 SPEAKER CABINET ASSY (UK) 2 X-4944-777-1 FRONT PANEL (R) ASSY X-4944-776 -1 FRONT PANEL (L) ASSY 3 X-4944-779-1 GRILLE FRAME (R) ASSY (AEP) X-4944-802-1 GRILLE FRAME (R) ASSY (UK) 3 X-4944-778-1 GRILLE FRAME (L) ASSY (AEP) X-4944-801-1 GRILLE FRAME (L)ASSY (UK) 4 1-589-674-11 MOUNTED P.C.B. (AEP) 4 1-589-673-11 MOUNTED P.C.B. (UK) 5 4-960-364-01 SCREW +P 3,5 X 8 (AEP) 5 4-960-366-01 SCREW +P 3,5 X 9,5 (UK) 6 4-960-361-01 SCREW +P 4,0 X 15 (AEP) 6 4-960-367-01 SCREW +P 4,0 X 12 (UK) 7 4-965-606-01 GASKET 8 4-960-359-01 PACKING Sony Corporation Consumer A&V Products Company Home A&V Division English 94G7557-1 Printed in Germany © 1994.7 Published by Home A&V DiV. Quality Engineering Dept. SP1 Woofer SP3Super Tweeter 1,5 mF 5 SP2 SP3 84 1 3 926 7 SP1
