Extracted text from sony ss h 2800 service manual (Ocr-read)

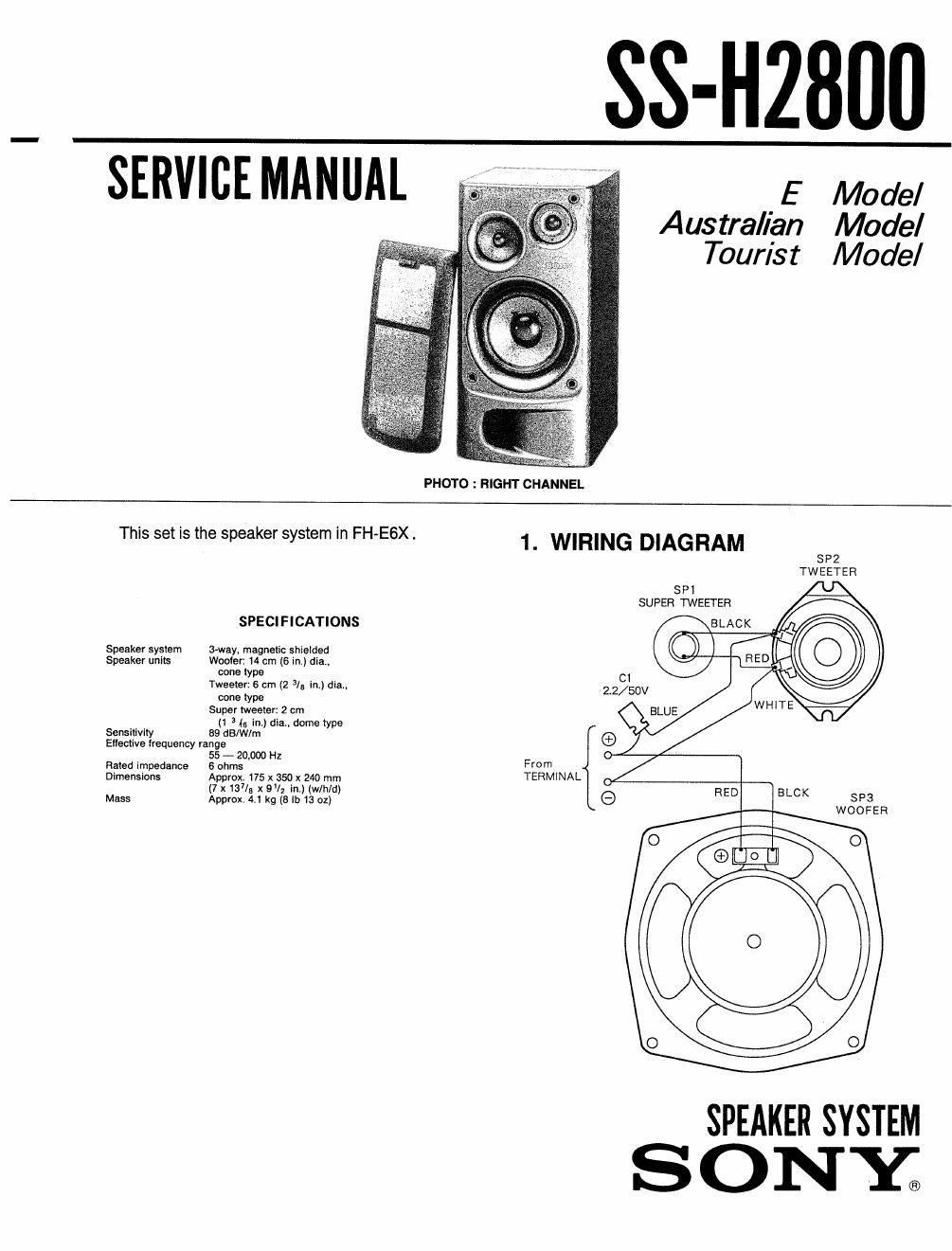

Page 1

SS-HZBUO

SERVICE MANUAL

E Model
Australian Model
Tourist Model

PHOTO : RIGHT CHANNEL

This set is the speaker system in FH-EGX.

SPECIFICATIONS

Speaker system 8-way, magnetic shielded
Speaker units Wooier: 14 cm 16 in.) dia..
cone type
Tweeter: 6 cm (2 3/3 in.) dia,,
cone type

Super tweeter: 2 cm
(1 3 45 in) dis. dome type
lW/m

Sensitivity 89 dB
Effective irequency range
55 - 20,000 Hz
Hated impedance 6 ohms
Dimensions Approx. 175 x 350 x 240 mm
(7 x 137/3 x 9% in) (w/h/d)
Mass Approx 4.1 kg (8 lb 13 oz)

1 . WIRING DIAGRAM

SP2
TWEETER
SP1 A
SUPER TWEETER
. ,
C1
22/50V
WHITE
T7
(9
From
TERMINAL _
9 RED BLCK SP3
WOOFER

SPEAKER SYSTEM
S ONY®

Page 2

2. EXPLODED VIEW

NOTE:

- ~XX. -X mean standardized parts. so they 0 Items marked * are not stocked since
may have some difference from the they are seldom required for routine
original one. service. Some delay should be anticipated

. Color Indication of Appearance Pans when ordering these items}

Example: - The mechanical parts with no reference
KNOB, BALANCE (WHITE),..(RED) number in the exploded views are not
T T supplied.

Pants color Cabinets color
2-1. CABINET SECTION

Exploded view is Light channel unit.

nol supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 X-4943-104-1 FRAME ASSY, GRILLE 6 1-696-798-11 CORD, CONNECTION
Z X-4943-102-1 PANEL KR; ASSY, FRONT a: 7 X-4943rlOS-l CABINET ASSY, SPEAKER

Xe4943-103-1 PANEL L ASSY, FRONT SP1 1-544-293-11 SPEAKER (SUPER TWEETER)
3 3-703-564-01 SCREW, TAPPING SP2 1-504-253-11 SPEAKER (TWEETER)
4 4-874-614-11 SCREW +BVTP 3. 5x14

SP3 1-504-214-11 SPEAKER (SUPER WOOFER)

5 9-911-844-XX PACKING

English

. 933091 5-1
SONY corporation Printed in Japan
