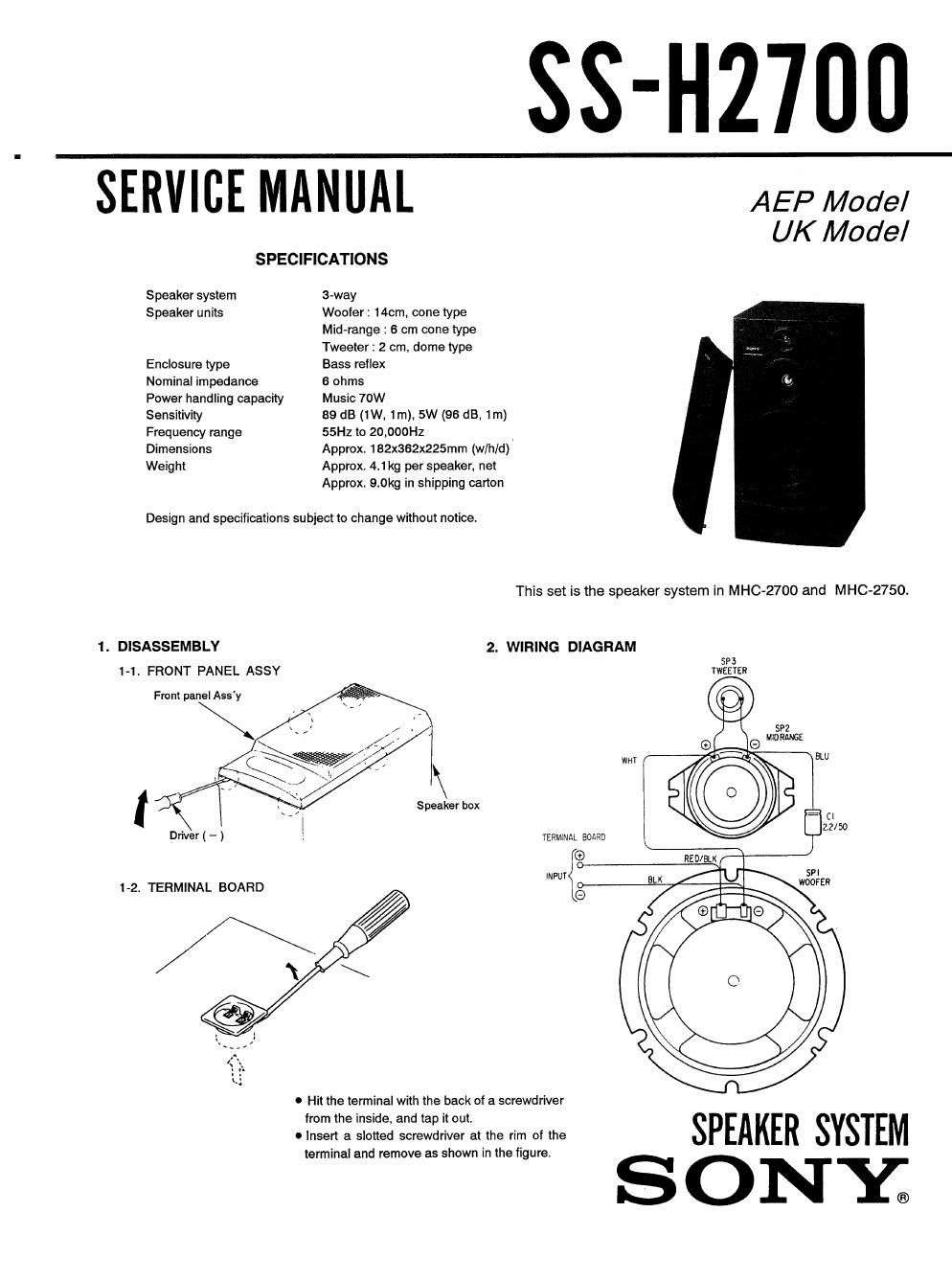

SS - H2700

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 -XX, -X mean standardized parts, SO 0 Items marked ">I<" are not stocked Since 0 The mechanical pans with no reference
they may have some difference from the they are seldom required for routine number in the exploded views are not
original one. service. Some delay should be anticipated supplied.

when ordering these items, 0 Abbreviation
G:Germany
lT:Italian

-L-CH-

7
:
|
|
I
|
I
I
I
|
|
|
|
|
|
I
I
I
I
.
Ref. No. Part No. Descrigtion Remark Ref. No. Part No. Descrigtion Remark
I T-EIsO-539~A GRILLE FRAME ASSY (UK) . s T-8150~546-A WIRE KIT ASSY (AEP, G, IT)
I T-8150-541-A GRILLE FRAME ASSY (AEP,G, IT) 9 T-8151-846-1 GASKET FOR DUCT
2 T-8150-537-A FRONT PANEL (L) ASSY (UK)
2 T78150-547-A FRONT PANEL (L) ASSY (AEP, G, IT) SPI 1-544-644-11 SPEAKER UNIT (13cm CONE)
z T-8150-538-A FRONT PANEL (R) ASSY (UK) SPZ 1~544~650-11 SPEAKER UNIT (6cm CONE)
SP3 I-544~293-31 SPEAKER UNIT (2cm PIEZO)
2 T-8150-548-A FRONT PANEL (R) ASSY (AEP,G, IT)
3 T-8151-871-1 TAPPING SCREW +P 4. 0m (UK) < ACCESSORIES O PACKING MATERIALS >
3 T-8150-573-l TAPPING SCREW +P 4. 0x15 (AEP,G, IT)
4 T-8151v870-1 TAPPING SCREW +P 3 5x9. 5 (UK) T-8151-827-1 INSTRUCTION MANUAL (UK)
4 T-sIsHIea-I TAPPING SCREW +P 3. ENE (AEP,G, IT) T-8151-829-1 INSTRUCTION MANUAL (AEP.G, IT)
T-SllO-SZl-l SPEAKER CORD
5 T-8151-845-1 GASKET FOR TWEEIER
6 T-sISI-sse-I SPEAKER BOX (UK) * Tv8151-820-1 CARTON (UK)
6 T-8151-838-l SPEAKER BOX (AEP,G, IT) 5 T-8151-822-1 CARTON (AEP,G, IT)
7 T-8151-OAz-I TERMINAL BOARD * T-8151-803-1 CUSHION (A)
s T-8150-543-A WIRE KIT ASSY (UK) 5 T-8151-851-1 CUSHION (E)
English
_ 92F0659-1
Sony Corporation Printed In Japan
9-957-109-11 Audio Group @19926
