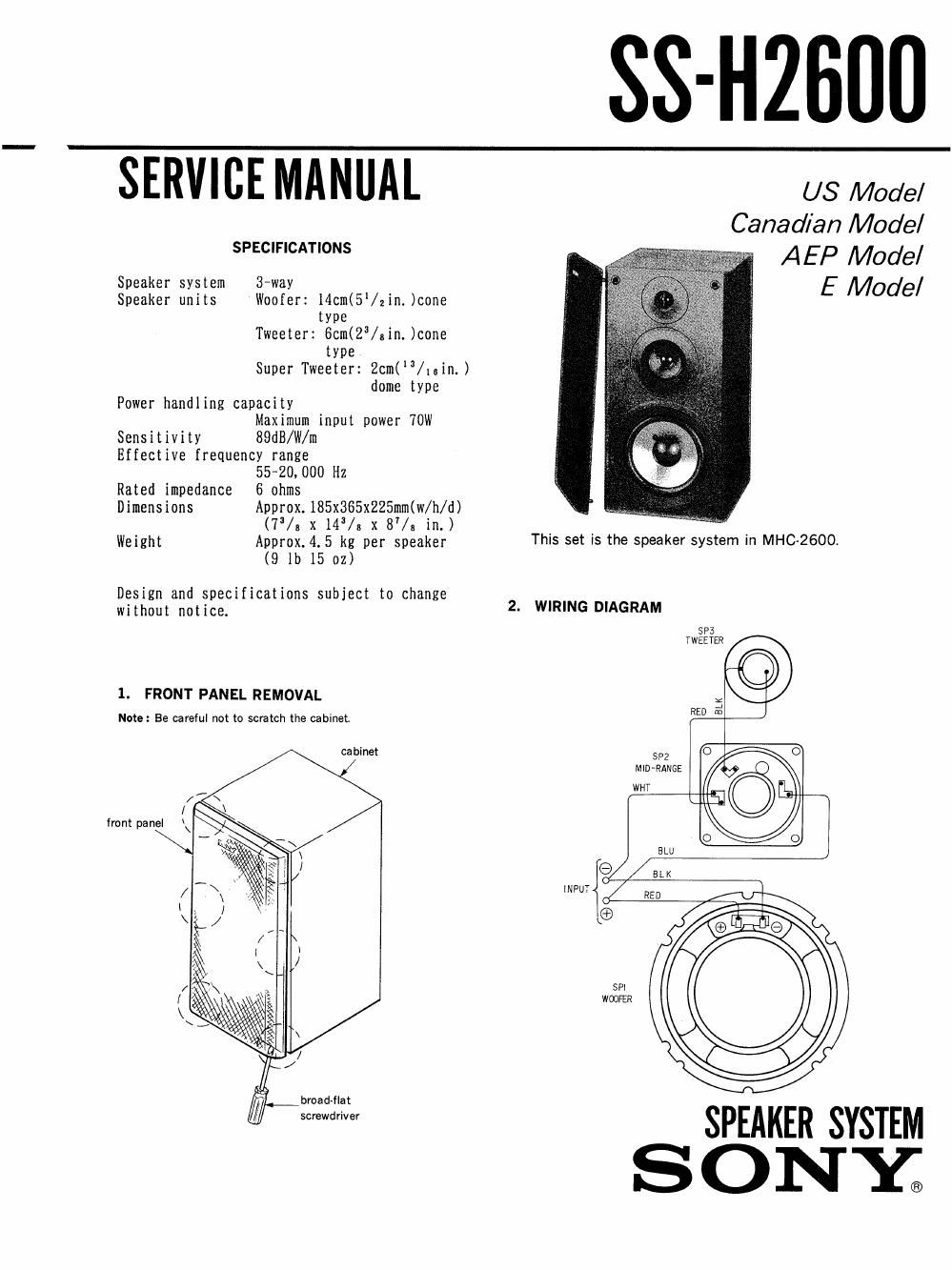

Sony ss h 2600 service manual
This is the 2 pages manual for sony ss h 2600 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss h 2600 service manual (Ocr-read)
Page 2
SS-HZGOO
3. EXPLODED VIEW AND PARTS LIST
NOTE:
0 The mechanical parts with no reference
number in the exploded views are not
supplied.
0 Items marked "* " are not stocked since
they are seldom required for routine
service. Some delay should be antici»
pared when ordering these items.
5-7--
2%?
1 T V/
7
\
-XX, -X mean standardized parts, so
they may have some differences from
the original one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITEI,..(RED)
Parts Color
/ 4
/
/
not supplied
T
Cabinet's Color
_2_
ReI.No Part No. Descrigtion Remarks Ref.No Part No, Description Remarks
1 X-4941-328-1 FRAME ASSY. GRILLE 6 3403-564-01 SCREW, TAPPING
2 X-4941-4031 PANEL ASSY. FRONT 7 4-874-614-11 SCREW (4) (35X14), TAPPING
3 *4-912-253-01 CATCHER SP1 1-544-277-11 SPEAKER (130M) (EXCEPT FOR US)
4 Xr4941-329-2 CABINET ASSV, SPEAKER (Canadian, AEP, E) SP1 1-544-425~11 SPEAKER (13CM) (US)
4 X-4941-404-2 CABINET ASSY, SPEAKER (Germany) SP2 1-544-460-11 SPEAKER (60M)
4 X-4941-433r2 CABINET ASSV, SPEAKER (US) SP3 1544-293-11 SPEAKER (ZCM)
5 1-537-145-11 TERMINAL BOARD (SPEAKER)
ACCESSORY & PACKING MATERIAL
*fi******************
1-575495-11 CORD, SPEAKER (AEP, Germany)
3-753-187-11 MANUAL INSTRUCTION
(AEP, Germany)
*4-857-137-01 CUSHION
3-694-922431 SHEET, PROTECTION English
. 9160482-1
Sony corporatlon Printed in Japan
9-956-279-11 Audio Group © 1991 3
Published by Customer Relations and Service Group
