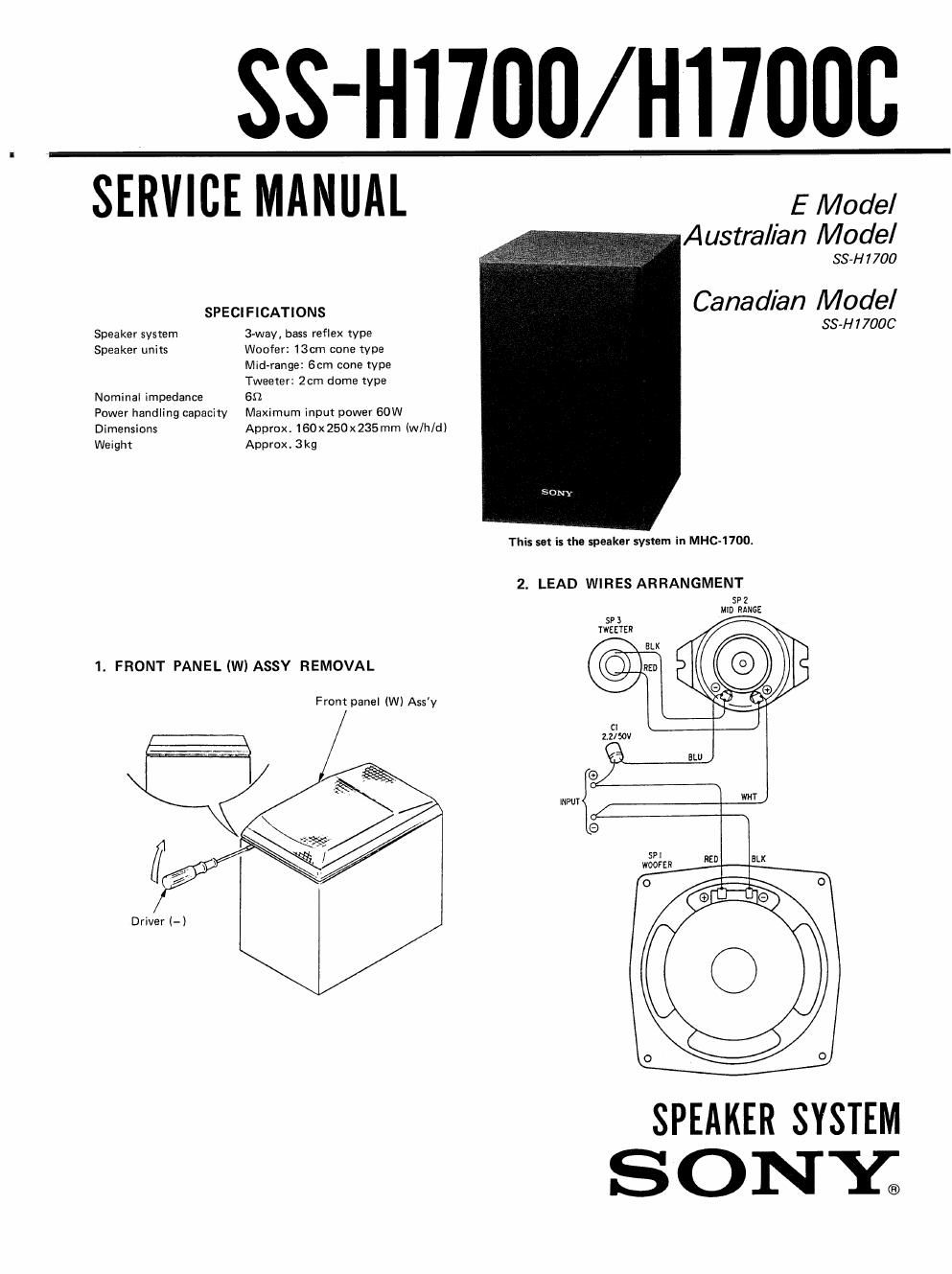

Page 1

SS-H1700/H17000

SERVICE MANUAL EMode/

Australian Model

SS-H1700

SPECIFICATIONS Canadian Model

Speaker svsem Sway, bass reflex type 3347177000
Speaker units Woofer: 13cm cone type

Mid-range: 6cm some type
Tweeter: 2cm dome type

Nominal impedance 69

Power handling capacity Maximum input power 60W
Dimensions Approx 160x250><235mm (w/h/d)
Weight Approx. 3kg

This set is the speaker system in MHC-17004

2. LEAD WIRES ARRANGMENT

SP 2
MID RANGE

SP 3
TWEETEH

l. FRONT PANEL (W) ASSY REMOVAL

@

Front panel (W) Assy

INPUT

Driver (-)

<:>

SPEAKER SYSTEM
SONY®

Page 2

SS-H1700/H1700C

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 -)(X, -X mean standardized parts, so '
they may have some differences from
the original one

service.

Items marked " * " are not stocked since
they are seldom required for routine

Some delay should be antici-

pated when ordering these items.

0 The mechanical parts with no reference
number in the exploded views are not
supplied.

I X-494Z-1'I4-1
Z 7'624-200-11
3 X-4342'l73-l
3 X-4942'177-l
4 7-685-659-21

5 1-690-686-11
6 X-4942>356-I
9 1-537433211
1 9-911-844-XX
l 4-8744514-11

Ho

9-956-992-1 1

FRAME ASSY, GRILLE

NUT. PUSH 2

PANEL (R) ASSY, FRONT
PANEL (L) ASSY, FRONT
SCREW +BVTP 4x8 TYPE 2 SLIT

CORD, CONNECTION

CABINET ASSY, SPEAKER
TERMINAL BOARD

PACKING

SCREW (4) (3.5x14). TAPPING

Sony Corporation

Audio Group
_ 2 _

Part. No Description Remarlte
3-701-437-21 WASHER
1-544-428-12 SPEAKER (120m) (SS-H1700)
1644744511 SPEAKER (120m) (SS-HHOOC)
1-544-632-11 SPEAKER (Soul)
ACCESSORY i: PACKING MATERIAL
4*950000-01 CUSHION
English
92C0617-1
Printed in Japan
© 1992.3

Published by Customer Relations and Service Group
