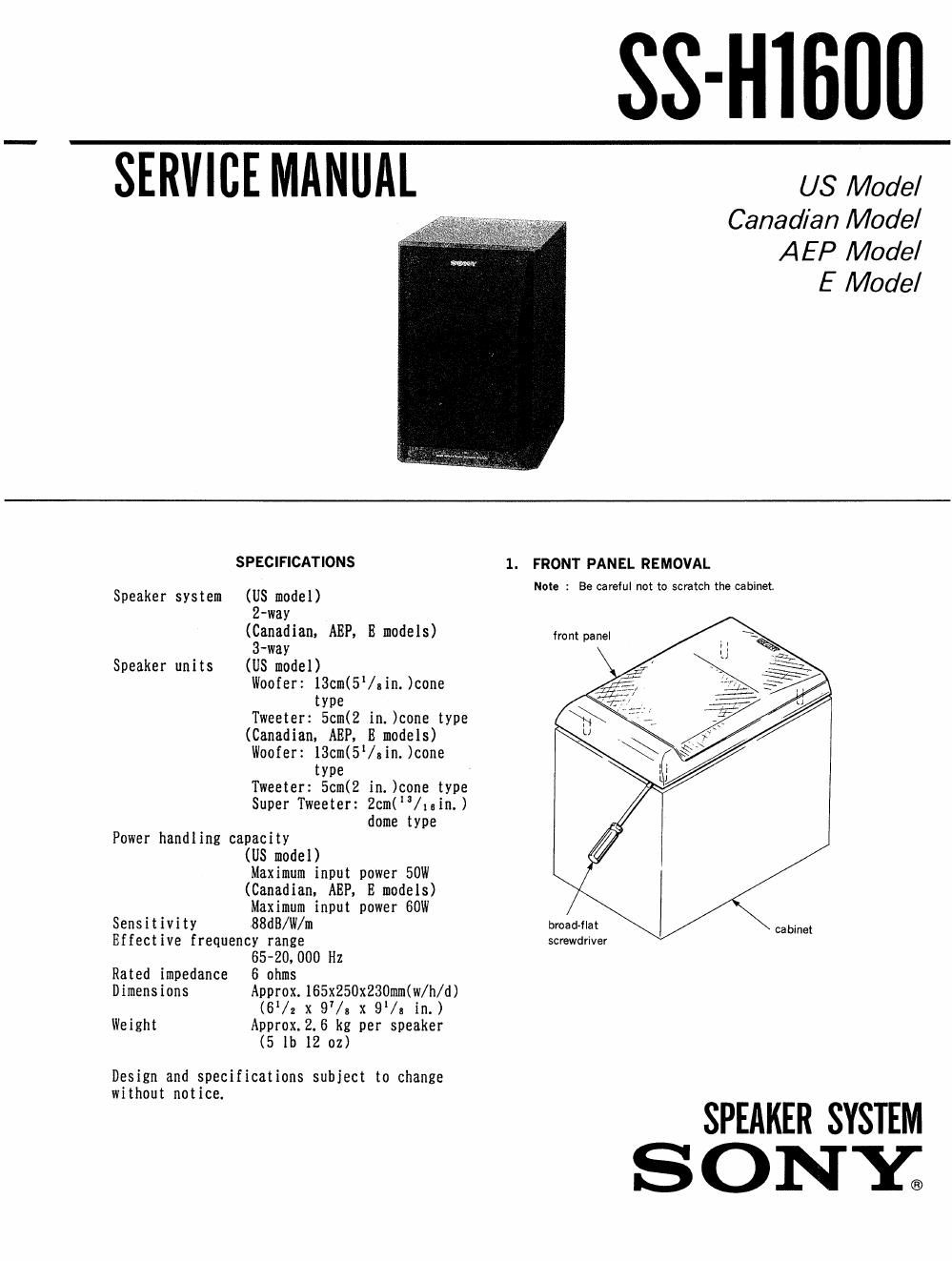

Page 1
SS-HIBIIII
SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
SPECIFICATIONS
Speaker system (US model)
2-way
(Canadian. AEP, E models)
3-way
Speaker units (US model)
Woofer: 13cm(5/sin. )cone
type
Tweeter: 5cm(2 in. )cone type
(Canadian, AEP, E models)
Woofer: 13cm(5/ain. )cone
tYpe
Tweeter: 5cm(2 in. )cone type
Super Tweeter: 2cm(/uin.)
dome type
Power handling capacity
(US model)
Maximum input power 50W
(Canadian, AEP, E models)
Maximum input power 60W
Sensitivity 88dB/W/m
Effective frequency range
$540,000 Hz
Rated impedance 6 ohms
Dimensions Approx. 165x250x230mm(w/h/d)
(61/2 X 97/3 X 9V3 in.)
Weight Approx. 2.6 kg per speaker
(5 lb 12 02)
Design and specifications subject to change
without notice.
1. FRONT PANEL REMOVAL
Note : Be careful not to scratch the cabinet.
front panel
broadd lat
screwdriver
ca binet
SPEAKER SYSTEM
SONE
Page 2
SS-H 1 600
2. WIRING DIAGRAM
(US model)
3 P2
TWEETER
SP!
WOOFER
(Canadian, AEP, E models)
SP2
MID RANGE
INPUT
