Sony ss gx 3 service manual

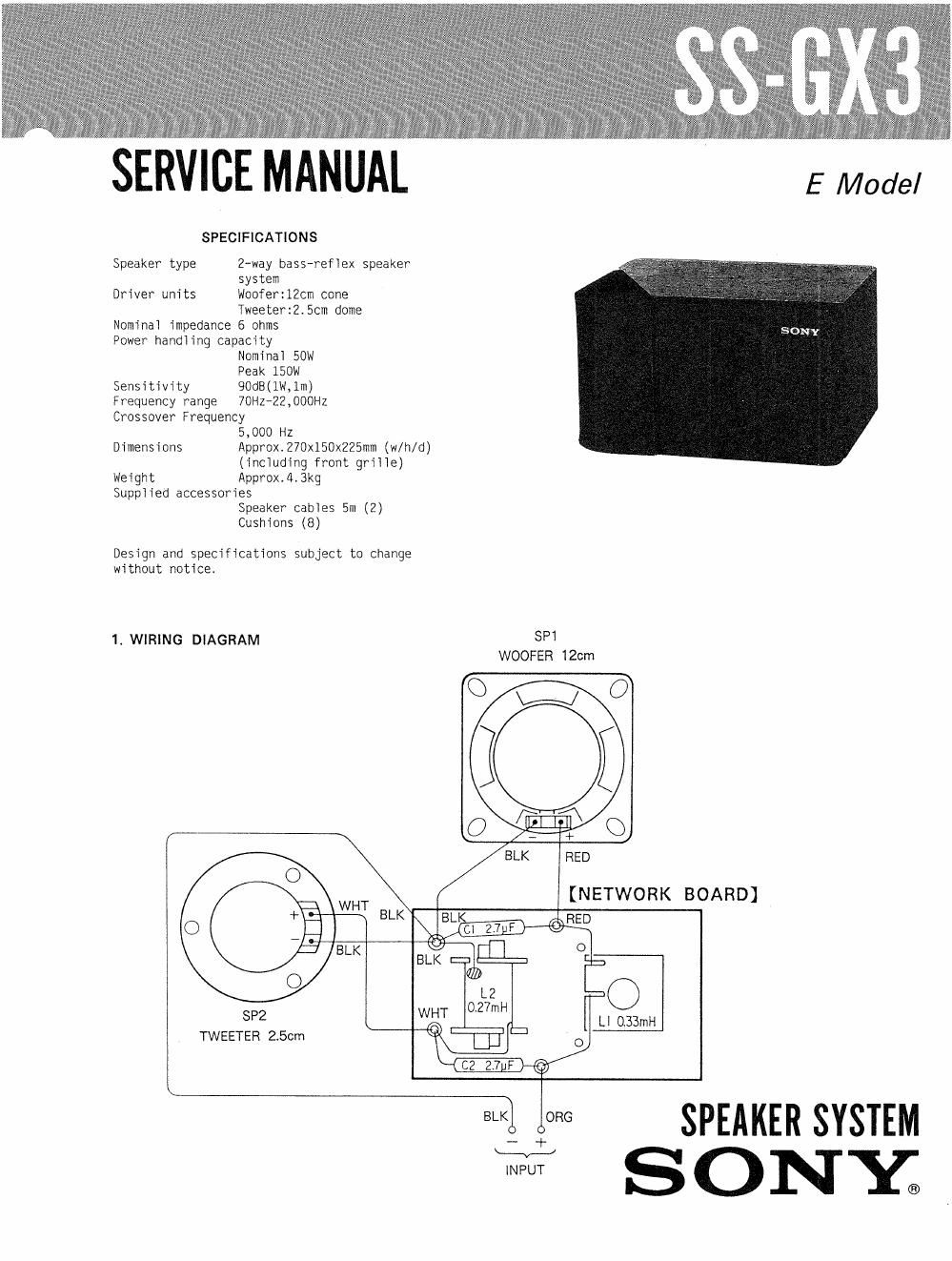

Page 1

SERVICE MANUAL

SPECIFICATIONS

Speaker type 2-way bass-reflex speaker
system
Driver units Woofer:12cm cone

Tweeter:2.5cm dome
Nominai impedance 6 ohms
Power handiing capacity

Nominai 50w

Peak 150W
Sensitivity 90dB(lw,1m)
Frequency range 70Hz~22,000H2
Crossover Frequency

5,000 Hz
Dimensions Approx Z70x150x225mm (w/h/d)
(including front griiie)
Weight Approx,4, 3kg

Suppiied accessories
Speaker cables 5m (2)
Cushions (8)

Design and specifications subject to change
without notice.

1. WIRING DIAGRAM

WOOFER 126m

SP1

O wm [NETWORK BOARD]
+ BLK BL RED
0 _ Q BLWK/ (L27 F O
C) L2
TWEET::22.5cm WHT 04mm 0 Lgrfl
C2 27 F
I SPEAKER SYSTEM

SONYQ

Page 2

SS-GX3

2, EXPLODED VIEW AND PARTS LIST

NOTE:

0 The mechanical parts with no reference
number in the exploded views are not
supplied.

0 The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.

0 Items marked "~k are not stocked since
they are seldom required for routine
service. Some delay should be anticl-
pated when ordering these items.

Due to standardization, parts with part
number suffix -X)( and -X may be dif-
ferent from the parts specified in the
components used on the set.

No. Part No. Description Remarks Ref.No. Part No. Description
I X-493I-205-I FRAME ASSY, GRILLE 9OI I-537-I53-II TERMINAL BOARD (SPEAKER)
2 *4~9I6-IO7-OI PACKING, TN
3 X-493I-208-I CABINET (RIGHT) ASSV, SPEAKER CI I-I36-484-II CAP, METALIZED PE FILM 2.7MF IO?4 IOOV
4 X-493I-209-I CABINET (LEFT) ASSY, SPEAKER C2 I-I36-484-II CAP, METALIZED PE FILM 2.7MF I0% IOOV
5 4v849-049-OI LID
7 4-9I6-I04-OI BOARD, NETWORK LI *I-459-665-II COIL, NETWORK (M) 0.33MH
L2 *I-459-819-II COIL, NETWORK (M) 027W
8 *4-916-106>OI PACKING, N
9 X-493I<206-I FRAME (RIGHT) ASSY, GRILLE SPI I-544~Z50-II SPEAKER, DOME (WOOFER)

IO X-4931-207-I
II 4-916-I18-OI
I2 4-874-6I4-II
I3 *4-905-625-01

97955754441

FRAME (LEFT) ASSV, GRILLE
SCREW (4) (3.5)(20), TAPPING
SCREW (4) (3.5XI4), TAPPING
LABEL, CAUTION

SP2

I-S44-249-II SPEAKER, DOME (THEETER)

ACCESSORY & PACKING MATERIAL

I-558-642-2I CORD, SPEAKER
3-75I-088-II MANUAL, INSTRUCTION
4-856-430-00 CUSHION (B)

4-916-101-01 CUSHION
4-916-II6-OI SHEET, PROTECTION
*4~93I-ZSO-OI INDIVIDUAL CARTON

Sony Corporation

Audio Group

_2i

English
900021271

Printed in Japan

© 1990.3

Published by Customer Relations and Service Group
