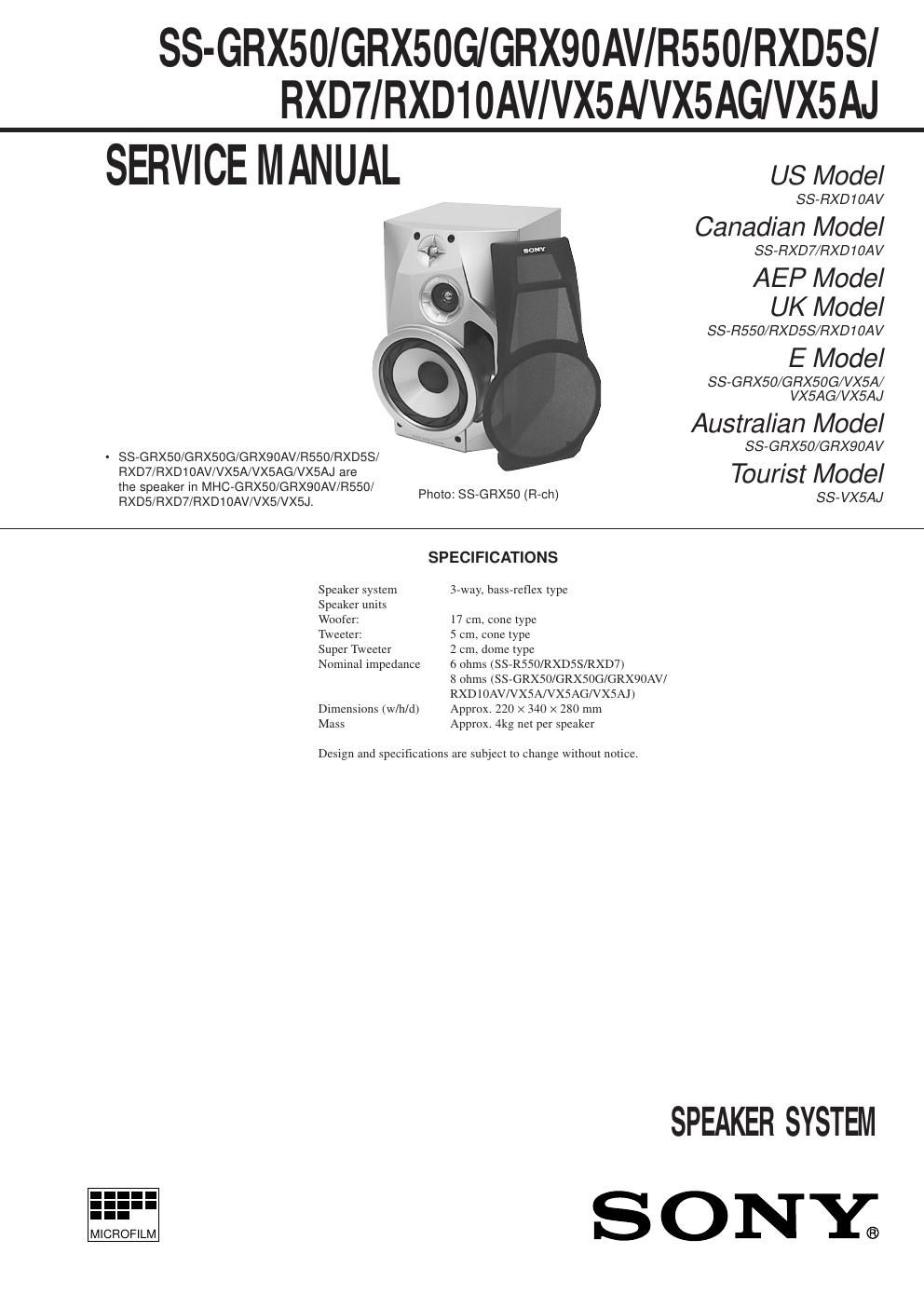

Sony ss grx 90 av service manual

Page 2

EXPLODED VIEW AND PARTS LIST

NOTE:

- -XX and -X mean standardized parts, so they
may have some difference from the original one.

- Color Indication of Appearance Pans
Example:

. Items marked * are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

- The mechanical parts with no reference num-

' Abbreviation
AED : North European

G : German
IA : Indonesian
Tl-I : Thai

KNOB. BALANCE (WHITE) . . . (RED)
T T

Pans Color Cabinets Color

L-CH

SP1

0/4

\\

not
supplied

her in the exploded Views are not supplied.

6

Rel. No. Part No. Descrigtion Remark Ref. No. Part No. Description Remark
1 X-4950-673-1 FRAME (L) ASSY, GRILLE * 6 A-4411-398-A CABINET (R) ASSY, SPEAKER
I X-4950-711-1 FRAME (R) ASSY, GRILLE (GRX50G/R550/VX5AG)
2 X-4950-652-1 PANEL (L) ASSY, FRONT (SILVER) SP1 1-529-262-11 SPEAKER (20m)
2 X-4950-690-1 PANEL (R) ASSY, FRONT (SILVER) SP2 1-529-197-11 SPEAKER (5cm) (VX5A: TH)
2 X-4950-909-1 PANEL (L) ASSY, FRONT (GLAY) SP2 1-529-202-11 SPEAKER (50m)(EXCEPT: TH)
SP2 1-529-283-11 SPEAKER (50m) (GRXSO: TH)
2 X-4950-910-1 PANEL (R) ASSY, FRONT (GLAY)
* 3 4-963-075-01 CATCHER SP3 1-529-200-11 SPEAKER (160m) (RXD10AV)
4 4-874-614-21 SCREW (4) (3.5X14), TAPPING SP3 1-529-282-11 SPEAKER (16cm) (GRXSO: TH)
5 4-942-029-01 PACKING SP3 1-529-285-11 SPEAKER (160m) (VX5A: TH)
* 6 A-4411-308-A CABINET (L) ASSY, SPEAKER SP3 1-529-286-11 SPEAKER (160m) (VX5A: E, IA/VXSAG)
(RXD10AV: G, AED) SP3 1-529-303-11 SPEAKER (160m)
(EXCEPT GRXSO: TH/RXDIOAV/VX5A/VX5AG)
* 6 A-4411-309-A CABINET (R) ASSY, SPEAKER
(RXD10AV: G, AED) ACCESSORIES 84 PACKING MATERIALS
GRXSOG/RSSO/VXSAG/RXDI DAV: G, AED/
VXSAJ) 1-558-848-11 CORD, SPEAKER (3m)
* 6 A-4411-311-A CABINET (R) ASSY, SPEAKER (EXCEPT 3-866-397-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
GRXSOG/RSSO/VXSAG/RXDIDAV: G, AED/ GERMAN, SPANISH, RUSSIAN, SWEDISH)
VXSAJ) (RXD10AV: AEP, G)
* 6 A-4411-396-A CABINET (L) ASSV, SPEAKER
(GRXSOG/R550/VX5AG)
Sony Corporation _ _ 99305168971
9-928-807-11 Home A&V Products Company aned In Japan ©1999'2

_2_

Published by Quality Assurance Dept.
(Shinagawa)
