Sony ss grx 80 jg service manual
This is the 2 pages manual for sony ss grx 80 jg service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

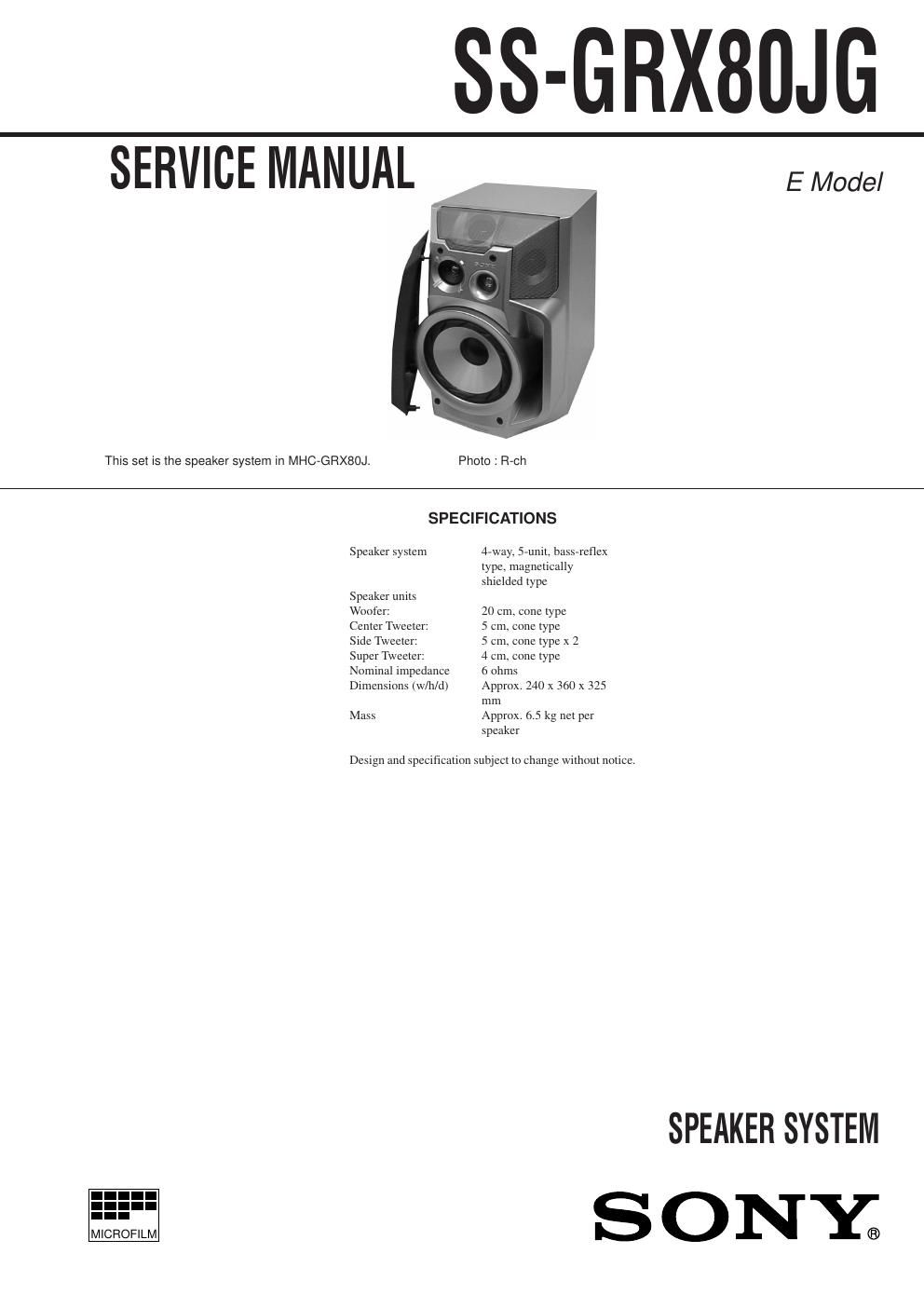

Extracted text from sony ss grx 80 jg service manual (Ocr-read)
Page 1
2 SP5 SP4 SP2 SP3 SP1 4 4 6 5 7 7 4 2 3 3 13444 4 4 NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST 1 X-4950-603-1 FRAME ASSY, GRILLE 2 X-4950-911-1 PANEL (L) ASSY, FRONT 2 X-4950-912-1 PANEL (R) ASSY, FRONT *3 4-963-075-01 CATCHER 4 4-874-614-21 SCREW (4) (3.5x14), TAPPING 5 4-214-594-01 PACKING *6 A-4411-410-A CABINET (L) ASSY, SPEAKER *6 A-4411-412-A CABINET (R) ASSY, SPEAKER 7 4-942-029-01 PACKING Sony Corporation Home Audio Company 9-928-919-11 99E091622-1D Printed in Japan © 1999. 5 Published by Quality Assurance Dept. SS-GRX80JG Ref. No. Part No. Description Remark SP1 1-529-284-11 SPEAKER (18cm) (Woofer) SP2 1-529-425-11 SPEAKER (5cm) (Center Tweeter) SP3 1-529-198-11 SPEAKER (4cm) (Super Tweeter) SP4 1-505-510-11 SPEAKER (5cm) (Side Tweeter) SP5 1-505-510-11 SPEAKER (5cm) (Side Tweeter) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** 1-558-848-11 CORD, SPEAKER R-ch
