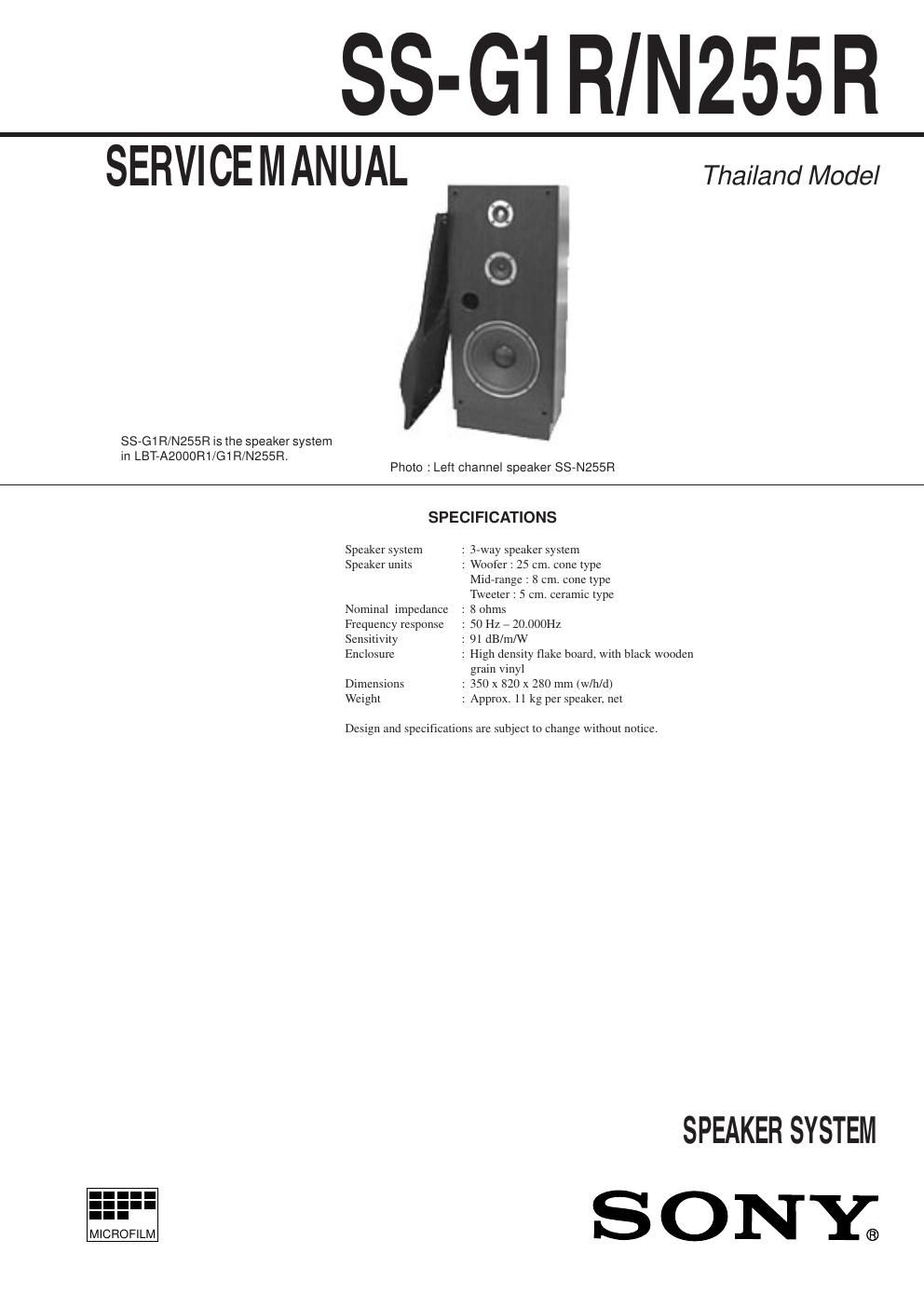

sony ss g 1 r service manual

Extracted text from sony ss g 1 r service manual (Ocr-read)


Page 1

Ð 2 Ð EXPLODED VIEW AND PARTS LIST ¥The mechanical parts with no reference number in the exploded views are not supplied. NOTE : ¥Items marked Ò * Óare not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 9-960-985-11 Sony Corporation Home A&V Products Company Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ÐÐÐÐÐÐÐ ÐÐÐÐÐÐÐ ÐÐÐÐÐÐÐÐÐÐ ÐÐÐÐÐÐÐ ÐÐÐÐÐÐÐ ÐÐÐÐÐÐÐ ÐÐÐÐÐÐÐÐÐÐ ÐÐÐÐÐÐ 1 X-4945-149-1 FRAME ASSY, GRILLE (G1R) 1 X-4947-614-1 GRILLE ASSY (L), FRAME (N255R) 1 X-4947-615-1 GRILLE ASSY (R), FRAME (N255R) 2 7-621-846-40 SCREW +P 4X16 TYPE4 3 4-965-095-01 CLIPPER, CORD 4 1-782-477-11 CORD, SPEAKER *5 X-4948-708-2 CABINET ASSY, SPEAKER SP1 1-504-976-11 SPEAKER (25 cm) SP2 1-504-974-11 SPEAKER (8 cm) SP3 1-504-973-11 SPEAKER (5 cm) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 3-860-217-01 MANUAL INSTRUCTION (THAI) (G1R) 3-860-220-01 MANUAL INSTRUCTION (THAI) (N255R) 97E02023-1D Printed in Japan © 1997.5 Published by General Engineering Dept. (Shibaura) 12 2 23 4 5 N255R (L-ch) G1R 1 SP1 SP2 SP3
