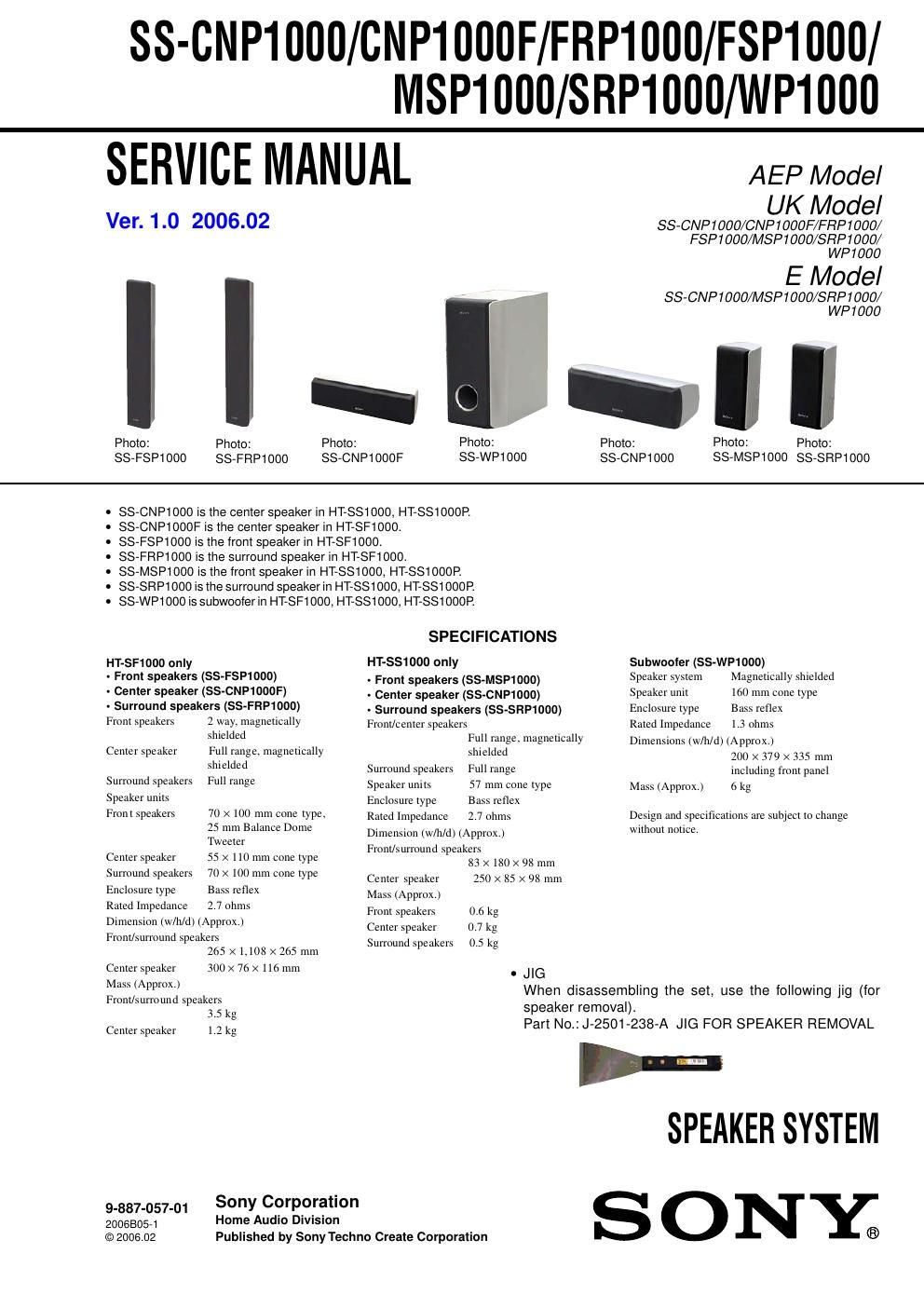

Sony ss frp 1000 service manual
This is the 6 pages manual for sony ss frp 1000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss frp 1000 service manual (Ocr-read)
Page 1
2 SS-CNP1000/CNP1000F/FRP1000/FSP1000/MSP1000/SRP1000/WP1000 -This set can be disassembled in the order shown below. 1-1. FRONT PANEL (SS-WP1000) SECTION 1 DISASSEMBLY Note 1: Remove the front panel assy by paying attention particulaly to the periphyery of eight bosses where the front panel assy bonded tightly. Note 2: Take care not to damage the set by applying an excessive force. boss 1 Insert the jig (J-2051-238-A) into a space made by inserting the screwdriver, and raise the front panel assy gradually. 2 front panel assy boss
Page 2
3 SS-CNP1000/CNP1000F/FRP1000/FSP1000/MSP1000/SRP1000/WP1000SECTION 2 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 A-1163-129-A OVERALL ASSY (SS-MSP1000) (FRONT) (EXCEPT E51) 1 A-1176-867-A OVERALL ASSY (SS-MSP1000) (FRONT) (E51) 2 A-1163-131-A OVERALL ASSY (SS-CNP1000) (CENTER) (EXCEPT E51)2 A-1176-869-A OVERALL ASSY (SS-CNP1000) (CENTER) (E51) 3 A-1163-133-A OVERALL ASSY (SS-SRP1000) (SURROUND) (EXCEPT E51) 3 A-1176-871-A OVERALL ASSY (SS-SRP1000) (SURROUND) (E51) 2-1. SS-CNP1000/MSP1000/SRP1000 -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color - Abbreviation E51 : Chilian and Peruvian models 2 1 3
