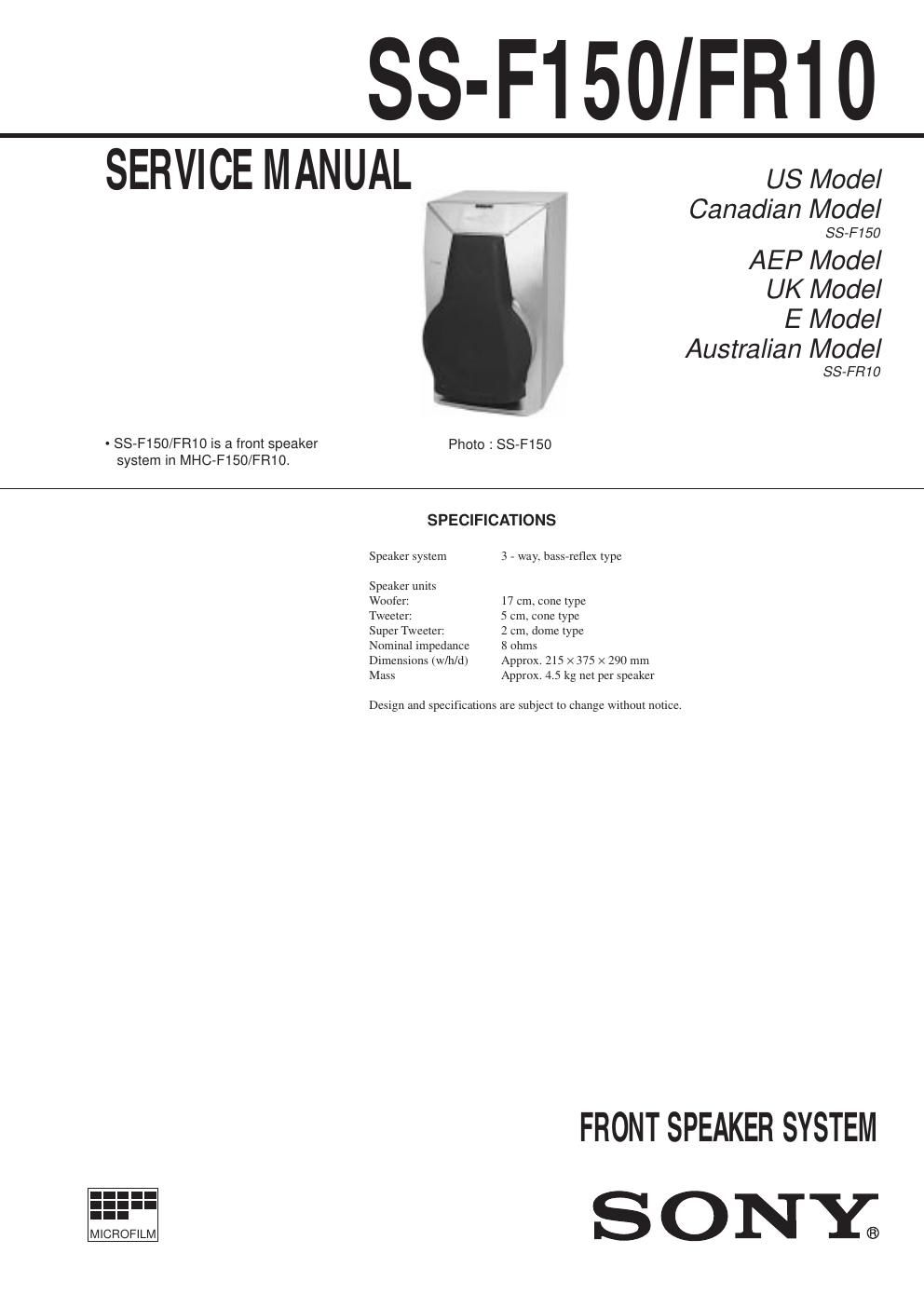

Sony ss fr 10 service manual
This is the 2 pages manual for sony ss fr 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss fr 10 service manual (Ocr-read)
Page 1
Ñ 2 Ñ Sony Corporation Home A&V Products Company 9-922-840-11 98D1689-1 Printed in Japan © 1998.4 Published by Quality Assurance Dept. (Shibaura) EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4949-939-1 FRAME ASSY, GRILLE *2 4-963-075-01 CATCHER 3 X-4949-940-1 PANEL ASSY, FRONT (F150) 3 X-4950-128-1 PANEL ASSY, FRONT (FR10) 4 4-874-614-61 SCREW (4) (3.5 ´ 16), TAPPING 5 4-942-029-01 PACKING *6 A-4411-060-A CABINET ASSY, SPEAKER 7 1-537-332-13 TARMINAL BOARD 8 4-900-329-01 PACKING SP1 1-505-563-11 SPEAKER (2 cm) SP2 1-505-861-11 SPEAKER (5 cm) SP3 1-505-940-11 SPEAKER (16 cm) ACCESSORIES & PACKING MATERIALS ******************************* 1-769-306-11 CORD, SPEAKER NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 2 2 1 48 57 4 36 SP1 SP2 SP3
