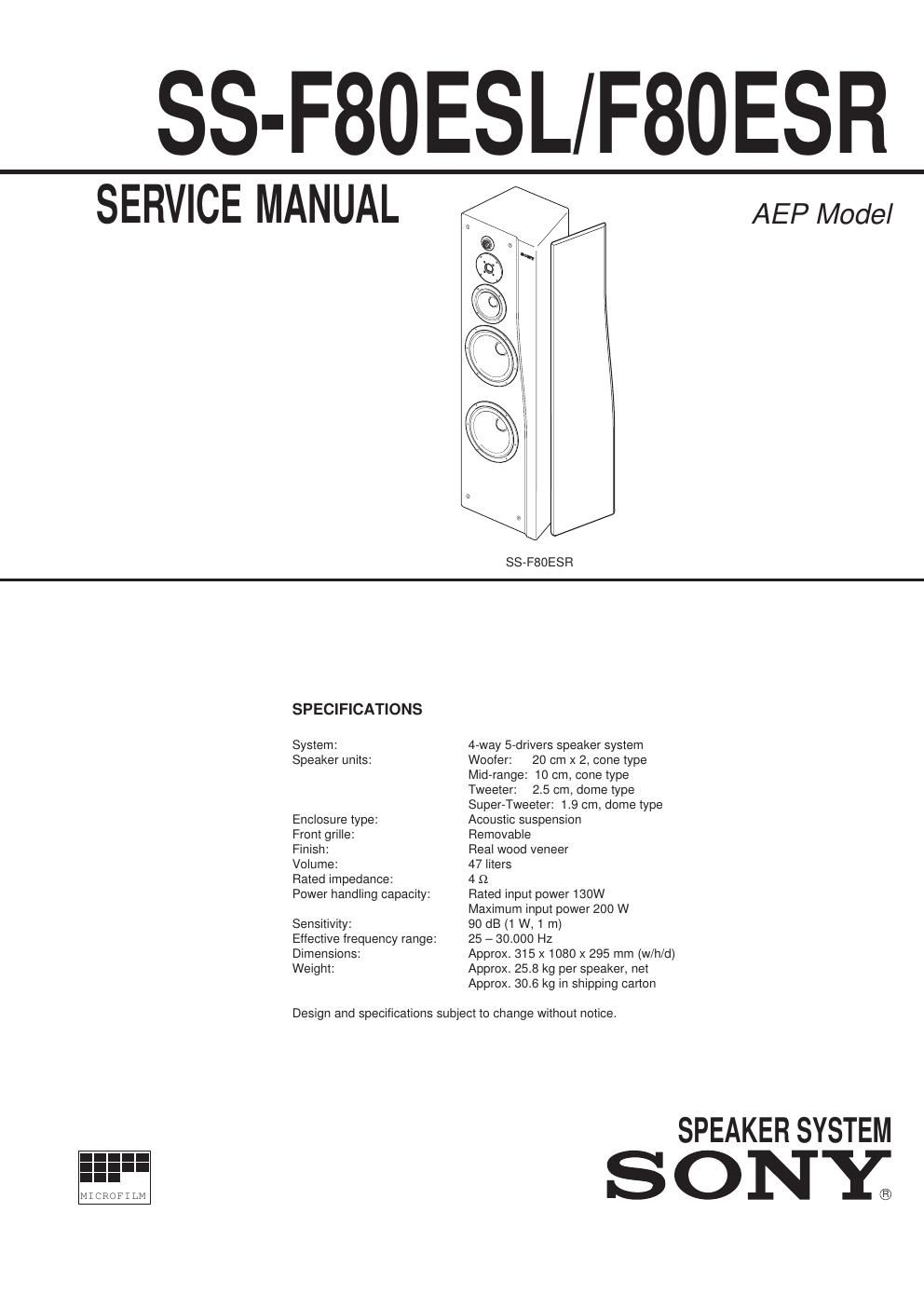

Page 1
- 2 -
SS-F80ESL/F80ESR
9-959-900-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
¥ SP3 and SP4 are removed when you remove
the upper SP1 and insert your hand to
the hole and push out from
the inside afterward.
1. EXPLODED VIEW AND PARTS LIST
Consumer A&V Products Company
Home A&V Division
Sony Corporation English
94K7547-1
Printed in Germany
© 1994.11
Published by Home A&V Div. Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4945-443-1 SPEAKER CABINET ASSY (SS-F80ESL)
1 X-4945-445-1 SPEAKER CABINET ASSY (SS-F80ESR)
2 X-4945-444-1 GRILLE FRAME ASSY (SS-F80ESL)
2 X-4945-446-1 GRILLE FRAME ASSY (SS-F80ESR)
3 1-589-663-11 MOUNTED P.C.B.
4 4-961-784-01 SCREW P 4.0 X 25 T15
5 4-971-744-01 SCREW P 3.5 X 20 T15
6 4-960-362-01 SCREW +P 4.0 X 19
7 1-537-794-11 TERMINAL BOARD Ref. No. Part No. Description Remark
SP1 1-504-678-11 SPEAKER (Woofer)
SP2 1-504-662-11 SPEAKER (Mid range)
SP3 1-504-664-11 SPEAKER (Tweeter)
SP4 1-504-679-11 SPEAKER (Super-Tweeter)
