Sony ss f 630 service manual
This is the 2 pages manual for sony ss f 630 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss f 630 service manual (Ocr-read)

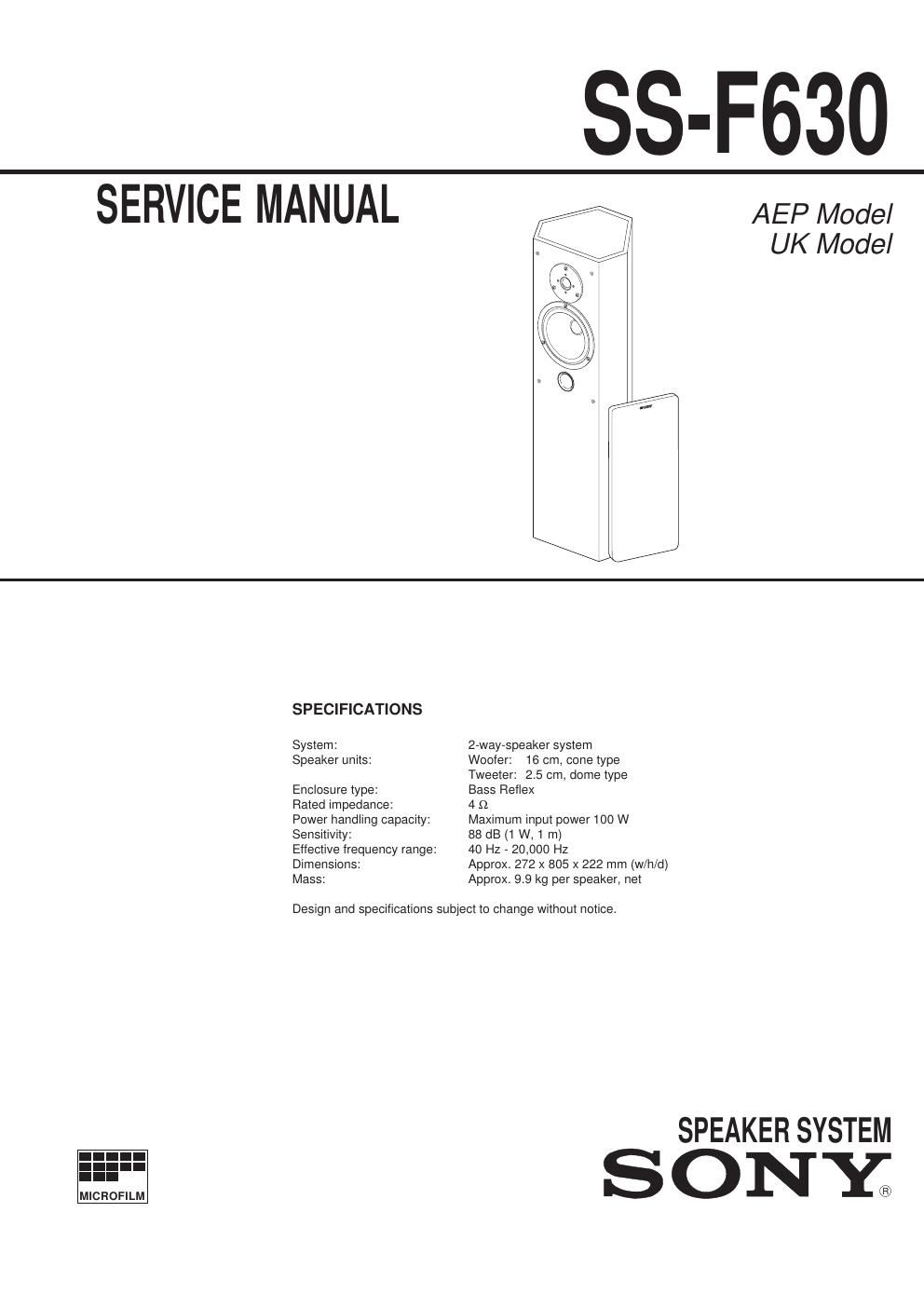

Page 1
- 2 -
9-960-306-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Consumer A&V Products Company
Home A&V Division
Ref. No. Part No. Description Remark
1 X-4946-305-1 SPEAKER CABINET ASSY
2 X-4946-303-1 GRILLE FRAME ASSY
3 1-589-777-11 MOUNTED P.C.B.
4 4-977-839-01 SCREW P 4.0 X 20 T15
SP1 1-504-959-21 SPEAKER (16 cm) (Woofer)
SP2 1-504-960-11 SPEAKER (2.5 cm) (Tweeter) Ref. No. Part No. Description Remark
