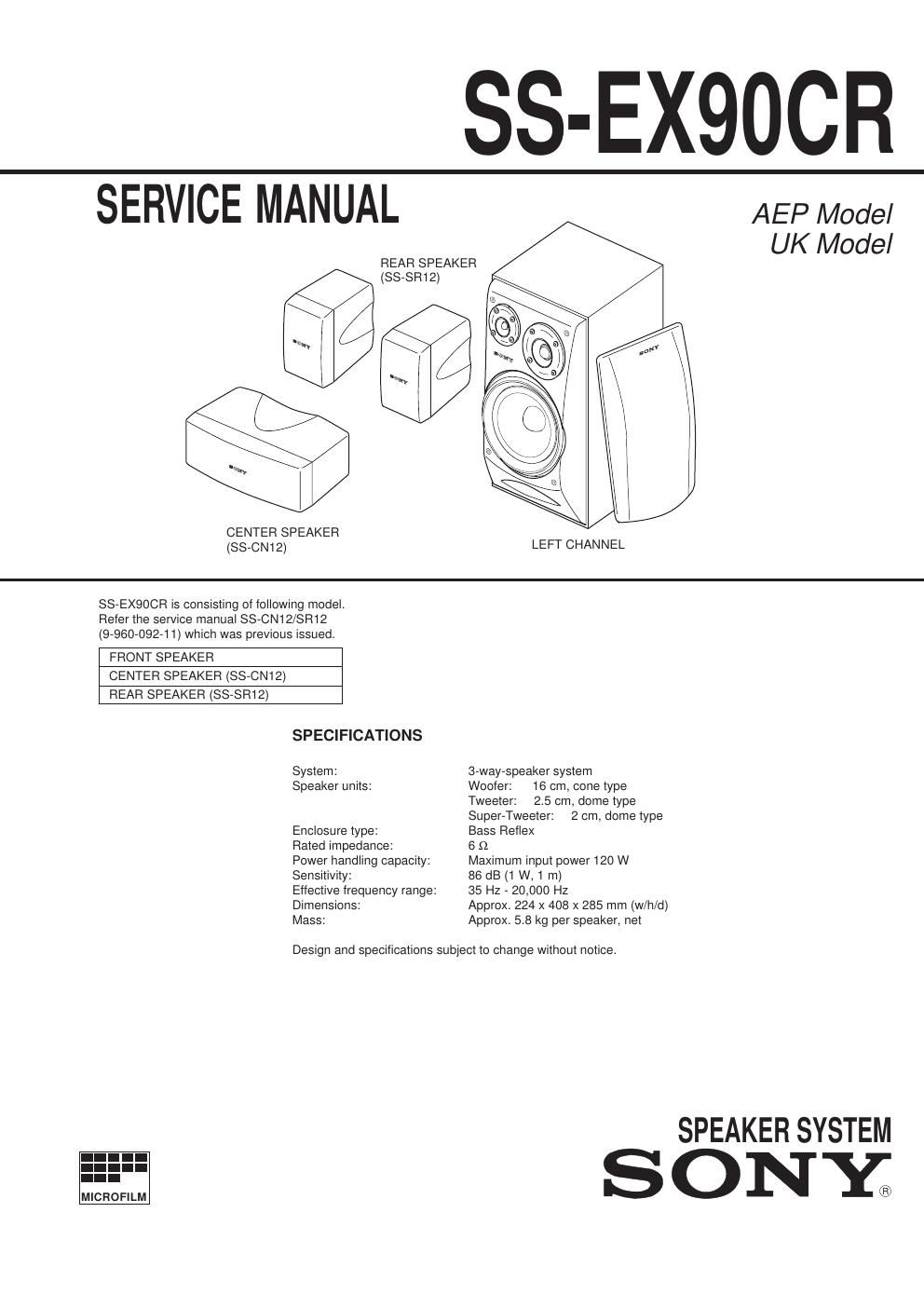

Sony ss ex 90 cr service manual

This is the 2 pages manual for sony ss ex 90 cr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
sony ss ex 90 cr service manual

Extracted text from sony ss ex 90 cr service manual (Ocr-read)

Page 1

- 2 - SS-EX90CR 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark *4-972-824-01 INDIVIDUAL CARTON *4-972-814-01 CUSHION (BF) *4-972-815-01 CUSHION (R) *4-972-825-01 CUSHION (T1) *4-972-826-01 CUSHION (T2) 3-798-294-11 INSTRUCTION MANUAL X-4945-925-1 ACCESSORY ASSY Ref. No. Part No. Description Remark 1 X-4945-853-1 SPEAKER CABINET (L) ASSY 1 X-4945-854-1 SPEAKER CABINET (R) ASSY 2 X-4945-850-1 GRILLE FRAME ASSY 3 1-589-714-11 MOUNTED P.C.B. 4 4-972-802-01 GASKET (W) 5 4-972-805-01 COSMETIC FRAME (W) 6 4-971-744-01 SCREW P 3.5 X 20 T15 SP1 1-504-839-21 SPEAKER (Woofer) SP2 1-504-838-11 SPEAKER (Tweeter) SP3 1-504-835-11 SPEAKER (Super-Tweeter) 9-960-237-11 English 95D7560-1 Printed in Germany © 1995.4 Published by Home A&V Div. Quality Engineering Dept. 3 1 24 6 5 6 6 SP3 SP1 SP2 Left channel unit
