Sony ss ex 880 service manual
This is the 2 pages manual for sony ss ex 880 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ex 880 service manual (Ocr-read)

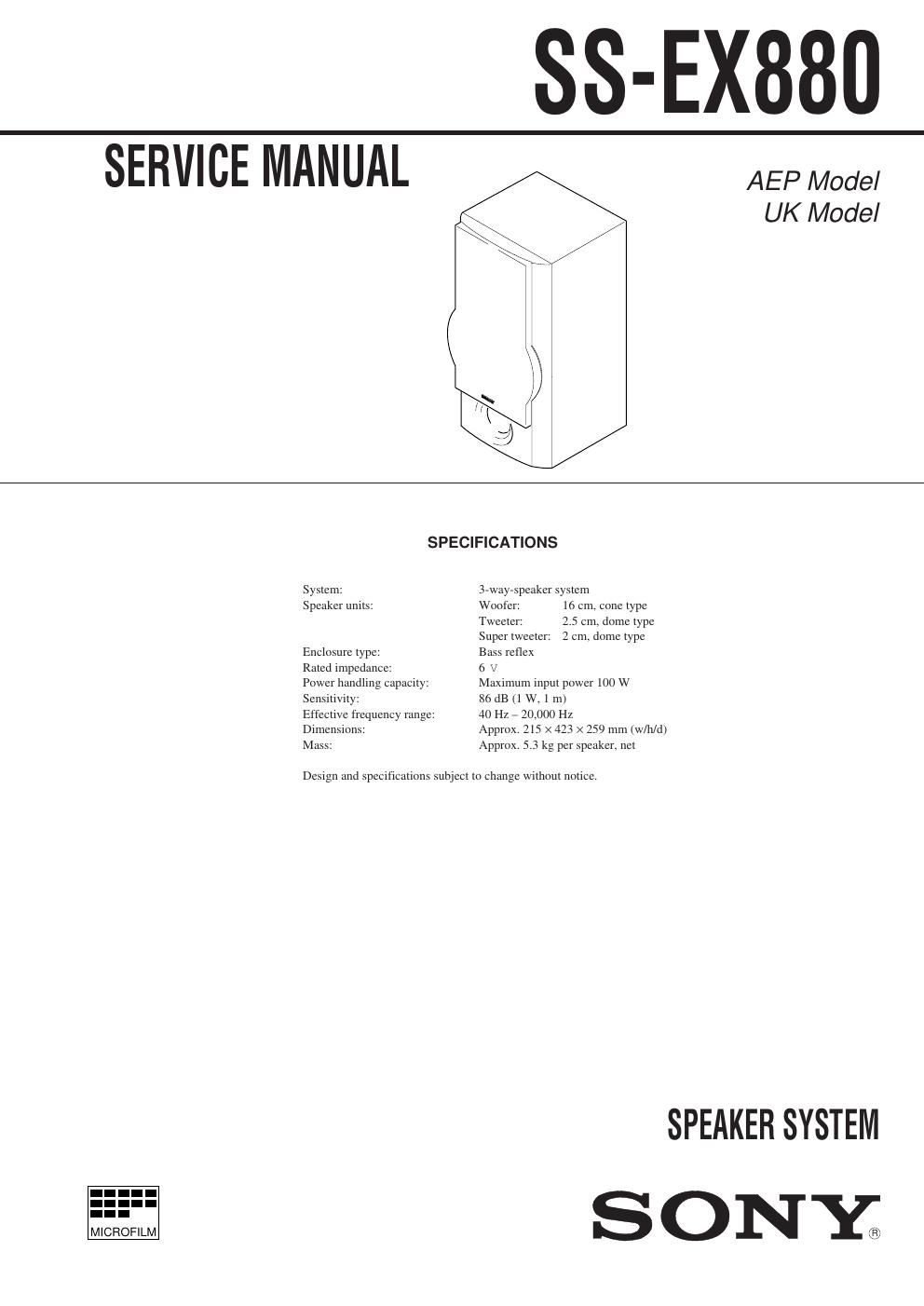

Page 1
SS-EX880
Ñ 2 Ñ
Sony Corporation
Home A&V Products Company
98F7549-1
Printed in Germany © 1998. 6
Published by Quality Assurance Dept.
(Shibaura)
9-922-918-11
1. EXPLODED VIEW AND PARTS LIST
NOTE:
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-4949-314-1 GRILLE FRAME ASSY
2 4-990-505-01 CATCHER
3 4-996-537-01 FRONT PANEL
4 4-212-182-01 SCREW + B 3.5 X 14
5 4-997-487-01 SIDE PANEL (L)
6 4-997-488-01 SIDE PANEL (R)
7 4-212-183-01 SCREW + P 4 X 18
8 4-996-531-01 PACKING
9 4-996-530-01 DUCT
10 4-996-528-01 SPEAKER CABINET
11 4-974-051-01 ACOUSTIC ABSORBENT
12 1-761-060-11 MOUNTED P.C.B.
SP1 1-505-910-11 SPEAKER (16 cm) (WOOFER)
¥The mechanical parts with no reference
number in the exploded views are not
supplied.
SP2 1-505-911-11 SPEAKER (2, 2.5 cm)
(SUPER TWEETER, TWEETER)
