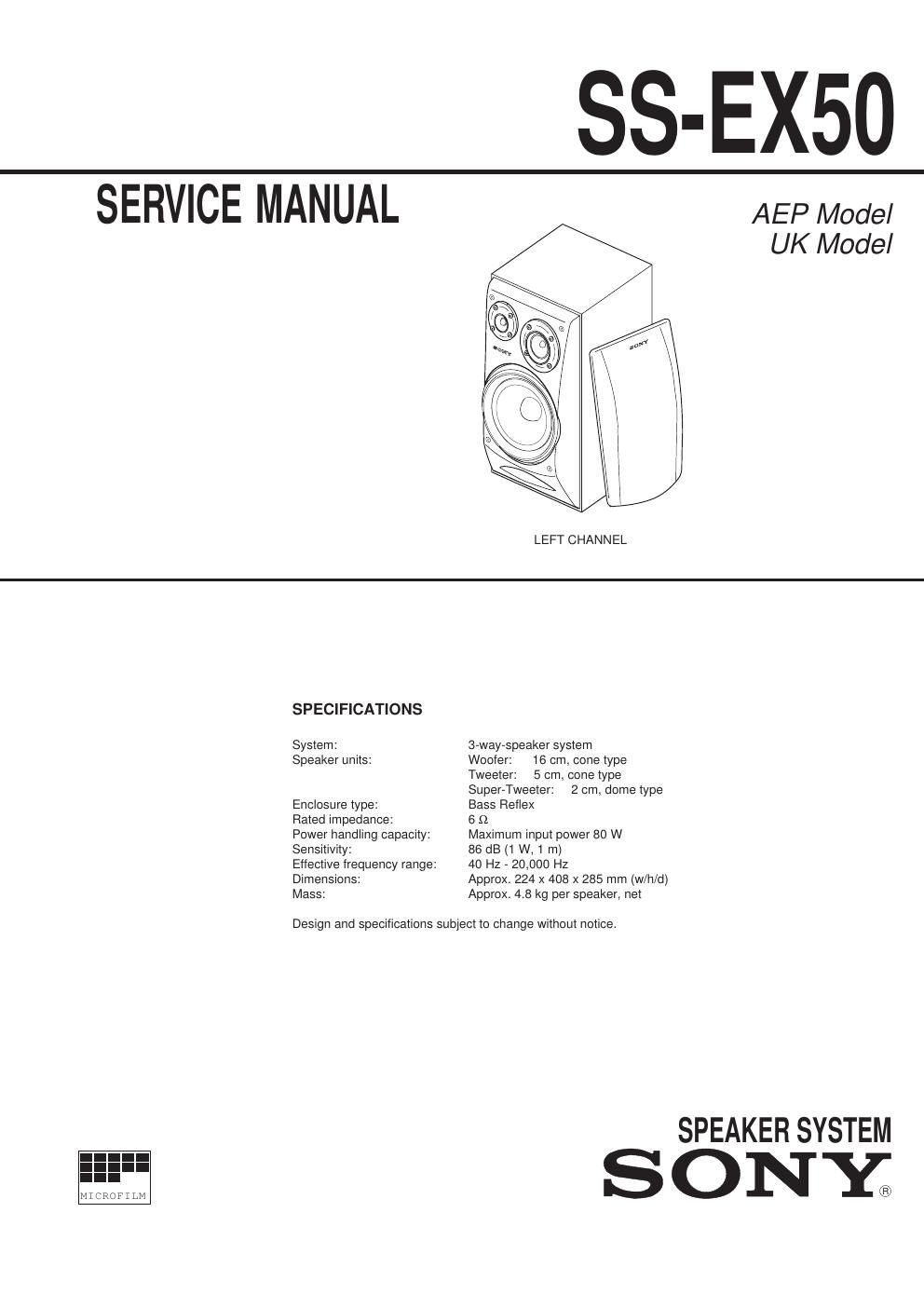

Sony ss ex 50 service manual

Page 1

- 2 - SS-EX50 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ Abbreviation SN. : SERIAL No. Ref. No. Part No. Description Remark SP1 1-504-837-11 SPEAKER (Woofer) SP2 1-504-836-11 SPEAKER (Tweeter) SP3 1-504-835-11 SPEAKER (Super-Tweeter) *4-972-812-01 CARTON (SN. 5000001 AND LATER) *4-973-816-01 CARTON (SN. 6000001 AND LATER) *4-972-813-01 CUSHION (TF) *4-972-814-01 CUSHION (BF) *4-972-815-01 CUSHION (R) 3-798-292-11 INSTRUCTION MANUAL (SN. 5000001 AND LATER) 3-798-687-11 INSTRUCTION MANUAL (SN. 6000001 AND LATER) 1-751-495-11 SPEAKER CORD (SN. 5000001 AND LATER) 1-751-496-11 SPEAKER CORD (SN. 6000001 AND LATER) Ref. No. Part No. Description Remark 1 X-4945-848-1 SPEAKER CABINET (L) ASSY (SN. 5000001 AND LATER) X-4945-849-1 SPEAKER CABINET (R) ASSY (SN. 5000001 AND LATER) X-4946-001-1 SPEAKER CABINET (L) ASSY (SN. 6000001 AND LATER) X-4946-002-1 SPEAKER CABINET (R) ASSY (SN. 6000001 AND LATER) 2 X-4945-850-1 GRILLE FRAME ASSY (SN. 5000001 AND LATER) X-4946-003-1 GRILLE FRAME ASSY (SN. 6000001 AND LATER) 3 1-589-712-11 MOUNTED P.C.B. 4 4-972-802-01 GASKET (W) 5 4-972-805-01 COSMETIC FRAME (W) 6 4-971-744-01 SCREW P 3.5 X 20 T15 English 95C7562-1 Printed in Germany © 1995.3 Published by Home A&V Div. Quality Engineering Dept. 9-960-143-11 SP1 1 23 4 SP2 SP3 6 6 6 5 Left channel unit
