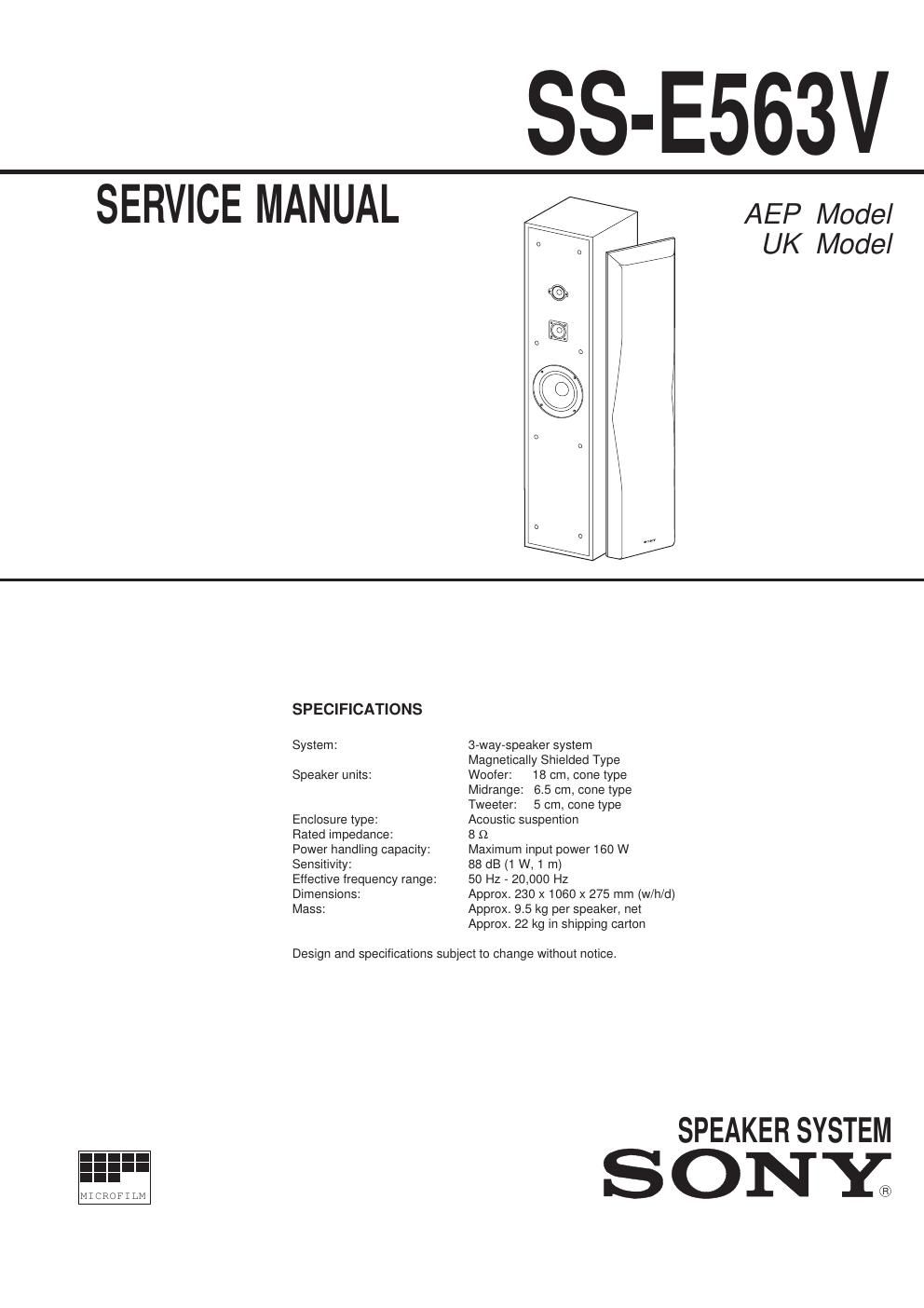

Sony ss e 563 v service manual
This is the 2 pages manual for sony ss e 563 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss e 563 v service manual (Ocr-read)
Page 1
- 2 -
SS-E563V
9-960-783-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Home A&V Products Company
English
96H7553-1
Printed in Germany
© 1996.8
Published by Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4945-183-1 GRILLE FRAME ASSY
2 4-985-797-01 SPEAKER CABINET
3 1-589-690-11 MOUNTED P.C.B.
4 4-960-362-01 SCREW +P 4 X 19
SP1 1-504-706-11 SPEAKER (18 cm CONE)
SP2 1-504-375-11 SPEAKER (6.5 cm CONE)
SP3 1-504-378-11 SPEAKER (5 cm CONE) Ref. No. Part No. Description Remark
