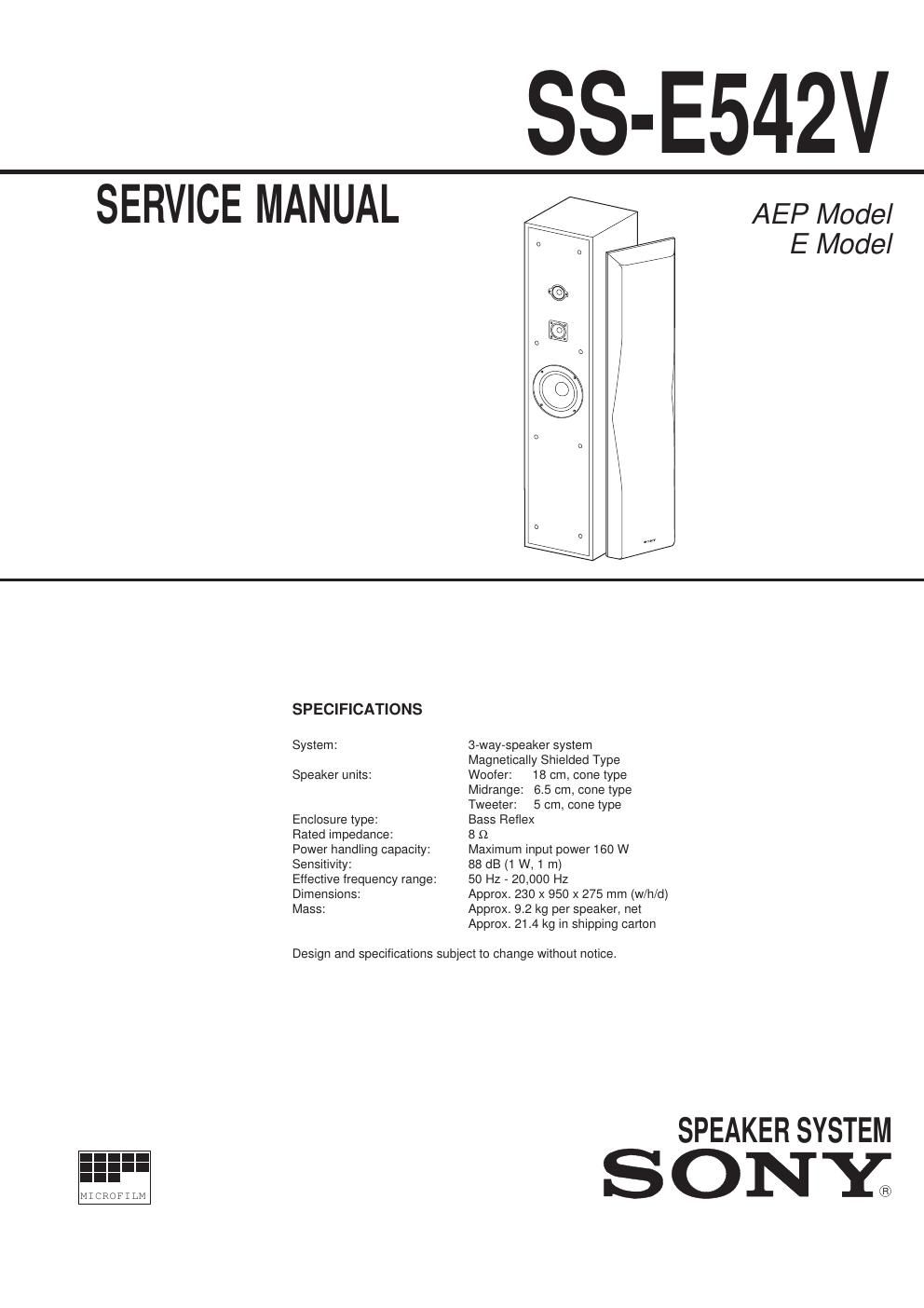

- 2 -
SS-E542V
9-959-867-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Consumer A&V Products Company
Home A&V Division
English
94J7565-1
Printed in Germany
© 1994.10
Published by Home A&V Div. Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4945-537-1 SPEAKER CABINET ASSY
2 X-4945-183-1 GRILLE FRAME ASSY
3 1-589-690-11 MOUNTED P.C.B.
4 4-960-363-01 SCREW +P 3.5 X 16
SP1 1-504-706-11 SPEAKER (18 cm CONE)
SP2 1-504-375-11 SPEAKER (6.5 cm CONE)
SP3 1-504-378-11 SPEAKER (5 cm CONE) Ref. No. Part No. Description Remark
