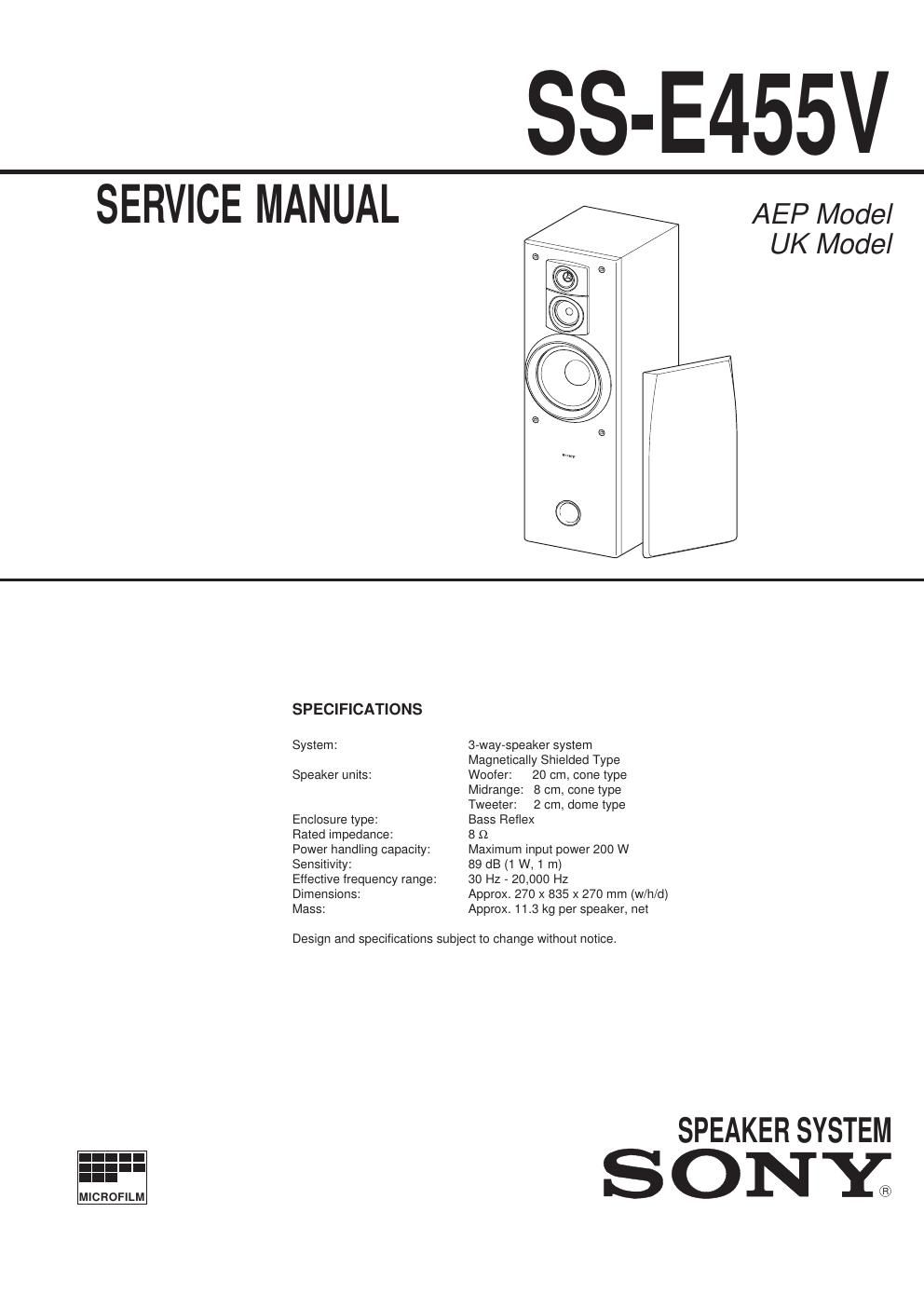

Sony ss e 455 v service manual
This is the 2 pages manual for sony ss e 455 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss e 455 v service manual (Ocr-read)
Page 1
- 2 -
SS-E455V
9-960-284-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Consumer A&V Products Company
Home A&V Division
English
95E7560-1
Printed in Germany
© 1995.5
Published by Home A&V Div. Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4946-308-1 SPEAKER CABINET ASSY
2 X-4943-892-1 GRILLE FRAME ASSY
3 4-962-887-01 COSMETIC FRAME (TM)
4 4-962-888-01 COSMETIC FRAME (W)
5 1-589-550-11 MOUNTED P.C.B.
6 4-960-363-01 SCREW +B 3.5 X 16
7 1-537-529-11 TERMINAL BOARD
8 4-963-423-01 SCREW +P 4.0 X 50
9 4-962-102-01 WASHER
10 4-962-980-01 WASHER
SP1 1-504-638-11 SPEAKER (20 cm) (Woofer)
SP2 1-504-209-11 SPEAKER (8 cm) (Mid range)
SP3 1-504-379-11 SPEAKER (2 cm) (Tweeter) Ref. No. Part No. Description Remark
