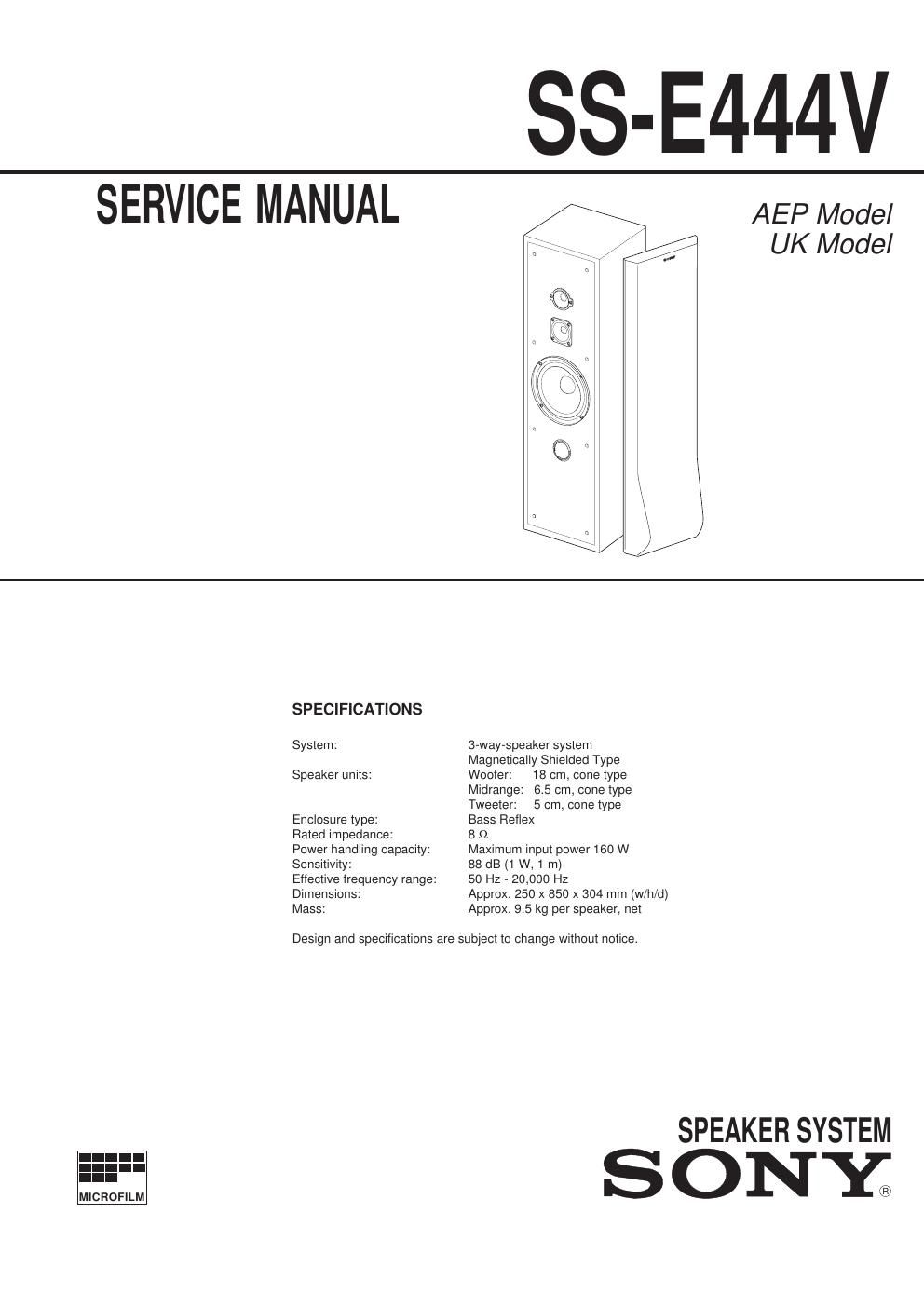

Page 1
- 2 -
SS-E444V
9-960-390-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Consumer A&V Products Company
Home A&V Division
English
95H7555-1
Printed in Germany
© 1995.8
Published by Home A&V Div. Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4946-408-1 SPEAKER CABINET ASSY
2 X-4946-407-1 GRILLE FRAME ASSY
3 1-589-690-11 MOUNTED P.C.B.
4 4-960-362-01 SCREW +P 4 X 19
SP1 1-504-167-11 SPEAKER (18 cm) (Woofer)
SP2 1-504-375-11 SPEAKER (6.5 cm) (Mid range)
SP3 1-504-378-11 SPEAKER (5 cm) (Tweeter) Ref. No. Part No. Description Remark
