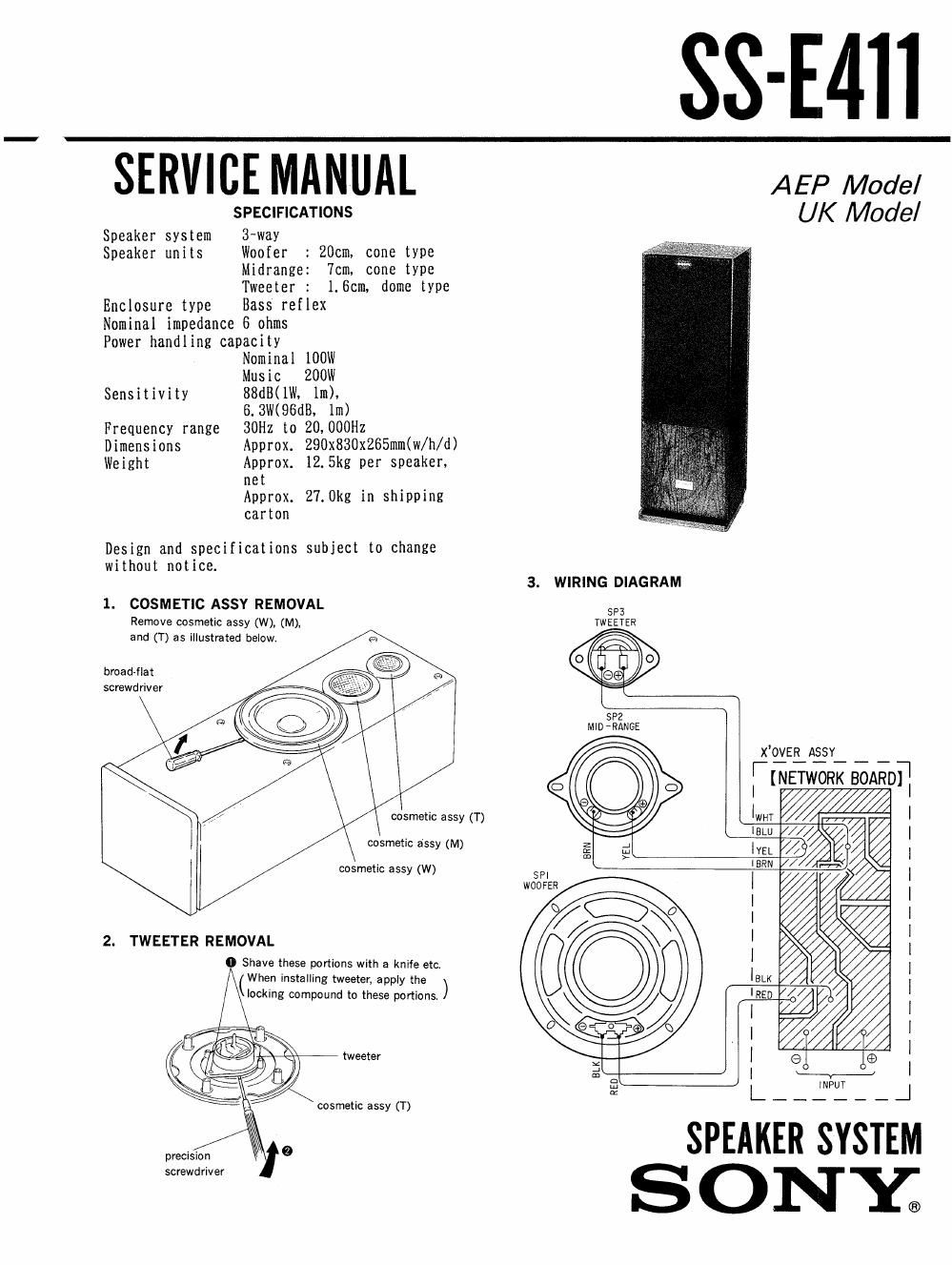

Page 1
SS-E4II
SERVICE MANUAL
SPECIFICATIONS
Speaker system 3-way
Speaker units Woofer : 20cm, cone type
Midrange: 7cm, cone type
Tweeter : 1.6cm, dome type
Enclosure type Bass reflex
Nominal impedance 6 ohms
Power handling capacity
Nominal 100W
Music 200W
Sensitivity 88dB(1L Ink
6. 3W(96dB, 1m)
Frequency range 30Hz to 20,000Hz
Dimensions Approx. 290x830x265mm(w/h/d)
Weight Approx. 12.5kg per speaken
net
Approx. 27.0kg in shipping
carton
Design and specifications subject to change
without notice
3. WIRING DIAGRAM
1. COSMETIC ASSY REMOVAL
5P3
Remove cosmetic assy (W), (M), TWEETER
and (T) as illustrated below,
broadfiat
screwdriver
cosmetic assy (T)
cosmetic assy (M)
cosmetic assy (W)
AE P Model
UK Model
MEL/ii. _ _
lI-INETWORK BOARDI-I
I
WHT /// 7-
f M Q
SPI
WOOFER
2. TWEETER REMOVAL
l Shave these portions with a knife etc.
When installing tweeter, apply the
locking compound to these portions )
tweeter
BLK
RED
cosmetic assy (T)
precvsio n
screwd riv er
SPEAKER SYSTEM
SONY;
Page 2
SS-E411
4. EXPLODED VIEW AND PARTS LIST
NOTE:
0 The mechanical parts with no reference
number in the exploded views are not
supplied.
901
N9;_ Part No. Description ELECTRICAL PARTS
1 X-4941-097-1 FRAME ASSY, GRILLE 59;. Part No. Description
2 X-4941-115-1 COSMETIC ASSY(T)
3 X-494I-114-1 COSMETIC ASSY(M) 901 T-8150-380-A X'OVER ASSY
4 X-4941-113-1 COSMETIC ASSY(W) SP1 T-8110-468-1 WOOFER
5 T-8150-381-A SPEAKER BOX ASSY SP2 1-544-268-11 MID-RANGE
6 T-8150-573-l TAPPING SCREW +P 4X15 SP3 1-544-135-11 TWEBTER
ACCESSORY & PACKING MATERIAL
T-8151-258-1 MANUAL, INSTRUCTION
English
Sony Corporation Ems;
9-956-404-11 Audio Group © 1991. 4
*2, Published by Customer Ralafions and Service Group
