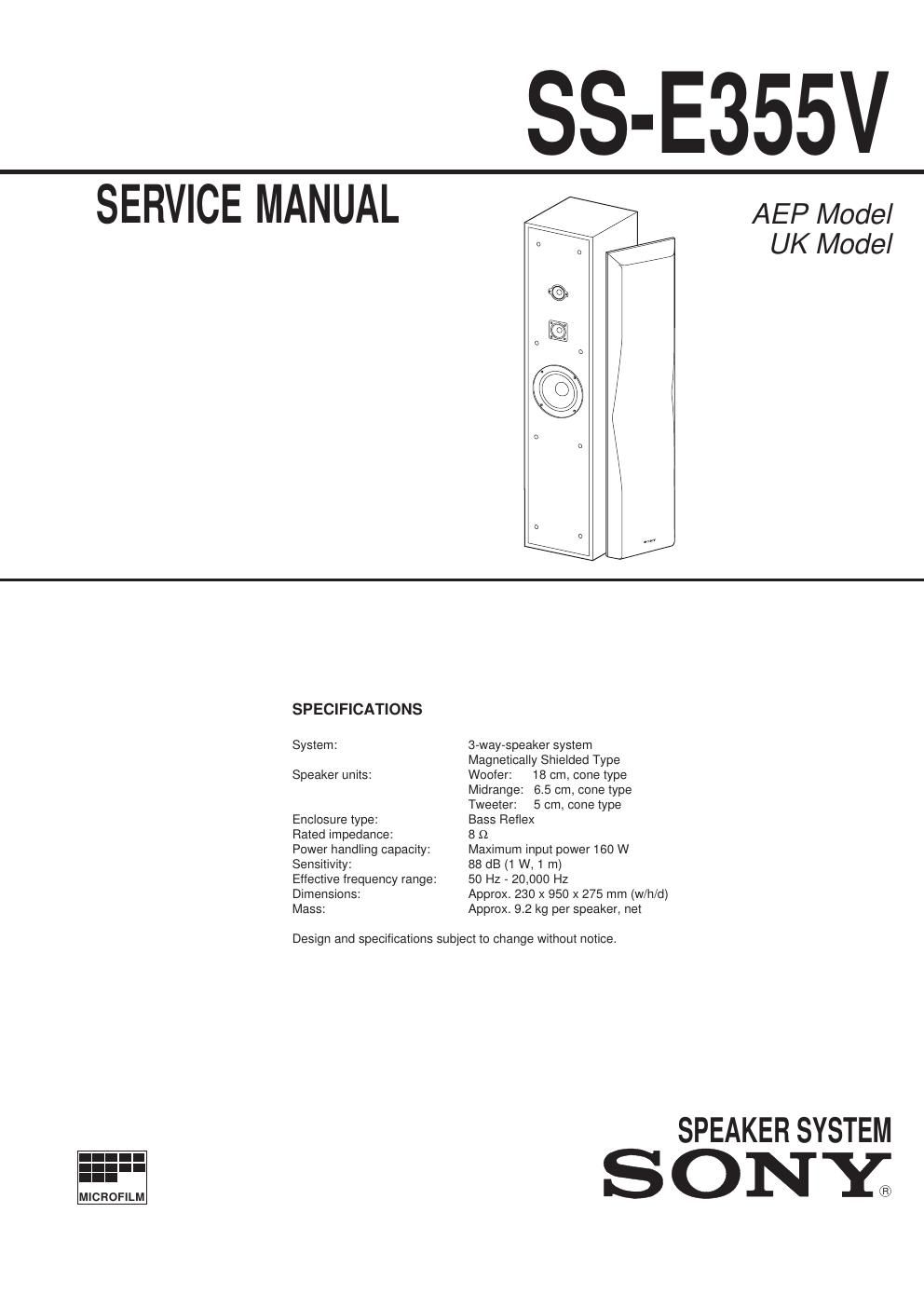

Sony ss e 355 v service manual
This is the 2 pages manual for sony ss e 355 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss e 355 v service manual (Ocr-read)
Page 1
- 2 -
SS-E355V
9-960-283-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Consumer A&V Products Company
Home A&V Division
English
95E7560-1
Printed in Germany
© 1995.5
Published by Home A&V Div. Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4946-309-1 SPEAKER CABINET ASSY
2 X-4945-183-1 GRILLE FRAME ASSY
3 1-589-690-11 MOUNTED P.C.B.
4 4-960-363-01 SCREW +B 3.5 X 16
SP1 1-504-706-11 SPEAKER (18 cm) (Woofer)
SP2 1-504-375-11 SPEAKER (6.5 cm) (Mid range)
SP3 1-504-378-11 SPEAKER (5 cm) (Tweeter) Ref. No. Part No. Description Remark
