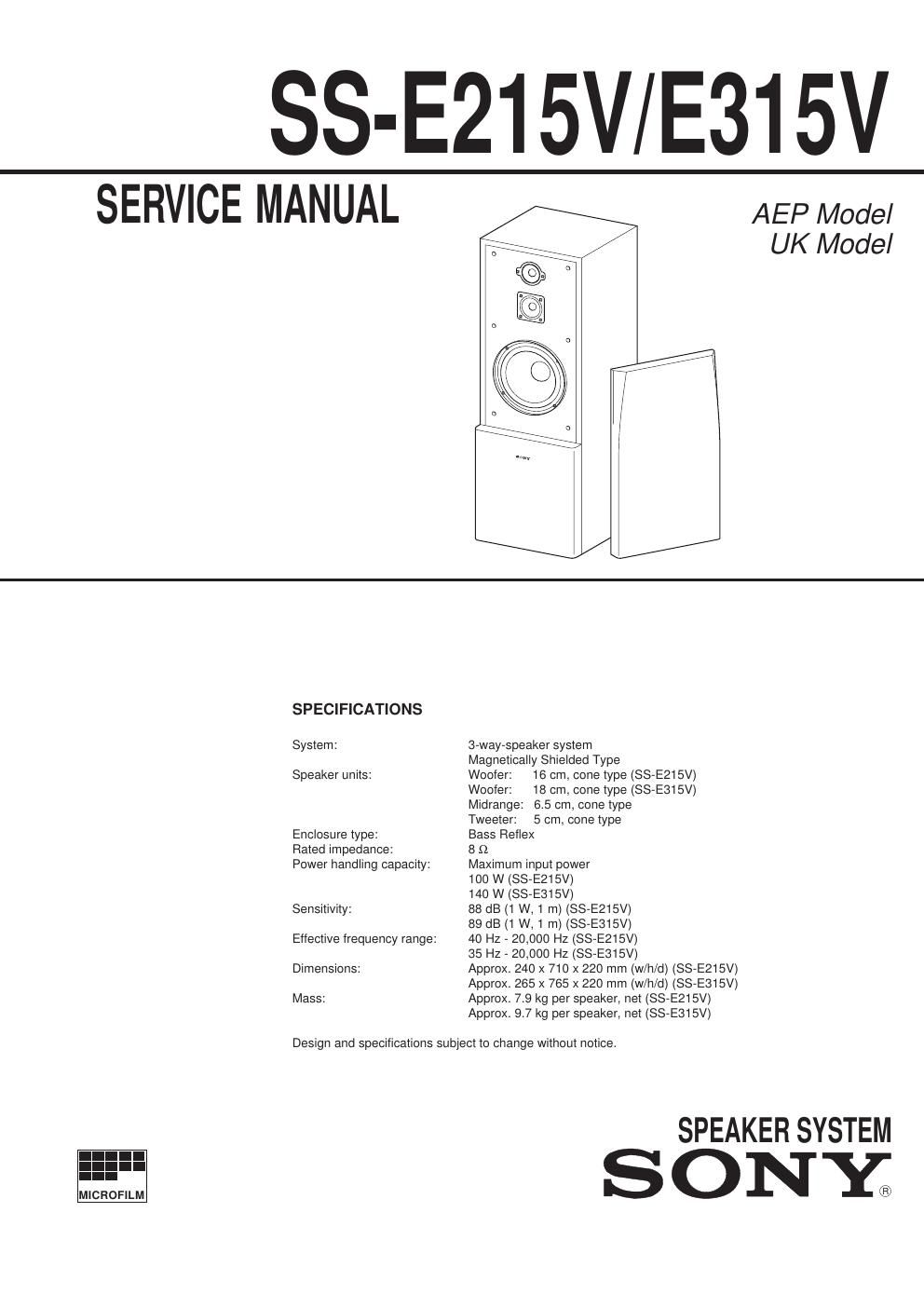

Sony ss e 215 v service manual
This is the 2 pages manual for sony ss e 215 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss e 215 v service manual (Ocr-read)
Page 1
- 2 -
SS-E215V/E315V
9-960-282-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Sony Corporation Consumer A&V Products Company
Home A&V Division
English
95E7560-1
Printed in Germany
© 1995.5
Published by Home A&V Div. Quality Engineering Dept.
Ref. No. Part No. Description Remark
1 X-4946-306-1 SPEAKER CABINET ASSY (SS-E215V)
X-4946-307-1 SPEAKER CABINET ASSY (SS-E315V)
2 X-4943-896-1 FRONT PANEL ASSY (SS-E215V)
X-4943-894-1 FRONT PANEL ASSY (SS-E315V)
3 1-589-568-11 MOUNTED P.C.B. (SS-E215V)
1-589-569-11 MOUNTED P.C.B. (SS-E315V)
4 4-960-363-01 SCREW +B 3.5 X 16
SP1 1-504-834-11 SPEAKER (16 cm) (Woofer) (SS-E215V)
1-504-706-11 SPEAKER (18 cm) (Woofer) (SS-E315V)
SP2 1-504-409-11 SPEAKER (6.5 cm) (Mid range)
SP3 1-504-408-11 SPEAKER (5 cm) (Tweeter) Ref. No. Part No. Description Remark
