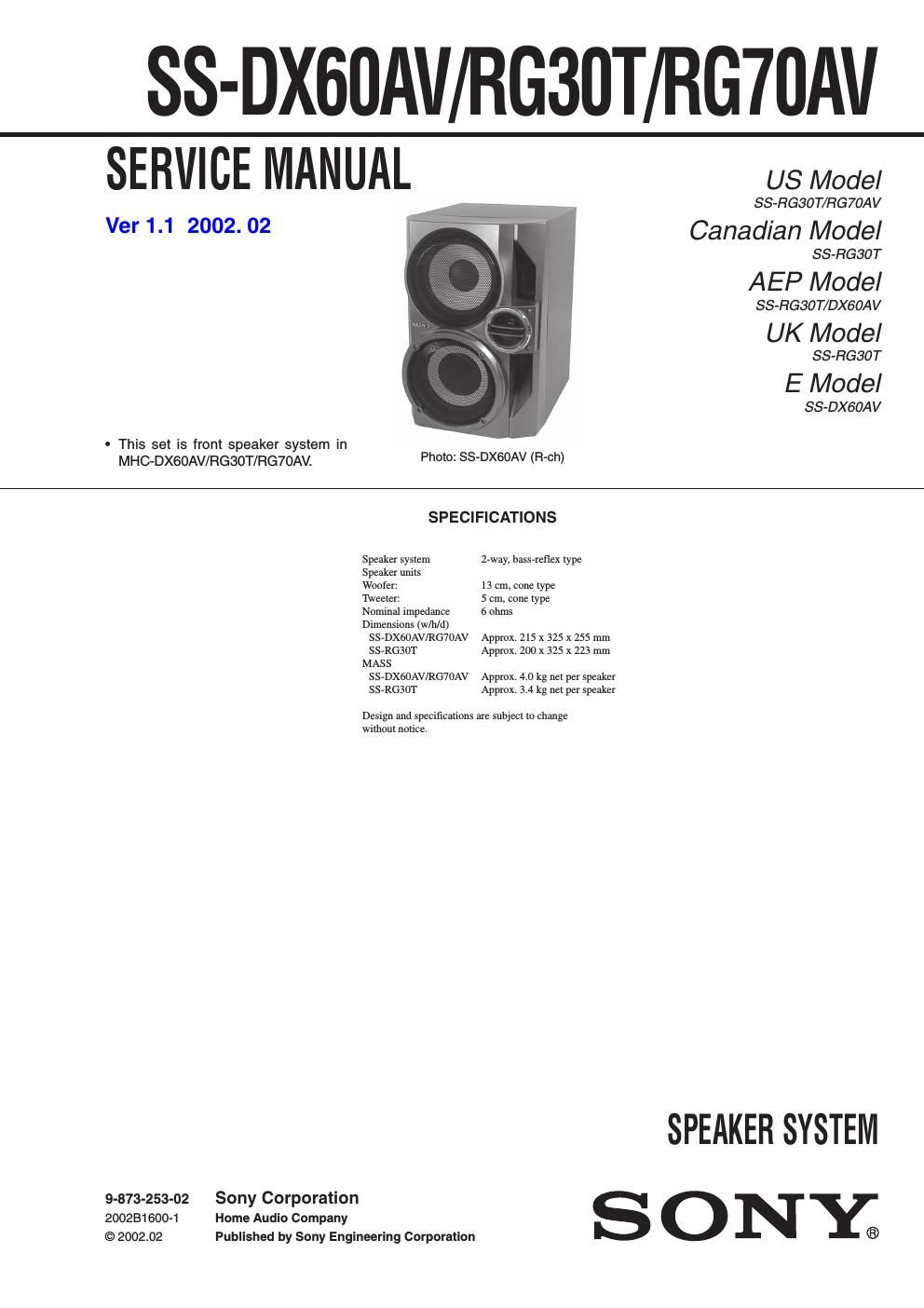

Sony ss dx 60 av service manual
This is the 4 pages manual for sony ss dx 60 av service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss dx 60 av service manual (Ocr-read)
Page 1
2 SS-DX60AV/RG30T/RG70 AV EXPLODED VIEW AND PA RTS LIST N O TE:- The mechanical parts with no reference num- ber in the exploded vi ews a re not supplied. 1 2 2 2 SP103 SP101 SP102 3 4 2 4 not supplied 5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4953-745-1 PANEL (L) ASS Y, FRONT (DX60 AV/RG70 AV) 1 X-4953-746-1 PANEL (R) ASS Y, FRONT (DX60 AV/RG70 AV) 2 4-991-133-01 SCREW (3.5X16) (DX60 AV/RG70 AV) 3 X-4953-747-1 CABINET (L) ASS Y, SPEAKER (DX60AV/RG70 AV) 3 X-4953-748-1 CABINET (R) ASS Y, SPEAKER (DX60AV/RG70 AV) 4 4-234-052-01 PACKING (DUCT) (DX60 AV/RG70 AV) 5 A-4735-383-A SPEAKER ASSY (L) (RG30T) 5 A-4735-384-A SPEAKER ASSY (R) (RG30T) SP101 1-544-785-11 SPEAKER (13cm) (DX60 AV/RG70 AV) SP102 1-544-786-11 SPEAKER (13cm) (DX60 AV/RG70 AV) SP103 1-544-787-11 SPEAKER (5cm) (DX60 AV/RG70 AV) R ch V er 1.1 2002. 02
Page 2
3 SS-DX60AV/RG30T/RG70AV MEMO
