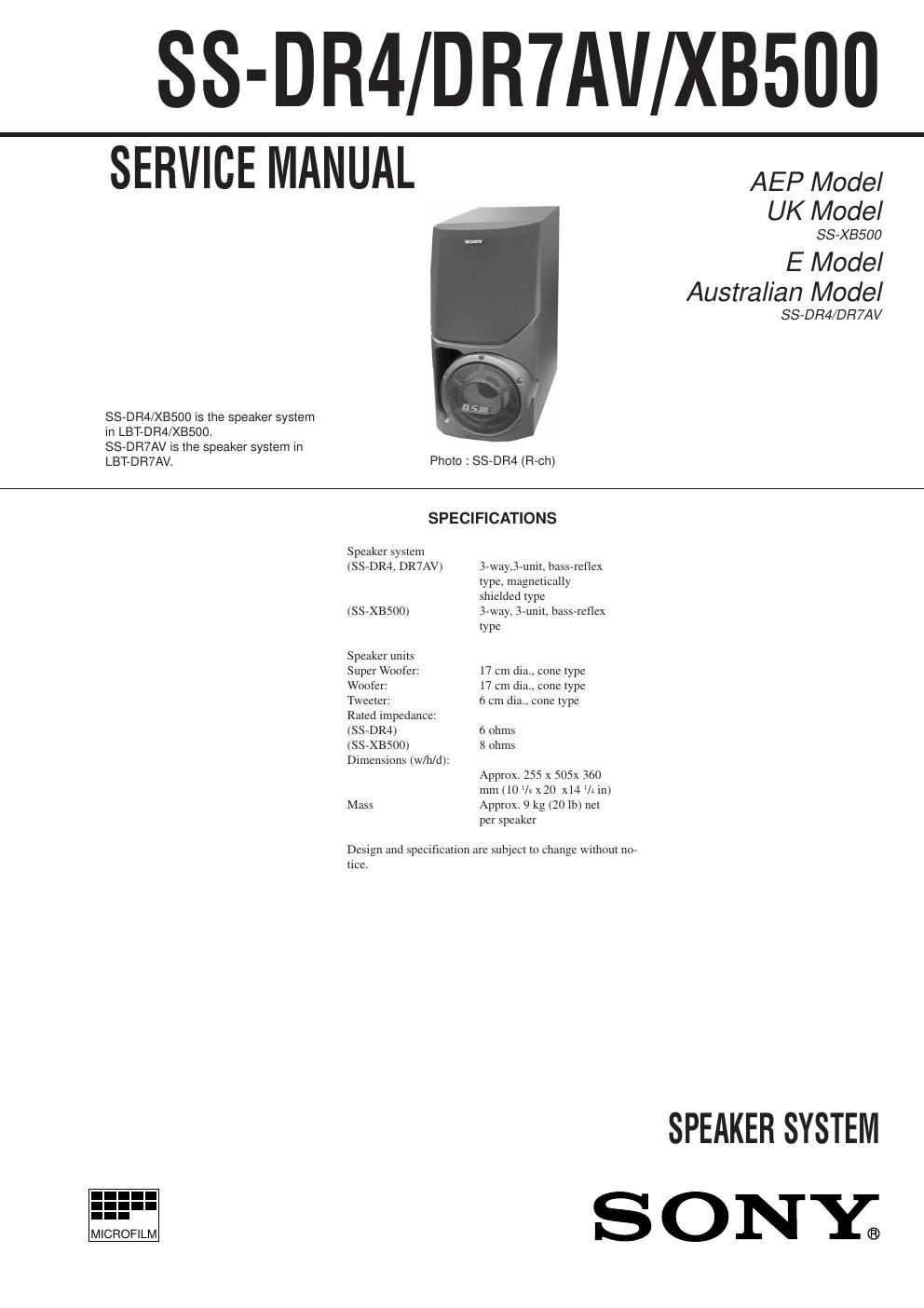

Sony ss dr 4 service manual

Page 1

Ð 2 Ð NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST 1 X-4950-844-1 FRAME (L) ASSY, GRILLE 1 X-4950-845-1 FRAME (R) ASSY, GRILLE 2 X-4950-842-1 PANEL (L) ASSY, FRONT 2 X-4950-843-1 PANEL (R) ASSY, FRONT 3 7-865-162-21 SCREW +P 4x14 TYPE2 SLIT 4 7-865-659-79 SCREW +BVTP 4x8 TYPE2 N-S 5 4-215-758-01 PACKING, DUCT *6 A-4411-365-A CABINET (L) ASSY, SPEAKER *6 A-4411-366-A CABINET (R) ASSY, SPEAKER 7 1-537-332-11 TERMINAL BOARD 8 7-685-662-79 SCREW +BVTP 4x14 TYPE2 N-SSP1 1-529-237-11 SPEAKER (16cm) (XB500) SP1 1-529-277-11 SPEAKER (17cm) (DR4/DR7AV) SP2 1-529-236-11 SPEAKER (16cm) (XB500) SP2 1-529-278-11 SPEAKER (17cm) (DR4/DR7AV) SP3 1-529-238-11 SPEAKER (6cm) (XB500) SP3 1-529-332-11 SPEAKER (6cm) (DR4/DR7AV) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-775-512-21 CORD, SPEAKER CONNECTION 4-210-254-01 CUSHION (FOOT) SS-DR4/DR7AV/XB500 Sony Corporation Home A&V Products Company 9-928-813-11 99B091671-1 Printed in Japan © 1999. 2 Published by Quality Assurance Dept. (Shinagawa) L-ch 1 2 33 6 4 57 not supplied SP2 SP1SP3 8
