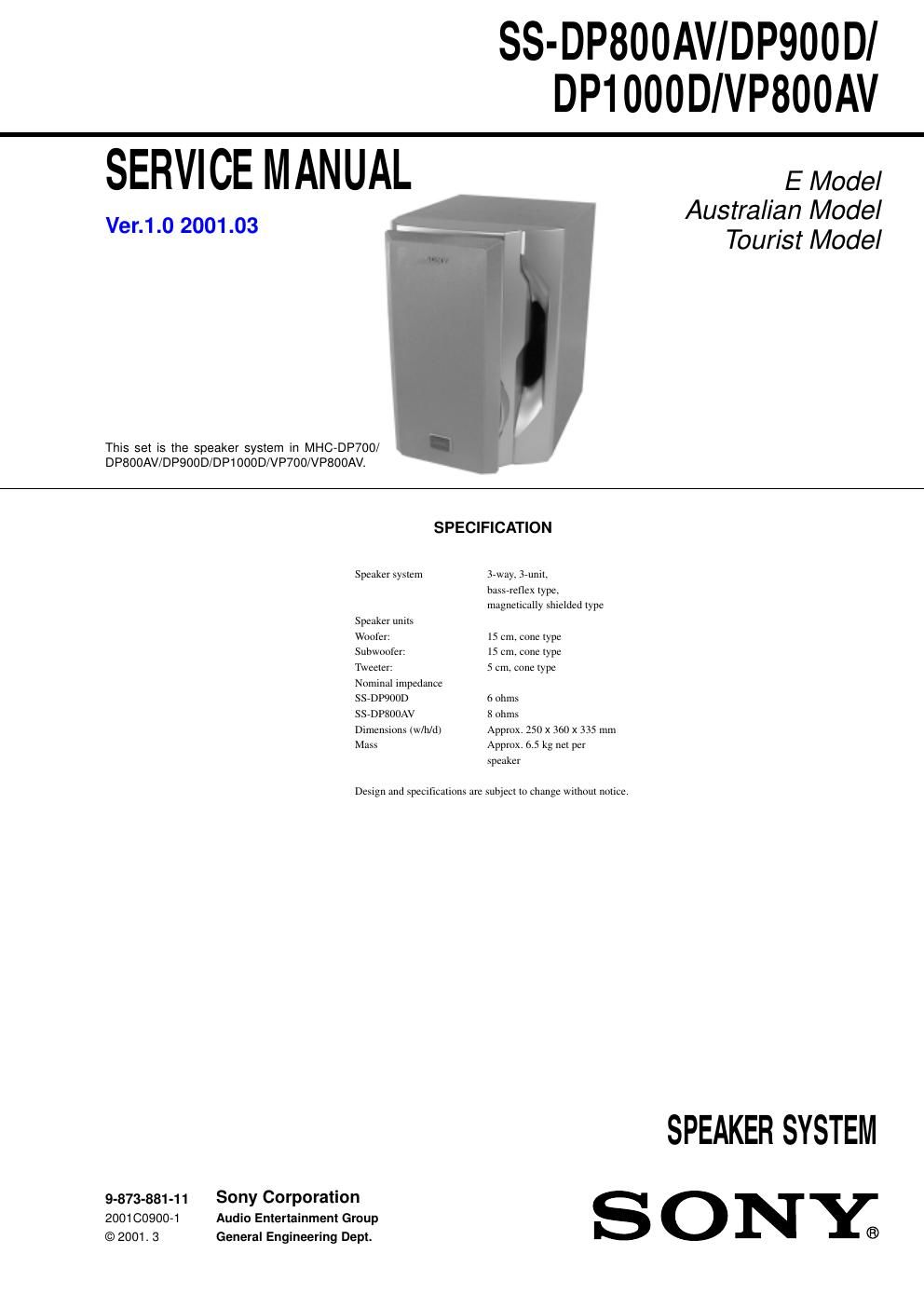

Sony ss dp 800 av service manual
This is the 4 pages manual for sony ss dp 800 av service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss dp 800 av service manual (Ocr-read)
Page 1
2 Ref. No. Part No. Description Remark ––––––– ––––––– ––––––––– –––––– EXPLODED VIEW AND PARTS LIST NOTE:- Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. SS-DP800AV/DP900D/DP1000D/VP800AV 1 SP1 SP3 SP2 2 2 2 2 35 4 4 4 44 48 7910 6 1 A-4412-625-A FRAME ASSY, GRILLE *2 4-963-075-01 CATCHER 3 A-2004-832-A PANEL (L) ASSY, FRONT (DP900D:E/DP1000D:E,EA,MX) 3 A-2004-833-A PANEL (R) ASSY, FRONT (DP900D:E/DP1000D:E,EA,MX) 4 4-874-614-21 SCREW (4) (3.5X14), TAPPING 5 4-232-099-01 PACKING, DUCT 6 1-757-575-11 CORD (WITH CONNECTOR) 7 1-792-577-11 CORD (B) 8 A-4412-627-A CABINET (L) ASSY, SPEAKER (DP900D:E/DP1000D:E,EA,MX) 8 A-4412-628-A CABINET (R) ASSY, SPEAKER (DP900D:E/DP1000D:E,EA,MX)Ref. No. Part No. Description Remark ––––––– ––––––– ––––––––– –––––– 9 1-792-576-11 CORD (A) 10 1-537-332-11 TERMINAL BOARD SP1 1-529-950-11 SPEAKER (15CM) SP2 1-529-969-11 SPEAKER (15CM) SP3 1-529-951-11 SPEAKER (5CM) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-558-848-11CORD, SPEAKER (3M)-Abbreviation EA : Saudi Arabia model TH : Thai model MX : Mexican model
Page 2
3 SS-DP800AV/DP900D/DP1000D/VP800AV MEMO
