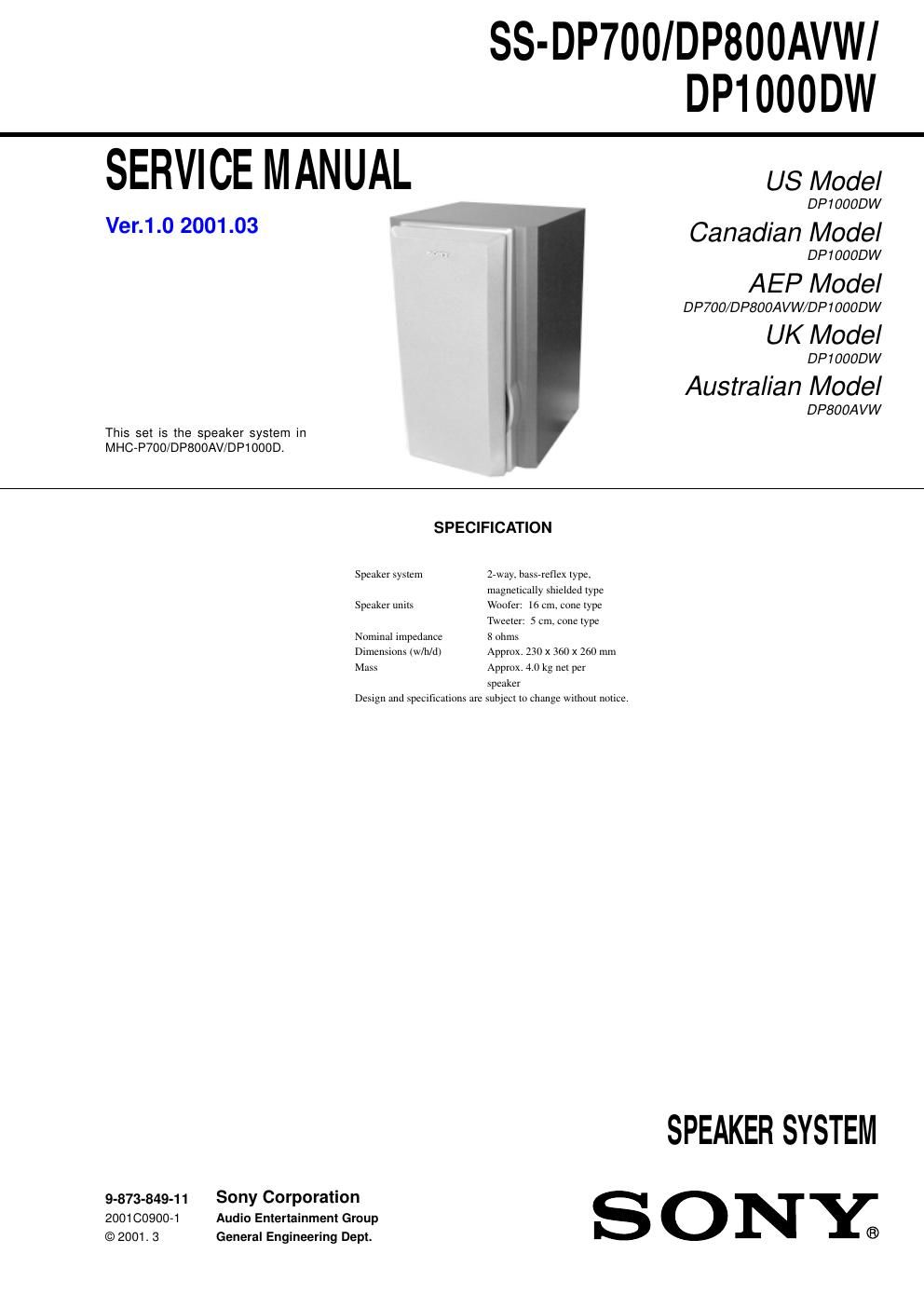

Page 1
2 Ref. No. Part No. Description Remark ––––––– ––––––– ––––––––– –––––– EXPLODED VIEW AND PARTS LIST NOTE:- Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. SS-DP700/DP800AVW/DP1000DW 12 3 3 4 4 45 7 6 not supplied not supplied SP1 SP2 8 1 A-4412-746-A FRAME ASSY, GRILLE 2 A-4412-747-A PANEL ASSY, FRONT *3 4-963-075-01 CATCHER 4 4-874-614-21 SCREW (4) (3.5X14), TAPPING 5 A-4412-748-A CABINET ASSY, SPEAKER 6 1-537-332-11 TERMINAL BOARD 7 1-757-627-11 CORD (WITH C) 8 4-232-728-01 PACKING SP-1 1-529-985-11 SPEAKER (16CM) SP-2 1-529-984-11 SPEAKER (5CM)Ref. No. Part No. Description Remark ––––––– ––––––– ––––––––– –––––– ACCESSORIES & PACKING MATERIALS ******************************* 1-558-848-11 CORD, SPEAKER (2.5M) 4-232-734-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, TURKISH, POLISH, HUNGARIAN, GREEK, FINNISH, DANISH, CZECH) (DP700, DP800AVW, DP1000DW:AEP)
Page 2
3 SS-DP700/DP800AVW/DP1000DW MEMO
