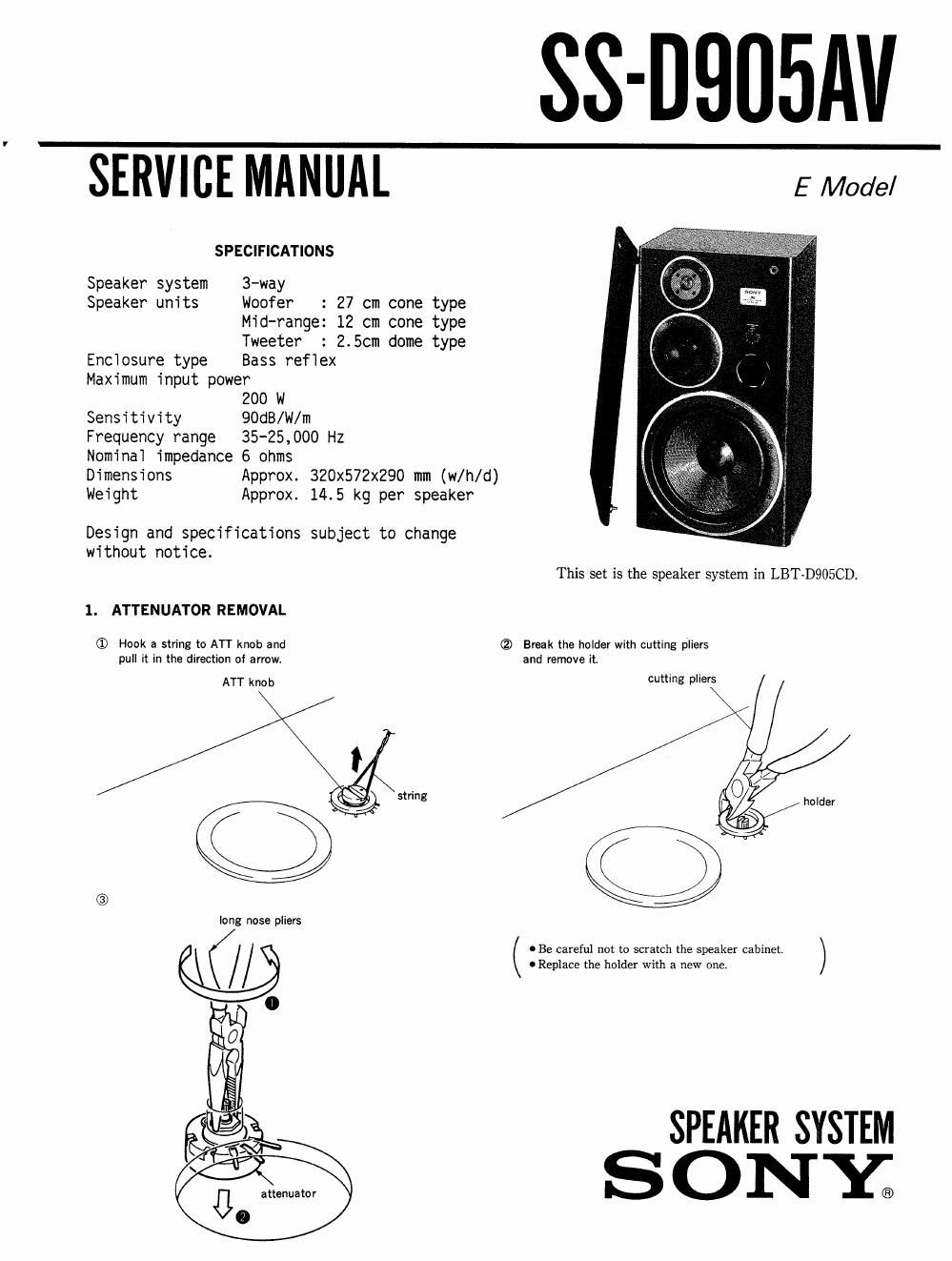

Page 1
SS-DQUSAV
SERVICE MANUAL E Model
SPECIFICATIONS
Speaker system 3-way
Speaker units Woofer : 27 cm cone type
Mid-range: 12 cm cone type
Tweeter : 2.5cm dome type
Enclosure type Bass reflex
Maximum input power
200 w
Sensitivity 90dB/W/m
Frequency range 35e25,000 Hz
Nominal impedance 6 ohms
Dimensions Approx. 320x572x290 mm (w/h/d)
Weight Approx. 14.5 kg per speaker
Design and specifications subject to change
1. ATTENUATOR REMOVAL
® Hook 2 string to ATT knob and ® Break the holder with cutting pliers
holder
long nose pliers
OBe careful not to scratch the speaker cabinet.
SPEAKER SYSTEM
without notice.
This set is the speaker system in LBT
pull it in the direction oi arrow. and remove it,
ATT knob cutting pliers
/////////////////:>x<::::ég§%g§f:
0 Replace the holder with a new one,
S 0 NE
Page 2
SS-D905AV
2. WIRING DIAGRAM
SP3
TWEEYER
ETWORK
BOARD
{N
Note:
0 All capacitors are in F unless otherwise noted pF: mi 50WV or less
are not indicated except for electrolytics and tantalums
0 All resistors are in n and /.W or less unless otherwise specified
