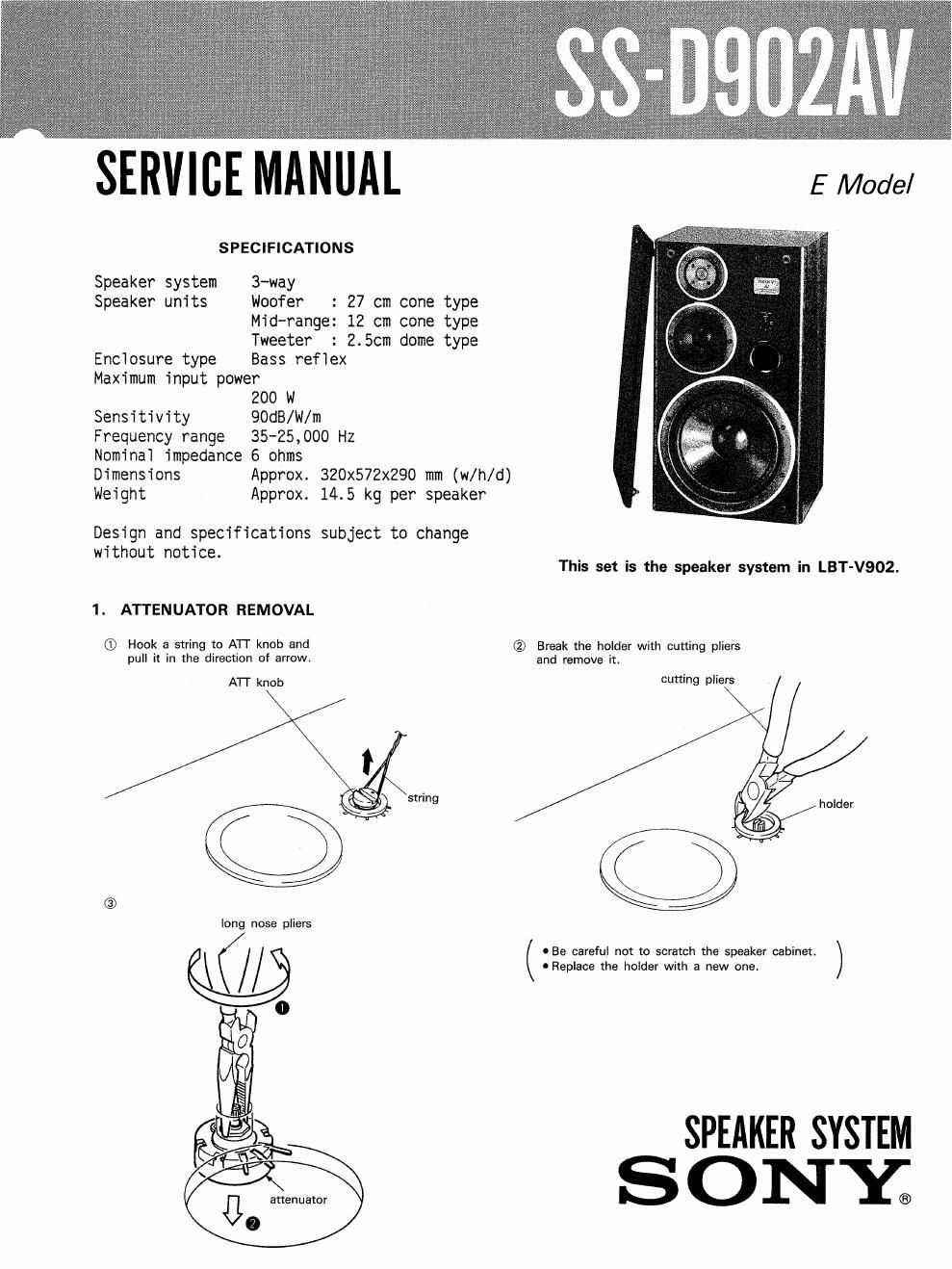

Page 1
SERVICE MANUAL EMode/
SPECIFICATIONS
Speaker system 3-way
Speaker units Woofer : 27 cm cone type
Mid-range: 12 cm cone type
Tweeter : 2.5cm dome type
Enclosure type Bess reflex
Maximum input power
200 w
Sensitivity 90dB/W/m
Frequency range 35-25,000 Hz
Nominal impedance 6 ohms
Dimensions Approx. 320x572x290 mm (w/h/d)
Weight Approx. 14.5 kg per speaker
Design and specifications subject to change
without notice. . _
ThIS set Is the speaker system in LBT-V902.
1. ATTEN UATOR REMOVAL
© HOOk a String to ATI' knob and ® Break the holder with cutting pliers
pull it in the direction of arrow, and remove it,
A'l'l' knob cutting pliers
holder
W
©
long nose pliers
0 Be careful not to scratch the speaker cabinet.
0 Replace the holder with a new one
SPEAKER SYSTEM
S 0 NY?»
a atten uator
