Page 1

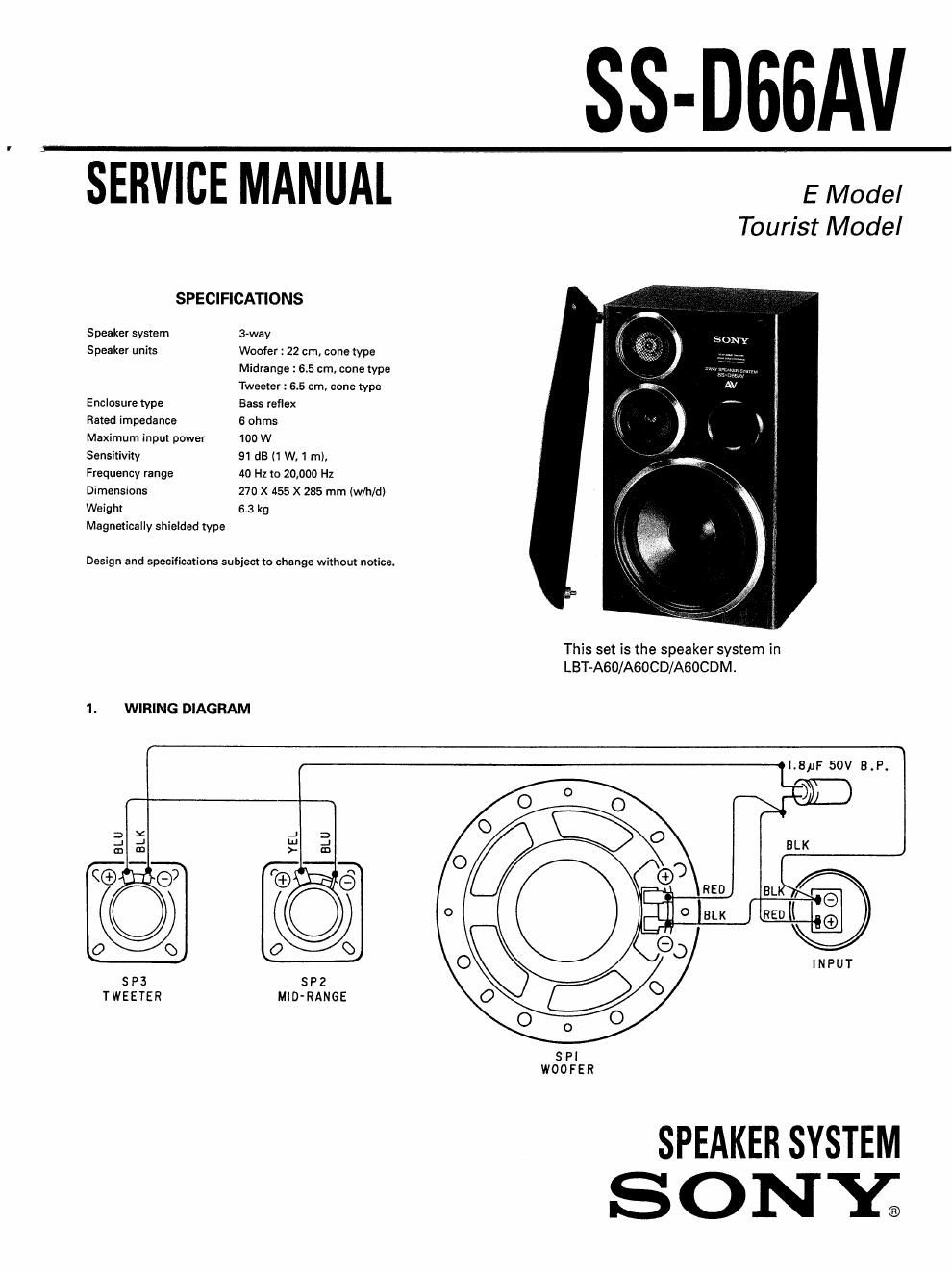

S-DBGAV 1

SERVICE MANUAL EModel

Tourist Model
SPECIFICATIONS
Speakei system 3-way
Speaker units Woofer : 22 cm, cone type

Midrange :6.5 cm, cone type
Tweeter: 6.5 cm, cone type

Enclosure type Bass reflex

Rama impedance 6 ohms

Maximum input power 100 W

Sensifivity 91 dB (1 W, 1 mi,
Frequency range 40 Hz to 20,000 Hz
Dimensions 270 X 455 X 285 mm Iw/h/d)
Weight 6.3 kg

Magnetically shie|ded type

Design and specifications subject to change withaut notice.

This set is the speaker system in
LBT-A60/A60CD/A60CDM.

1. WIRING DIAGRAM

LapF 50V 8.1.

3 x
_, 4
m a:
<6 G7
O Q
S P3 SP2
TWEETER MIDRANGE

SPEAKER SYSTEM
SONY;

Page 2

SS-D66AV

2. EXPLODED VIEW AND PARTS LIST

NOTE:

- Items marked "" are not stocked since they are
seldom required for routlne service. Some delay
should beamicipated when orderingthese items.

- The mechanical parts with no reference number
in the exploded views are not supplied.

Ref. No.

Part No.

Eescription

1 X-4942-366-1 FRAWS ASSY, GRILLE

Z X-ABAZ-TSA-l FRAME (W) ASSY. ORNAMENT
3 4-923-040-01 SCREW (4X16), TAPPING

4 X-494Z-596-1 FRAME (M) ASSY, ORNAMENTAL

5 4'874-614-21 SCREW (4) (3.5X14), TAPPING
6 X-494Z-753-l FRAME (T) ASSY, ORNAMENT

7 1-537-145-11 TERMINAL BOARD (SPEAKER)

8 X-4942-373-1 CABINET (L) ASSY, SPEAKER
8 X-4942-374-1 CABINET (R) ASSY. SPEAKER

9-957-1 60- 1 1

Remarks
SPl
SP2
SP3

»

Sony Corporation

Audio Group
_ 2 _

Ref. No.

not supplied
Part No. Description Remarks
1-544-751-11 SPEAKER (ZOCM)
1-544-730-11 SPEAKER (GCM)
1-544-731-11 SPEAKER (GCM)
ACCESSORIES & PACKING MATERIAIS
HflnttflfltflfliflHtflflfl
4-953-042-01 CUSHION (UPPER)
4-953-043-01 CUSHION (LOWER)
4-953-048-01 INDIVIDUAL CARTON
English
92E1914-1
Printed in Japan
©1992.5

Published by Customer Relations and Service Group
