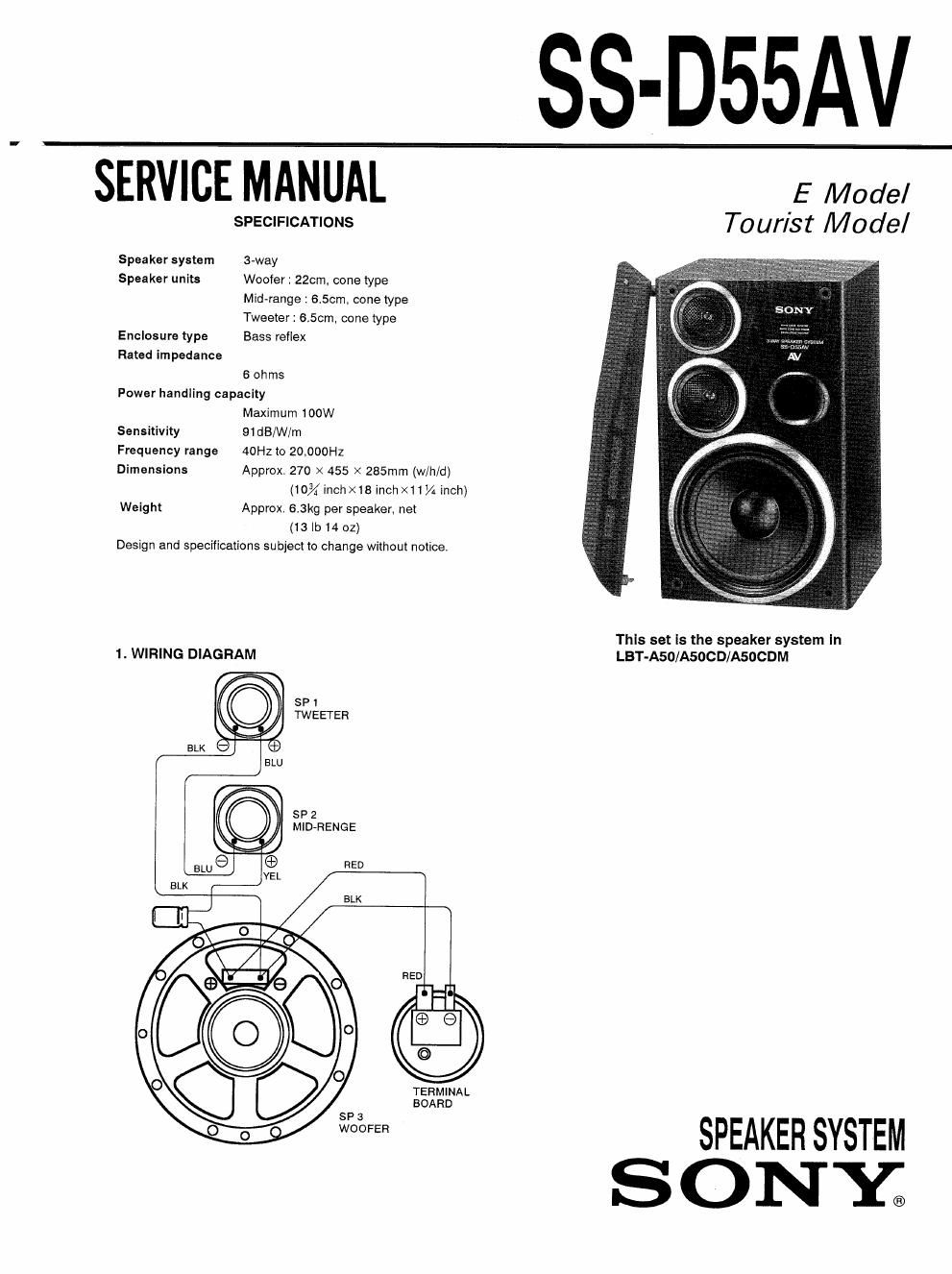

SS-D55AV ,

SERVICE MANUAL

SPECIFICATIONS

Speaker system 3-way
Speaker units Woofer: 220m. cone type
Mid-range : 6.5cm. cone type
Tweeter: 655m. cone type
Enclosure type Bass reflex
Rated impedance
6 ohms
Power handling capacity
Maximum 100W

Sensitivity 91dB/W/m
Frequency range 40Hz to 20,000Hz
Dimensions Approx. 270 x 455 X 285mm (w/h/d)
(10% inch X18inchx11I/4 inch)
Weight Approx, 6.3kg per speaker, net
(13 lb 14 oz)

Design and specifications subject to change without notice.

1. WIRING DIAGRAM

SP 1
TWEETER

SP 2
MID-RENGE

RED

TERMINAL
BOARD

3P 3
WOOFER

E Model
Tourist Model

This set Is the speaker system In
LBT-Aso/AsocD/ASOCDM

SPEAKER SYSTEM
S ONY;

Page 2

SS-D55AV

2. EXPLODED VIEW

NOTE:

OThe mechanical parts with no reference
number in the exploded views are not
supplied

OItems marked W" are not stocked

since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items,

1 X~494Z-366-1
2 X-4942-595-1
3 X-49423681
4 X-4942~372-1
5 44374-61441

6 X-4942-370'1
6 X>4942-371-1
7 1-5377145-11
8 44323-04041
9 1-575-637-11

SP1 1544-730-11

SP2 1-54443011
SP3 1-544-75111

9-957-068-1 1

Remark

Description

FRAME ASSY, GRILLE

FRAME (W) ASSY, ORNAMENTAL
FRAME (III) ASSY, ORNAMENTAL
FRAME (T) ASSY, ORNAMENTAL
SCREW (4) (3.5Xl4), TAPPING

CABINET (L) ASSY, SPEAKER
CABINET (R) ASSY, SPEAKER
TERMINAL BOARD (SPEAKER)
SCREW (4X16). TAPPING
CORD, CONNECTION

SPEAKER (6CII)
SPEAKER (60M)
SPEAKER (ZOCII)

Sony Corporation
Audio Group

_2_

no! suppllsd

Englluh

92D02M-1

Printed in Japan

©I992.4

Publlshed by customer Flaiatlona and Service Group
