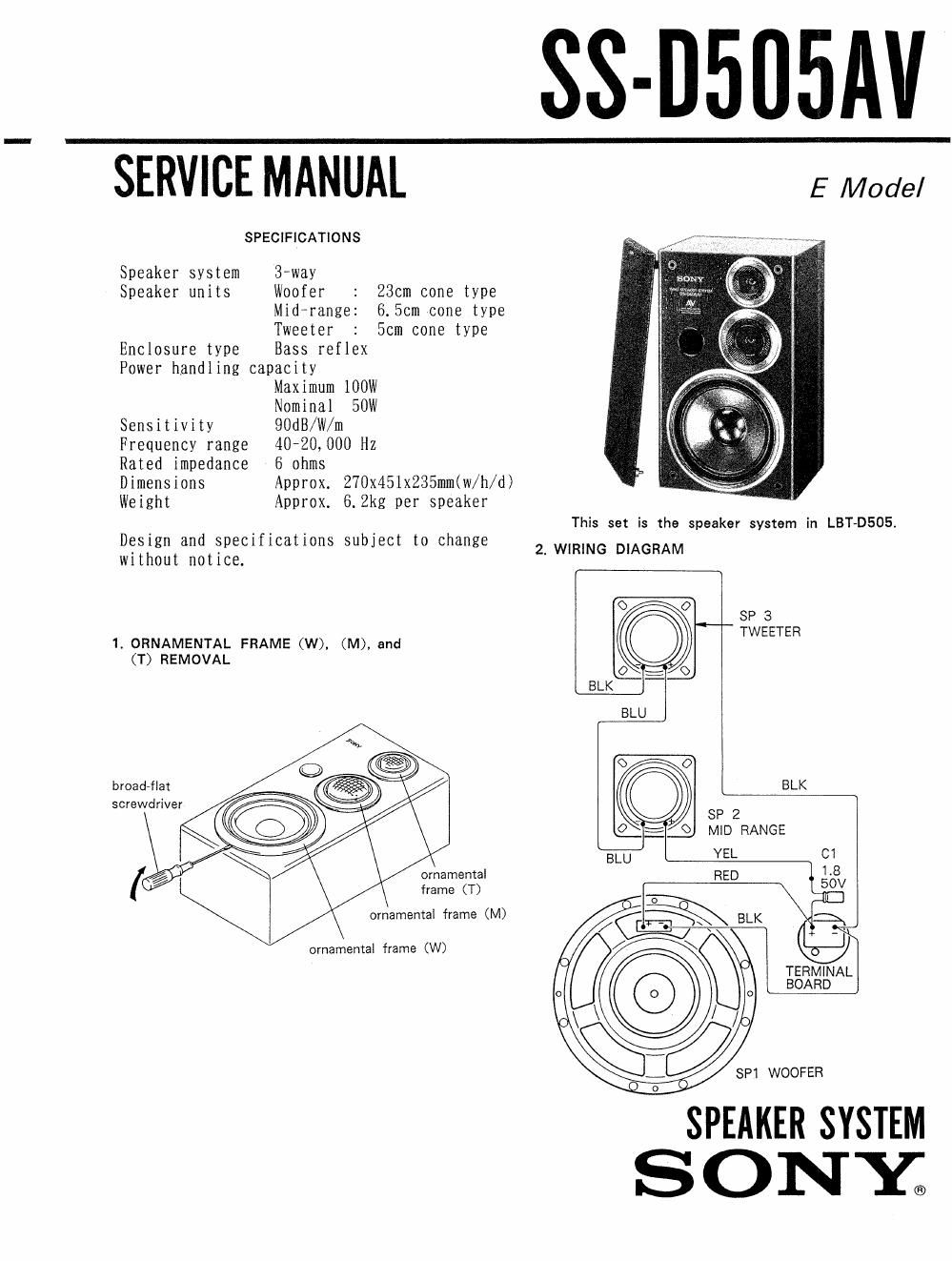

Page 1

SERVICE MANUAL

SPECIFICATIONS

Speaker system
Speaker units

Enclosure type

3'way

Woofer : 230m cone type
Mid-range: 6.5cm cone type
Tweeter : 5cm cone type

Bass reflex

Power handling capacity

Sensitivity
Frequency range
Rated impedance
Dimensions
Weight

Maximum 100W

Nominal 50W

QOdB/W/m

40-20,000 Hz

6 ohms

Approx. 270x451x235mm(w/h/d)
Approx. 6.2kg per speaker

Design and specifications subject to change

without notice

1. ORNAMENTAL FRAME (W), (M), and

(T) REMOVAL

broad-flat
screwdriver

ornamental
frame (T)

ornamental frame (M)

ornamental frame (W)

S-D505AV

E Model

This set is the speaker system in LBT«DSOS.
2. WIRING DIAGRAM

SP 3
TWEETER

TERMINAL
BOARD

SPEAKER SYSTEM

SONY;

Page 2

SS-DSOSAV

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 Items marked "*" are not stocked
since they are seldom required lor
routine service. Some delay should be
anticipated when ordering these items.

. The mechanical parts with no reference
number in the exploded views are not
supplied.

Part No. Description

I X-494I-100-i FRAME ASSY. GRILLE

2 X-4941-389-1 FRAME (W) ASSV. ORNAMENTAL
3 X-4941-388-1 FRAME (M) ASSY, ORNAMENTAL
4 X-4941-387-I FRAME (T) ASSY. ORNAMENTAI.
5 1-575-637-11 CORD. CONNECTION

Ii I-537-I45-II TERMINAL BOARD (SPEAKER)

7 X-4941-390-I CABINET (L) ASSY. SPEAKER
7 X-494I-391-1 CABINET (R) ASSY. SPEAKER
8 A-Bil-SIA-Zi SCREW (4) (3.5X14). TAPPING
9 4-923-040-01 SCREW (4X16). TAPPING
9-956-412-11

Remark

Description Remark

SPI FEM-46241 SPEAKER (ZOCM)
SP2 1-544-451-11 SPEAKER (SCM)
SP3 I-544-461-1I SPEAKER ($6M)

ACCESSORV 8: PACKING MATERIAL
iii1i1iHHtHHiHHHfiHflH

at 4-926-483-01 CUSHION
t 4-934-225-DI CUSHION

Sony Corporation
Audio Group

_2¥

English

91D0214ri

Printed in Japan

©1991i4

Published by Customer Relations and Service Group
