Page 1

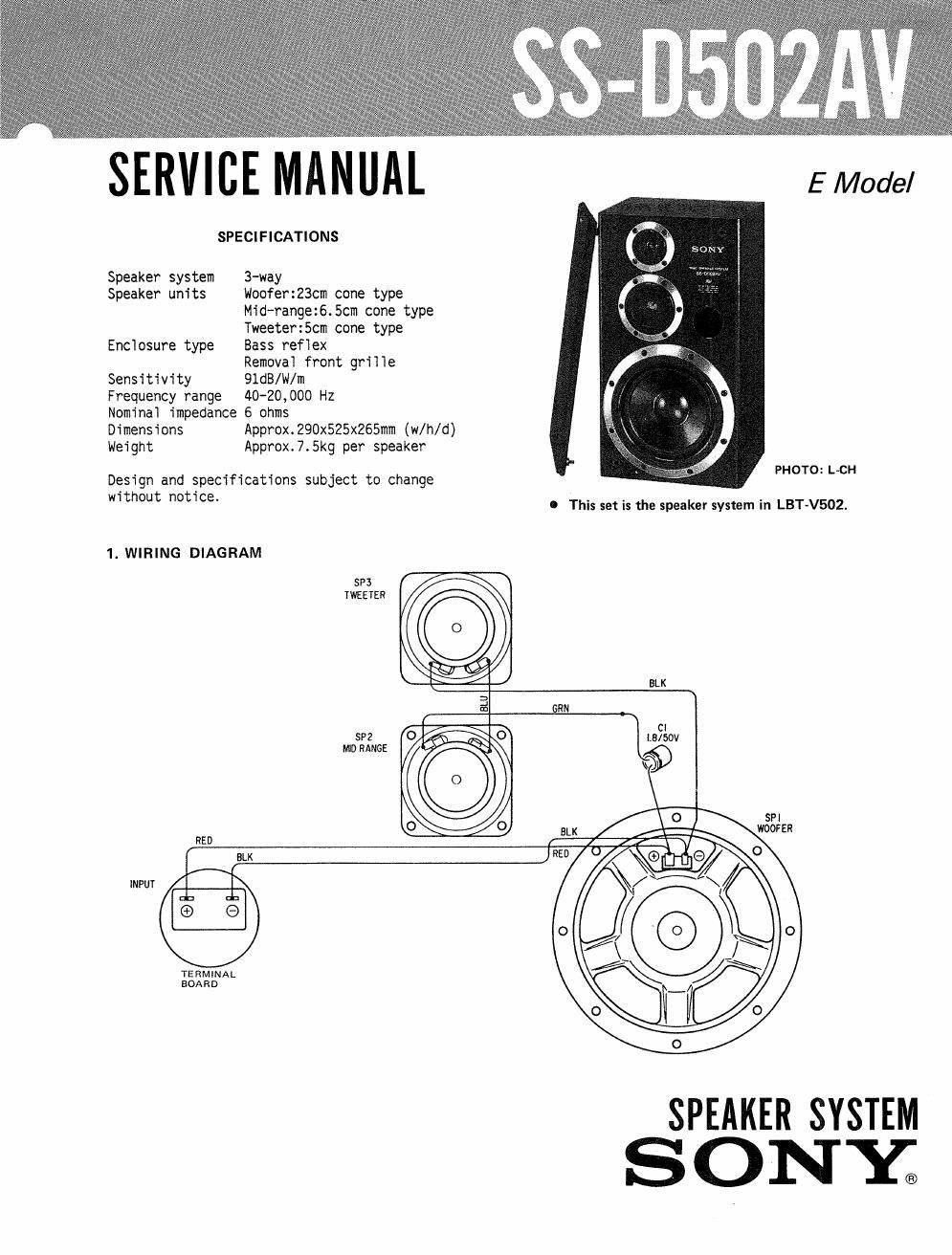

SERVICE MANUAL EMode/

SPECIFICATIONS

Speaker system 3-way
Speaker units Wooferz23cm cone type
Mid-range:6.5cm cone type
Tweeterz5cm cone type
Enc1osure type Bass ref1ex
Removal front gri11e
Sensitivity 91dB/W/m
Frequency range 40-20,000 Hz
Nomina] impedance 6 ohms
Dimensions Approx.290x525x265mm (w/h/d)
Weight Approx.7.5kg per speaker

PHOTO: L-CH

Design and specifications subject to change

MthOUt notice. 0 This set is the speaker system in LBT-V502.

1. WIRING DIAGRAM

MID RANGE

( mx
INPUT __

6 e

TERMINAL

BOARD

SPEAKER SYSTEM
SONY;

Page 2

SS-D502AV

2. EXPLODED VIEW AND PARTS LIST

NOTE:

0 The mechanical parts with no reference
number in the exploded views are not

supplied.

0 Items marked ~k" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

2
0

Part No.

X-4923-052-1
X-4926-426-l
X-4926-425-l
X-4926-424-l
X-4926-423-l

X-4926-427-l
4-929-107-11
4429-! 06-1]
4-923-040-01

uoooxlos mwa I

9-955-884-1 1

Description Remarks No.

FRAME ASSY, GRILLE 901

FRAME (w) ASSY, ORNAMENTAL 902

FRAME (M) ASSY, ORNAMENTAL

FRAME (T) ASSY, ORNAMENTAL SP1

CABINET (L) ASSY. SPEAKER SP3
SP

CABINET (R) ASSV, SPEAKER

SCREW (5)08), TAPPING
SCREW (4X18), TAPPING
SCREW (4X16), TAPPING

Sony Corporation

Audio Group
_ 2 _

Part N0.

1-575-637-11
1-537-145-11

1-544-310-11
1-544-311-11
l-544-3ll-ll

Description

CORD, counzqnon
TERMINAL BOARD (SPEAKER)

SPEAKER (200M)
SPEAKER (643M)
SPEAKER (GCM)

ACCESSORY & PACKING MATERIAL

*4-926-488-01
*4-936-562-01

CUSHION
IND l V I DUAL CARTON
