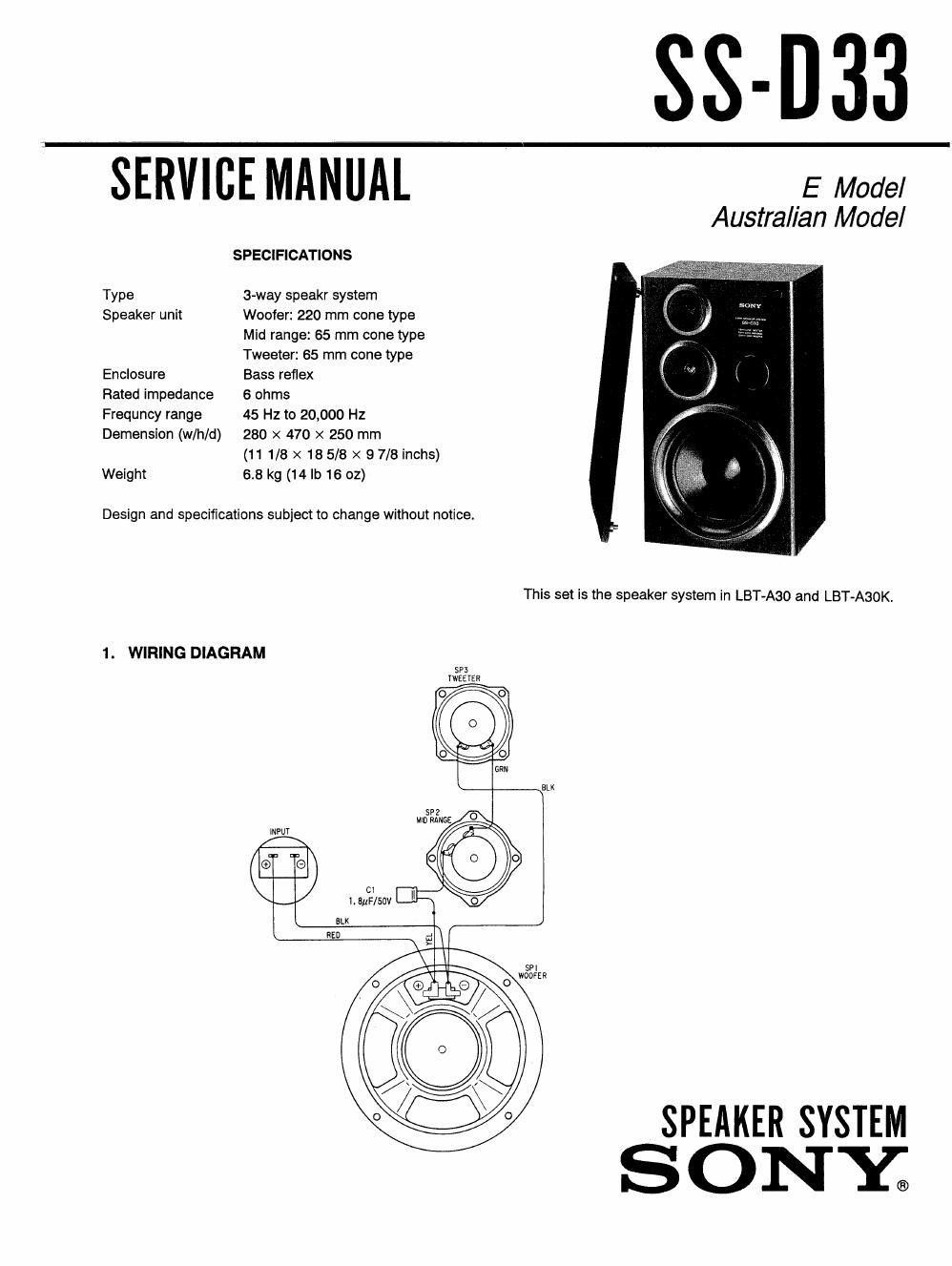

Page 1
SS-D33
SERVICE MANUAL
SPEClFICATIONS
Type 3-way speakr system
Speaker unit Woofer: 220 mm cone type
Mid range: 65 mm cone type
Tweeter: 65 mm cone type
Enclosure Bass reflex
Rated impedance 6 ohms
Frequncy range 45 Hz to 20,000 Hz
Demension (w/h/d) 280 x 470 x 250 mm
(11 1/8 X 185/8 x 97/8 inchs)
Weigh! 6.8 kg (14 lb 16 02)
Design and specificafions subject to change without notice.
E Model
Australian Model
This set is the speaker system in LBT-Aao and LBT-A30K.
1. WIRING DIAGRAM
SP3
TWEETER
ELK
SP 2
M10 RANGE
INPUT
01 I!
I 1 BuF/Sov
BLK
RED
Vfl
SPEAKER SYSTEM
SONY;
